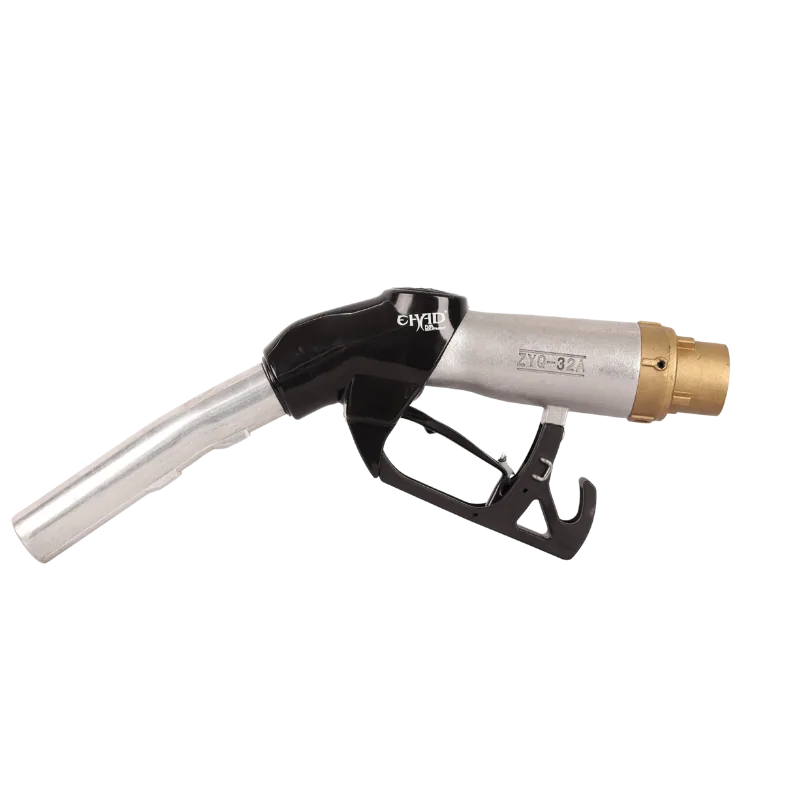

High-Flow Auto Fuel Nozzle, 32 mm Spout, 190 L/min

Description

Overview

This 32 mm automatic nozzle is for high-volume diesel filling, rated from 0 to 190 L/min, with auto-stop that cuts in at a low shut-off flow of 25 to 40 L/min. It is the biggest spout in our light nozzle range and the one to choose when a standard 1-inch nozzle slows down a truck or loader fill. The inlet is an M54 x 1.5 female thread with a swivel.

Key features

• Flow range 0 to 190 L/min
• 32 mm spout for large truck and machine tanks
• M54 x 1.5 female inlet, so check your hose end before ordering
• Swivel included to take the twist out of heavy hose
• Viton and NBR seals, automatic shut-off

Where it works

Mine fuelling bays on the Mpumalanga coal belt and the Limpopo platinum and coal sites use nozzles like this to turn trucks around quickly. Transport depots and bulk farm tanks in the Free State benefit too, as long as the pump can deliver the flow. Browse the full fuel nozzles range, or add a spare 16 mm replacement spout and a grease nozzle for the workshop side.

What’s in the box

• 1 x 32 mm automatic fuel nozzle with swivel

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 3.2 kg this nozzle falls in the up to 30 kg delivery band when ordered alone. Ask us for the warranty terms on this model.
