10SP135/2A 10-inch stainless steel borehole pump end, 18.5 kW, 47 m head

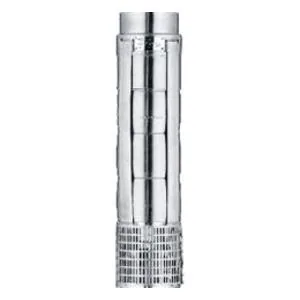

10SP135/2A borehole pump set with water-filled 6-inch motor

10SP135/2A 10-Inch Borehole Pump, 18.5 kW, 47 m Max Head

SKU KMN-BORE-0024

An 18.5 kW, 10-inch stainless steel borehole pump giving 47 m of head, as a three-phase set or pump end, delivered from Polokwane.

Price range: R10 784,00 through R51 808,00

Moves about 90 m3/h at 38 m head, up to 180 m3/h
10-inch stainless steel pump end, 47 m shut-off head
18.5 kW 380 V or 22 kW 525 V sets, or pump end only
Needs a borehole of 250 mm internal diameter or more

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 180 m3/h (3,000 L/min); nominal about 135 m3/h
Duty point	90 m3/h (1,500 L/min) at 38 m
Max head / pressure	47 m at shut-off; 20 m at 180 m3/h
Voltage / phase	380 V or 525 V three-phase, by option
Power	18.5 kW (380 V set and pump end) or 22 kW (525 V set)
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Construction	Stainless steel
Pump diameter	10 inch; minimum borehole internal diameter 250 mm
Motor size	6-inch water-filled motor, by option
Net weight	158 kg (heaviest option, 525 V set)
Shipping weight	172 kg
Dimensions	2300 × 300 × 300 mm

Description

Overview

The 10SP135/2A is a 10-inch stainless steel submersible borehole pump rated at 18.5 kW, delivering about 90 m3/h (90 000 litres per hour) at 38 m head and 47 m at shut-off. It suits large irrigation schemes, municipal supply and mine dewatering from high-yield boreholes where less head is needed than the 22 kW model offers. Buy a complete set or the pump end alone.

Key features

Stainless steel pump construction
Head of 47 m at shut-off, 38 m at 90 m3/h and 20 m at 180 m3/h
Three-phase, 380 V or 525 V, with water-filled 6-inch motors in the sets
10-inch diameter, for boreholes of at least 250 mm internal diameter
Water-filled motors can normally be rewound if they burn out

Options

380 V set: pump end plus 18.5 kW 380 V three-phase water-filled 6-inch motor, no starter panel: R 27,528
525 V set: pump end plus 22 kW 525 V three-phase water-filled 6-inch motor, no starter panel or VSD: R 51,808
Pump end only: to replace a worn pump end on an existing 18.5 kW 6-inch motor: R 10,784

Where it works

It fits gravity-fed irrigation blocks in the Western Cape, a Limpopo village supply or a quarry dewatering job where the lift is modest but the volume is large. Total head is pumping water level plus height to the tank plus about 10% for friction, and the borehole must be able to supply the flow, so get the yield-test result from your driller. Compare the 10SP135/2 at 22 kW, or the smaller 10SP135/1 at 11 kW. Browse all borehole pumps.

What’s in the box

Pump end, with the motor if you choose a set

Not included: submersible cable, rope, delivery pipe, base plate and starter. Large borehole pumps are supplied to order, so ask us to confirm lead time.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, George, Pretoria, Rustenburg, Mbombela and Polokwane. A set is over 100 kg, so delivery is on quotation. Orders of R20,000 or more are delivered free. Ask us for the warranty terms on this model.

Questions about this product

Why choose the 2A over the 10SP135/2?

The 2A gives 47 m shut-off head and uses an 18.5 kW motor in the 380 V set, so it suits jobs with a lower total head. If your duty needs more than about 38 m at 90 m3/h, choose the 22 kW 10SP135/2.

Is a starter included with the sets?

The sets are listed without a starter panel or VSD, so your electrician must supply one sized for the motor. The 525 V set needs a suitable starter or VSD. Ask us about options for your site.

Do you deliver to George?

Yes. Kamano delivers with its own trucks from Polokwane in 1 to 3 days. A set is over 100 kg, so delivery is on quotation, and orders of R20,000 or more are delivered free.
