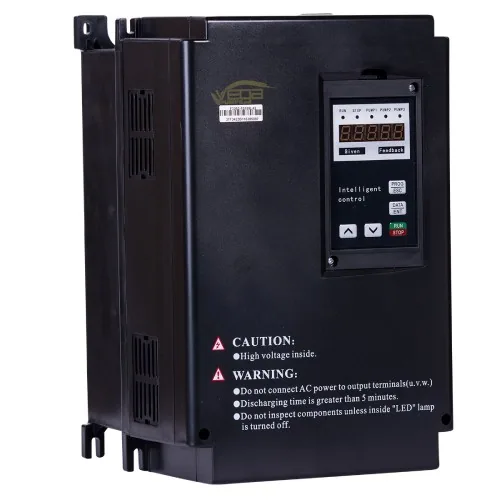

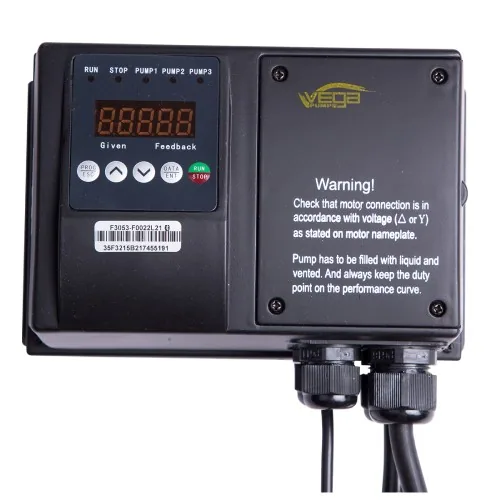

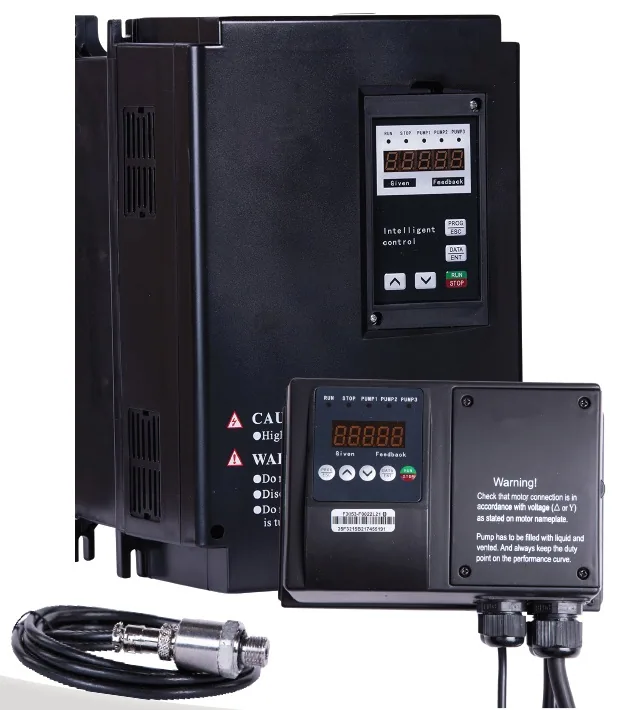

22 kW 380 V Variable Speed Drive, 46 A, Three-Phase

Description

Overview

The 22 kW (30 HP) variable speed drive is made for big three-phase pump motors on a 380 V supply, and it is rated at 46 A. It changes the motor speed by altering the frequency, so the pump follows the flow and pressure the application needs at each moment. That is the main job of a pump VSD: matching the duty instead of fighting it with valves.

The gains are real at this size. Soft starting spares couplings, bearings and pipework from the shock of a direct start, and running slower at part load saves a lot of kilowatt-hours over a year. This drive is for 380 V motors. Pump sets on 525 V need the 22 kW 525 V variable speed drive, and a motor one size down fits the 18.5 kW 380 V drive.

Key features

• Rated 22 kW (30 HP) at 46 A on a 380 V three-phase supply
• Varies speed through output frequency to meet the duty point
• Soft start reduces mechanical shock and starting load
• Saves power at part load, useful against rising tariffs
• Suits constant-pressure systems and variable-demand pumping
• Match the drive to the motor plate before ordering

Where it works

A 22 kW class drive runs deep borehole pumps feeding large irrigation schemes in the Free State and Limpopo, dewatering pumps on Mpumalanga coal and North West platinum operations, and bulk water boosters for municipalities around Gauteng. Anywhere that demand moves up and down through the day, a drive earns back its price in saved power and fewer breakdowns. See the rest of our pump controllers and VSDs for other motor sizes.

What’s in the box

• 1 x 22 kW 380 V variable speed drive

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Bloemfontein, Welkom, eMalahleni and Rustenburg. Shipping weight is about 16 kg. This drive is priced above R20,000 (VAT incl.), so delivery is free. Ask us for the warranty terms on this model.
