12V Cast-Iron Diesel Transfer Pump, 70 L/min, 550 W, 1″ BSP

Description

Overview

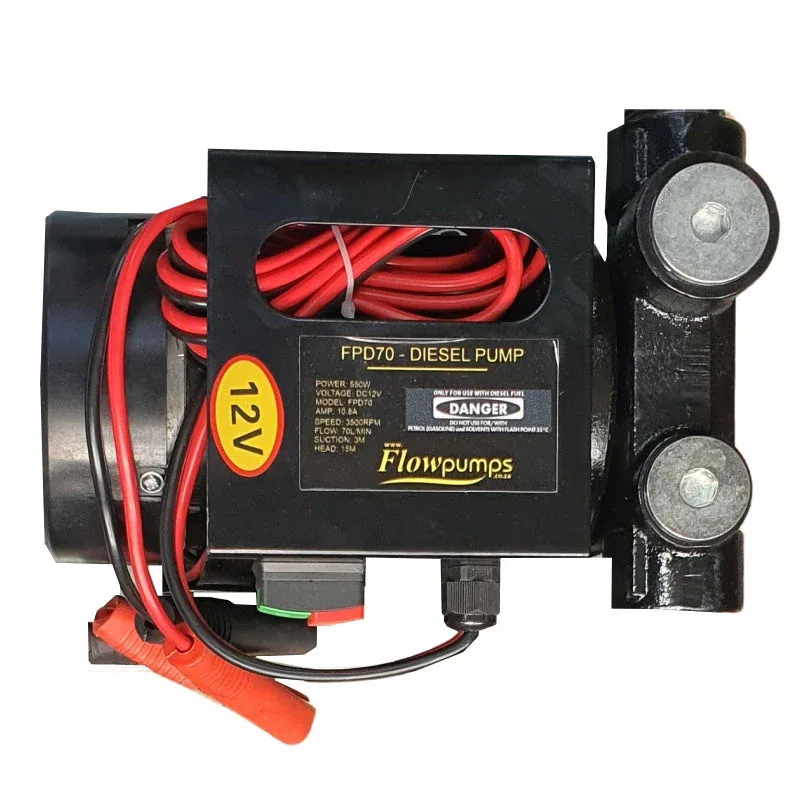

This 70 l/min diesel transfer pump is a 12V DC cast-iron rotary-vane pump with 1 inch BSP ports. It is sold as the bare pump, ready to bolt onto a bowser, a trailer tank or a fixed fuel point, and it moves diesel at nearly twice the rate of a 40 L/min pump.

Buy it to build your own setup, or as a direct replacement when the pump on an older bowser gives up in the middle of the season. The cast-iron housing takes knocks and heat far better than light alloy pumps. Add your own hose, nozzle and meter to suit the job, or ask us to recommend matching parts from our range so everything threads together first time.

Key features

• 550 W 12V DC motor, 20 to 70 L/min
• Cast-iron rotary-vane pump body
• Up to 3 bar, enough for long hoses and hose reels
• 30 minute duty cycle
• 1 inch BSP inlet and outlet for standard fittings

Where it works

Contractors fitting out a bakkie or trailer bowser for road work in the Eastern Cape, and farmers in the Free State refuelling combines in the land, choose a 70 l/min diesel transfer pump because it cuts waiting time at each machine. Mines use it on service trucks that fuel plant across a large pit. Mount it with a large standard hose reel and a 20 m roll of 25 mm diesel hose for a proper mobile fuel setup. More in diesel pumps and accessories.

What’s in the box

• 12V DC 70 L/min cast-iron diesel transfer pump

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 9.7 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.
