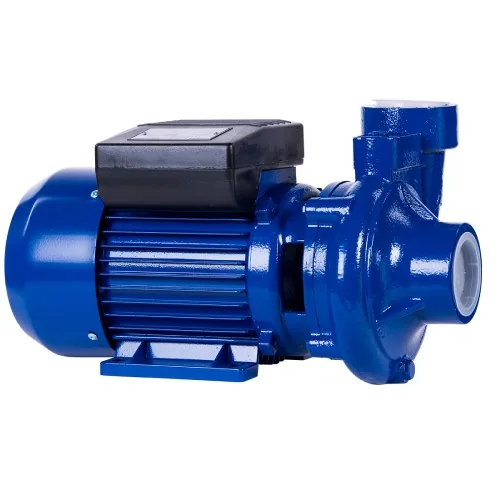

1.1 kW three-phase twin stage pump 2CP25/140M, 48 m head, front view

1.1 kW Three-Phase Twin Stage Pump, 48 m Head, 2CP25/140M 380 V

Name: 1.1 kW Three-Phase Twin Stage Pump, 48 m Head, 2CP25/140M 380 V
SKU: KMN-WATR-0346
Price: 3824.00 ZAR
Availability: InStock

SKU KMN-WATR-0346

A 1.1 kW three-phase twin stage pump with up to 48 m head, supplied as a pump only, delivered by Kamano to all nine provinces.

R3 824,00

Two impellers for higher pressure than a single-stage pump
1.1 kW, 380 V three-phase motor
Up to 48 m head and 120 L/min
Pump only, no controller included

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	120 L/min (7.2 m3/h) maximum
Max head / pressure	48 m maximum
Voltage / phase	380 V, three-phase
Power	1.1 kW
Inlet / outlet	On request
Self-priming	On request
Duty cycle	On request
Fluid compatibility	Clean water
Model	2CP25/140M (twin stage end-suction)
Duty point	60 L/min at 38.7 m
Performance	20 L/min at 44.7 m, 40 at 42.3 m, 60 at 38.7 m, 80 at 32.5 m, 100 at 24.4 m, 120 at 12.6 m
Supplied as	Pump only, no controller
Net weight	14 kg
Shipping weight	16 kg
Dimensions	420 × 200 × 290 mm

Description

Overview

The 2CP25/140M is a two-stage, twin impeller end-suction centrifugal pump with a 1.1 kW, 380 V three-phase motor, giving up to 48 m of head. Two stages give more pressure than a single-stage pump of the same size. It is a good fit for double-storey houses, longer pipe runs and irrigation. It is supplied as a pump only, with no controller, so you add your own starter and protection.

Key features

Twin impeller design for higher pressure
1.1 kW motor on 380 V three-phase supply
Maximum head of 48 m, roughly 4.8 bar
Flow up to 120 L/min (7.2 m3/h)
Pump only, no controller

Duty points

Flow against head: 20 L/min at 44.7 m, 40 L/min at 42.3 m, 60 L/min at 38.7 m, 80 L/min at 32.5 m, 100 L/min at 24.4 m and 120 L/min at 12.6 m. Every 10 m of head is about 1 bar of pressure.

Where it works

Three-phase supply is common on farms, mines and workshops, which is where this pump fits best: irrigation blocks in Limpopo and the Free State, borehole header tanks on Mpumalanga farms, and pressure boosting at depots in Gauteng. It is a more affordable way to get 48 m of head than a single-phase set, if you have three-phase power. For a single-phase supply see the 1.1 kW 2CPM25/140M twin stage pump or the 1.5 kW three-phase twin stage pump, or browse all water booster pumps.

What’s in the box

1.1 kW three-phase twin stage pump

No controller is included.

Sizing tip

Every 10 m of head is about 1 bar of pressure. Count the taps and sprinklers that run together, add the height you must lift to the pipe friction, and pick a pump whose head at your flow is comfortably above that. Send us your setup and we will help you choose.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Polokwane, Mbombela, Tzaneen and Welkom. The shipping weight is 16 kg, so it sits in the up to 30 kg delivery band at R550. Orders of R20,000 or more (VAT incl.) qualify for free delivery. Ask us for the warranty terms on this model.

Questions about this product

Can I run this pump on single-phase power?

No. This model has a 380 V three-phase motor. If you only have 230 V single-phase supply, choose the 2CPM25/140M, which has the same 1.1 kW rating and 48 m maximum head with a single-phase motor.

Does it come with a controller?

No. It is a pump only, with no controller. You need a suitable starter with overload protection for a 380 V three-phase motor, and a tank or pressure arrangement to suit your system. Send us your setup and we will help you plan it.

How much is delivery to Welkom?

The pump ships at about 16 kg, so it falls in the up to 30 kg band at R550 (VAT incl.). Orders of R20,000 or more ship free. Our own trucks deliver from Polokwane to Welkom in 1 to 3 days.
