0.75 kW Three-Phase Vortex Sewage Pump, 380 V, 9.5 m Head

Name: 0.75 kW Three-Phase Vortex Sewage Pump, 380 V, 9.5 m Head
SKU: KMN-SUBM-0040
Price: 3824.00 ZAR
Availability: InStock

SKU KMN-SUBM-0040

A 0.75 kW, 380 V three-phase stainless steel vortex sewage pump with 9.5 m head and 35 mm solids passage, delivered across South Africa.

R3 824,00

Vortex impeller passes solids up to 35 mm without clogging
0.75 kW (1 HP), 380 V three-phase, rewindable motor
Stainless steel AISI304 casing and impeller
9.5 m maximum head, up to 21 m3/h

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 21 m3/h (350 L/min) at 3.9 m
Max head / pressure	9.5 m
Duty point	12 m3/h (200 L/min) at 6.9 m

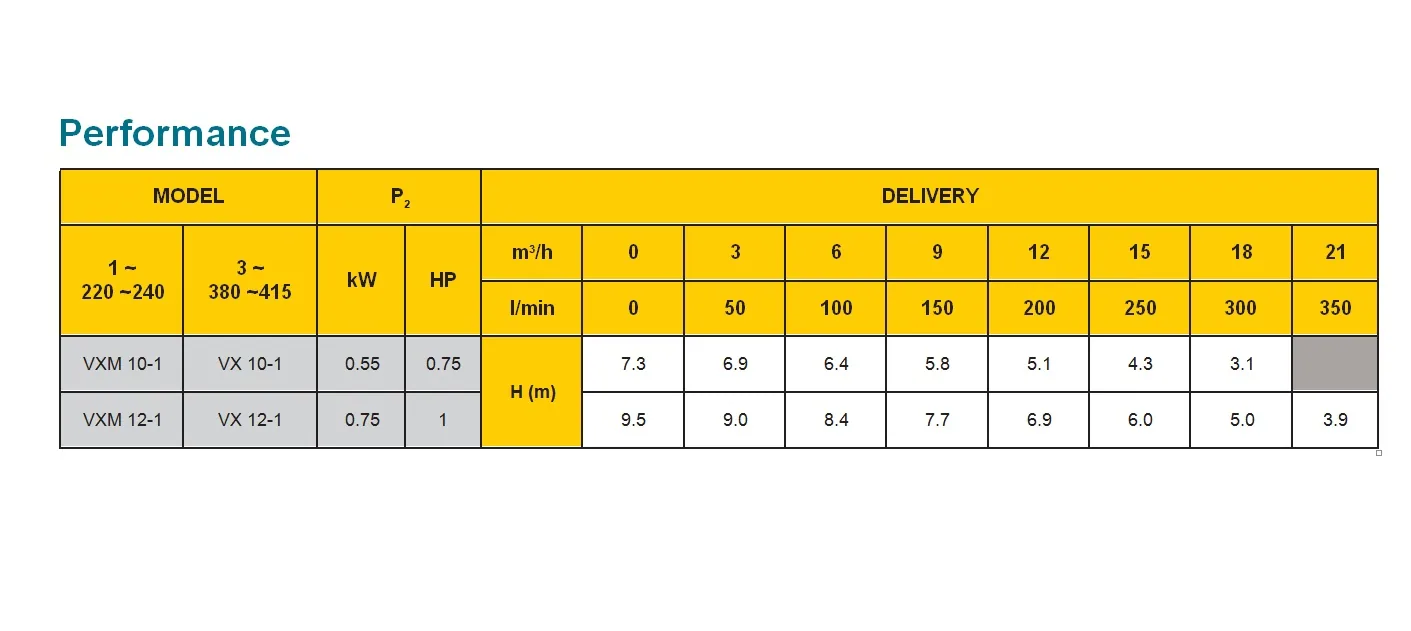

Performance curve	9.5 m at 0 m3/h, 9.0 m at 3 m3/h, 8.4 m at 6 m3/h, 7.7 m at 9 m3/h, 6.9 m at 12 m3/h, 6.0 m at 15 m3/h, 5.0 m at 18 m3/h, 3.9 m at 21 m3/h
Voltage / phase	380 V to 415 V three-phase, 50 Hz
Power	0.75 kW (1 HP)
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Sewage, effluent and dirty water with solids up to 35 mm, pH 4 to 10, up to 40 °C
Impeller	Vortex (recessed), liquid does not contact the impeller
Materials	Casing, impeller, cover, casing cover and motor AISI304, shaft AISI316
Mechanical seal	Double, with intermediate oil chamber
Max solids	35 mm
Max immersion depth	10 m
Motor	Rewindable
Range model	VXM 12-1 (single-phase), VX 12-1 (three-phase)
Net weight	13 kg
Shipping weight	14 kg
Dimensions	260 x 220 x 410 mm

Description

Overview

This 0.75 kW three-phase vortex sewage pump has 9.5 m of head and up to 21 m3/h on a 380 V supply, and it still passes solids up to 35 mm.

The vortex impeller sits back from the flow, so the liquid being pumped does not come into contact with it and solids up to 35 mm pass through without clogging. At 0.75 kW it delivers 21 m3/h (350 L/min) at 3.9 m with a maximum head of 9.5 m, and the casing, impeller, cover and shaft are stainless steel (AISI304 and AISI316). A double mechanical seal with an intermediate oil chamber protects the motor, and the motor is rewindable.

Key features

0.75 kW (1 HP) rewindable motor, 380 V to 415 V three-phase, 50 Hz
Vortex impeller passes solids up to 35 mm without clogging
9.5 m maximum head, 21 m3/h (350 L/min) at 3.9 m
Casing, impeller, cover and motor in AISI304 stainless steel, shaft in AISI316
Double mechanical seal with intermediate oil chamber
Maximum immersion 10 m, liquid temperature up to 40 °C, pH 4 to 10

Where it works

Fit it in industrial effluent pits around Richards Bay and Durban, in pump stations at treatment plants, or in KwaZulu-Natal farm sumps with a three-phase supply and a long delivery line. It also feeds effluent irrigation systems. Use the 0.55 kW 380 V vortex pump for lighter duty, or the 0.75 kW 220 V version on single-phase power. The submersible pump range has the full list.

What’s in the box

0.75 kW vortex sewage pump (VX 12-1)
Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Durban, Richards Bay, Pietermaritzburg, Johannesburg, Mbombela and Gqeberha. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 14 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.

Questions about this product

What solids can the 0.75 kW vortex sewage pump pass?

It passes solids up to 35 mm without clogging, because the vortex impeller keeps the pumped liquid away from the impeller itself. It is rated for pH 4 to 10 and liquid up to 40 °C. Do not use it for rags, stones or fibrous waste in bulk, and screen the pit if you expect those.

Is the 0.75 kW vortex pump three-phase only?

This version is three-phase, for a 380 V to 415 V, 50 Hz supply, and it should be wired through a starter with overload protection by a qualified electrician. If you only have single-phase power, the 220 V version of the same pump is the one to order.

Do you deliver a sewage pump to Richards Bay?

Yes. Kamano delivers with its own trucks from Polokwane to Richards Bay and all nine provinces in 1 to 3 days. At about 14 kg shipping weight this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) go free. Add a hose and fittings to the same order.
