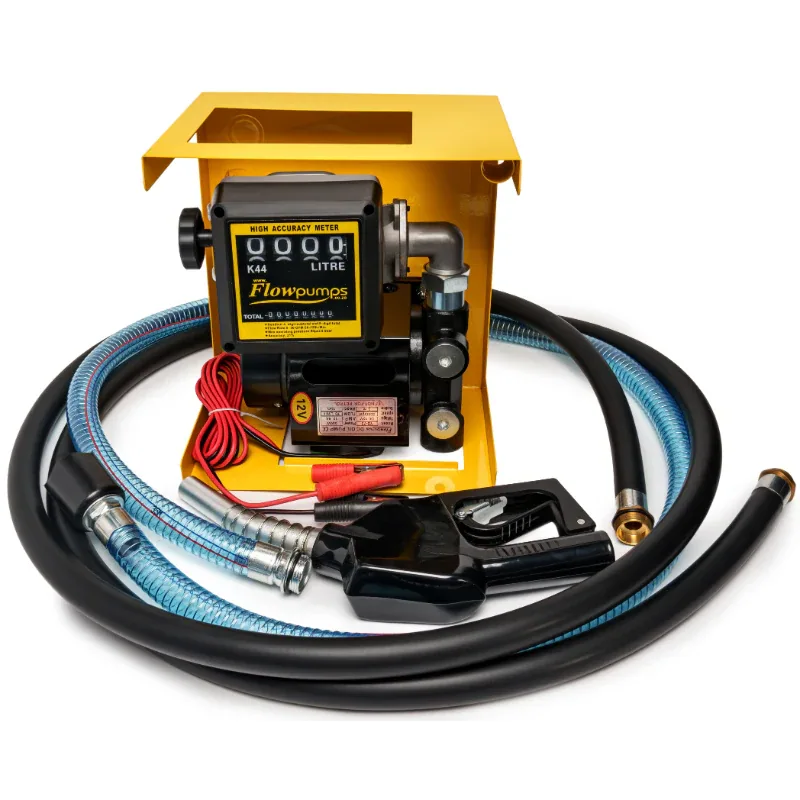

12V 70 L/min diesel pump kit in wall-mount case with flow meter, 4 m hose and auto-stop nozzle

12V Diesel Pump Kit in Case, 70 L/min, Auto-Stop Nozzle and Meter

Name: 12V Diesel Pump Kit in Case, 70 L/min, Auto-Stop Nozzle and Meter
SKU: KMN-FUEL-0026
Price: 6605.55 ZAR
Availability: InStock

SKU KMN-FUEL-0026

A 12V 70 L/min diesel dispenser in a wall-mount case with meter and auto-stop nozzle, for off-grid farms and sites, delivered from Polokwane in 1 to 3 days.

R6 605,55

Fastest 12V option, no mains power needed
Auto-stop nozzle prevents overfills and spills
20 to 70 L/min, 12V DC, 550 W, 3 bar
Flow meter, 4 m hose, 1″ BSP pump ports

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	20 to 70 L/min
Max head / pressure	3 bar
Voltage / phase	12V DC
Power	550 W (current draw on request)
Inlet / outlet	1" BSP
Self-priming	Yes (rotary-vane type)
Duty cycle	On request
Fluid compatibility	Diesel only, not petrol
Flow meter	Fitted (type on request)
Nozzle	Automatic shut-off
Delivery hose	4 m
Housing	Wall-mount pump case
Net weight	16.2 kg
Shipping weight	17.4 kg
Dimensions	On request

Description

Overview

This 12v diesel pump kit with auto nozzle is a battery-powered dispensing station: a 70 L/min pump, flow meter, 4 m delivery hose and automatic shut-off nozzle, all housed in a wall-mount case. It gives off-grid sites the same metered, spill-free filling you would expect from a mains unit.

The bigger 550 W motor fills a tractor or truck tank noticeably quicker than a 40 L/min pump, and the auto-stop nozzle clicks off by itself when the tank is full. That means fewer spills on the ground, less wasted fuel and a cleaner, safer fuel point for everyone who uses it, even when the operator has to step away for a moment.

Key features

12V DC pump rated at 550 W, up to 70 L/min
Automatic shut-off nozzle for clean, unattended fills
Flow meter for logging fuel per vehicle
Up to 3 bar, 1 inch BSP pump ports
Wall-mount case protects the pump from weather and dust

Where it works

Game farms in Limpopo, cattle farms in the Northern Cape and road camps in the Eastern Cape rarely have mains power near the diesel tank, which is where a 12v diesel pump kit with auto nozzle earns its place. Solar-charged batteries keep it running between fills. For sites with Eskom power, the 220V kit with clear dirt filter is a good partner, and the retractable hose reel adds reach at a busy fuel point. Browse diesel pumps and accessories.

What’s in the box

Wall-mount pump case with 12V 70 L/min pump fitted
Flow meter
4 m delivery hose
Automatic shut-off nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 17.4 kg, which puts it in the up to 30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.

Questions about this product

Can I run the 70 L/min 12V pump off a bakkie battery?

Yes, but treat it as a heavy load. A 550 W motor at 12V pulls a lot of current, so connect it straight to the battery with thick, fused cable and keep the engine running while you pump. A deep-cycle battery on a charger or solar panel works well for a fixed fuel point.

Will the auto nozzle work at low flow?

Automatic nozzles need a reasonable flow to trigger the shut-off reliably. This pump runs from 20 up to 70 L/min, which is within the normal working range. If you throttle right down to a trickle for small jerry cans, watch the fill by eye, as the nozzle may not click off.

How much is delivery to Musina?

The kit ships at 17.4 kg, which falls in the up to 30 kg band at R550 to Musina or anywhere else in the country. Our own trucks leave Polokwane and usually arrive in 1 to 3 days. Orders that add up to R20,000 or more including VAT ship free.
