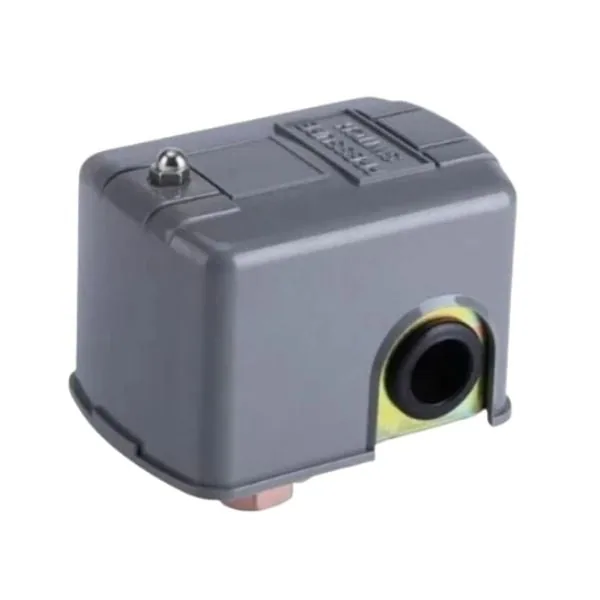

Mechanical Pressure Switch, 1-6 bar, SK-2, 2.2 kW

Description

Overview

The SK-2 is a mechanical pressure switch that starts and stops an electric pump based on pressure in a pressure vessel. When the pressure rises above the set cut-out point it disconnects the power to the pump, and when it falls below the cut-in point it reconnects it, so the pump runs only when needed.

The differential between cut-out and cut-in is adjustable, which lets you balance how often the pump cycles against how steady the pressure feels at the taps.

Key features

• Automatic mechanical switch for electric domestic pumps
• Pressure range of 1 to 6 bar, maximum working pressure 6 bar
• Maximum power of 2.2 kW and maximum current of 12 A
• Adjustable differential between cut-in and cut-out
• Operating temperature of 0 to 55 °C
• Protects against overpressure by cutting power at the set limit; read the pressure with a 1-6 bar gauge

Where it works

It belongs on booster and pressure vessel systems: house water supply from a tank, a farm homestead on a borehole, a lodge or a school water point. Plumbers across Gauteng and KwaZulu-Natal use mechanical switches like this because there is no electronics to fail in the heat or when load-shedding returns with a surge.

Match the switch to the pump: it is rated to 2.2 kW and 12 A, so larger pumps need a contactor. Have a qualified electrician wire it. See our other tank accessories for a complete set-up.

What’s in the box

• 1 x SK-2 mechanical pressure switch

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Durban, Pietermaritzburg, Polokwane and Mbombela. Shipping weight is about 0.4 kg, which falls in the up to 30 kg band for a single item. Delivery fees follow total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. Orders of R20,000 or more (VAT incl.) are delivered free. Ask us for the warranty terms on this model.
