PP Reducing Socket for LDPE Pipe, 20 x 15mm to 50 x 40mm

Description

Overview

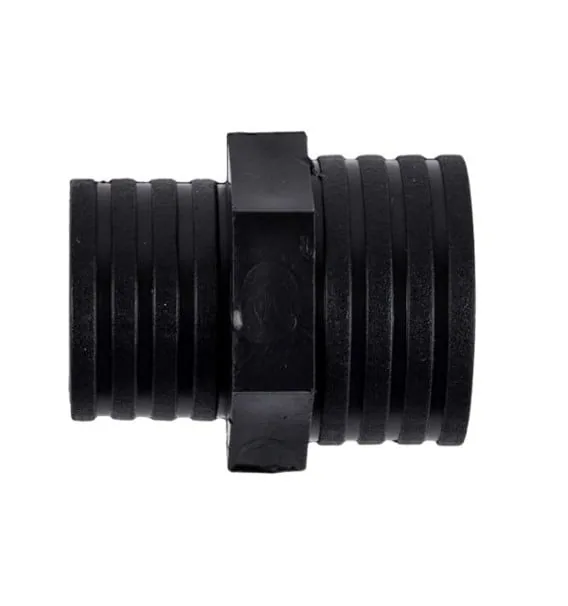

The PP reducing socket is a polypropylene compression fitting that joins two different sizes of low-density polyethylene (LDPE) pipe in the same irrigation or water line. A nylon insert and a precision compression design give a strong mechanical seal that copes with low and high pressure irrigation systems. Because it is a socket, the pipe goes in at each end, so you can expand, modify or repair a line without changing flow or reliability. It comes in fifteen size pairs, and you can see more in our pipe fittings range.

Key features

• Connects two different LDPE pipe sizes
• For Class 3 and Class 6 polyethylene pipe
• Polypropylene construction with nylon insert
• Leak-resistant compression connection, no special tools
• Corrosion and UV resistant
• Quick and easy to install

Options

Sizes are large pipe by small pipe. Prices include VAT.

• 20 x 15mm (MBP660): R 9
• 25 x 15mm (RED-SOC-25X15): R 10
• 25 x 20mm (MBP662A): R 13
• 32 x 15mm (NRS032015): R 12
• 32 x 20mm (NRS032020): R 17
• 32 x 25mm (NRS032025): R 17
• 40 x 15mm (NRS040015): R 16
• 40 x 20mm (NRS040020): R 20
• 40 x 25mm (NRS040025): R 18
• 40 x 32mm (NRS040032): R 22
• 50 x 15mm (NRS050015): R 19
• 50 x 20mm (NRS050020): R 21
• 50 x 25mm (NRS050025): R 22
• 50 x 32mm (NRS050032): R 26
• 50 x 40mm (NRS050040): R 27

Where it works

Agricultural and landscaping installers in Limpopo, Mpumalanga and the Western Cape use reducing sockets to step a main line down to laterals. Municipalities and domestic plumbers use them on reticulation, and pump installers use them to match a borehole delivery line to tank feed pipe. Suitable for above-ground and buried installations. Cap spare pipe ends with the PP male plug, or consider the PP reducing nipple for threaded joins.

What’s in the box

• 1 x PP reducing socket in the size you select

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Mbombela, eMalahleni, George, Cape Town and Pretoria. The largest socket ships at 0.2 kg, so it adds almost nothing to the weight of an order. Delivery is charged by total order weight (up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation) and is free on orders of R20,000 or more, VAT incl. Ask us for the warranty terms on this model.
