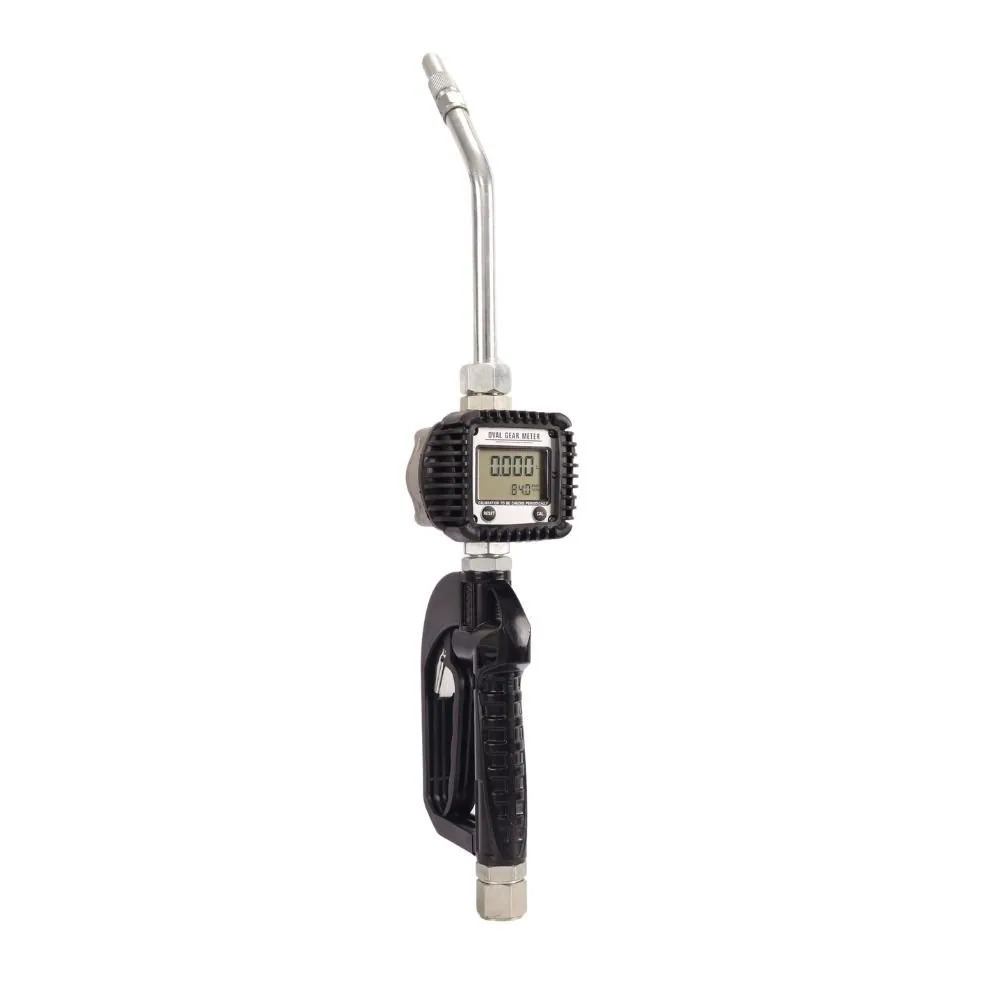

Hand-held oil nozzle with built-in digital LCD flowmeter, 1/2 inch BSP, 1-30 L/min

Oil Nozzle with Digital Flowmeter, 1/2″ BSP, 1-30 L/min

Name: Oil Nozzle with Digital Flowmeter, 1/2" BSP, 1-30 L/min
SKU: KMN-FUEL-0114
Price: 1975.05 ZAR
Availability: InStock

SKU KMN-FUEL-0114

A manual oil nozzle with a built-in digital flowmeter for metered dispensing of diesel and light oils at 1 to 30 L/min, delivered across South Africa.

R1 975,05

Nozzle and digital flowmeter in one hand-held unit
LCD with a resettable batch total and a cumulative total
Flow range 1 to 30 L/min, 1/2″ BSP connection
Runs on 2 AAA batteries, accuracy ±1%

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	1-30 L/min
Accuracy	±1% (typical, after calibration)
Connection size	1/2" BSP
Max pressure	0.3 MPa working pressure
Material	Aluminium with sealed metering chamber
Display type	Digital LCD (batch + cumulative total)
Power	2 x 1.5V AAA batteries
Fluid compatibility	Diesel, biodiesel, kerosene and light oils (not petrol)
Net weight	1.7 kg
Shipping weight	2.0 kg
Dimensions	440 × 100 × 110 mm

Description

Overview

This oil nozzle with digital flowmeter is a hand-held dispensing nozzle with a 1/2″ BSP connection and an electronic oval-gear meter built in. You squeeze, fill and read the litres on the LCD, so there is no separate meter to plumb in. It suits workshops, fleet service bays and farm stores that issue oil and diesel in smaller quantities.

The display shows a batch total that resets for each fill and a cumulative total that keeps running. Accuracy is about ±1% under normal conditions after calibration, so check it against a certified measure if you use it for charging customers. Working pressure is 0.3 MPa, and it is powered by two 1.5V AAA batteries.

Shopping for an oil nozzle with flowmeter in South Africa? Browse the full range of flowmeters, or compare this model with the digital metering nozzle with auto stop and the micro flowmeter, 0.2 to 10 L/min.

Key features

Nozzle and flowmeter in one hand-held unit
Digital LCD: batch total and cumulative total
1 to 30 L/min, working pressure 0.3 MPa
Aluminium body with sealed metering chamber
Powered by 2 x 1.5V AAA batteries

Where it works

Workshops and fleet service bays in Gauteng and Limpopo use it to issue oil by the litre to each vehicle. Farms in the Free State and mine service crews in Mpumalanga fit it on gravity or pumped lines to record top-ups, and municipal depots use it to track consumption. For diesel, kerosene and light oils, not petrol.

What’s in the box

Oil nozzle with digital flowmeter
2 x 1.5V AAA batteries (confirm at order)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). The shipping weight of this unit is 2.0 kg. Order your oil nozzle with flowmeter online and we dispatch from Polokwane. Ask us for the warranty terms on this model.

Questions about this product

Can I use this nozzle for petrol?

No. It is rated for diesel, biodiesel, kerosene and light oils. Do not use it for petrol unless you have an explosion-proof unit specified. Contact us if you need to meter petrol.

Does the meter reset between fills?

Yes. The batch total resets for each fill, while the cumulative total is kept for your records. Write down the cumulative figure regularly so you can reconcile it against your stock.

What accuracy can I expect?

About ±1% under normal conditions. For trade or custody use, calibrate it against a certified measure. It works best at steady flows within the 1 to 30 L/min range.

What connection does it take?

It takes a 1/2" BSP connection. Tell us your hose or pump fitting and we will confirm that it fits before we ship, so you do not end up with the wrong adaptor on the day of installation.
