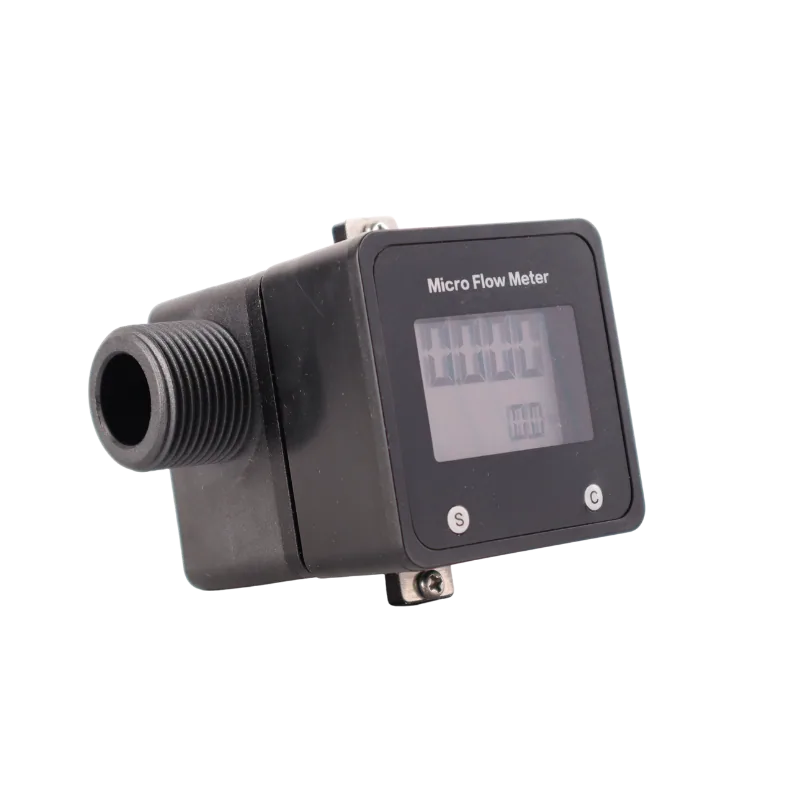

Micro flowmeter 30-3000 L/h with LCD display and G3/4 inch male threads

Micro Flowmeter 30-3000 L/h, G3/4″ Male, LCD, Battery or 5-24V

Name: Micro Flowmeter 30-3000 L/h, G3/4" Male, LCD, Battery or 5-24V
SKU: KMN-FUEL-0091
Price: 2164.05 ZAR
Availability: InStock

SKU KMN-FUEL-0091

Micro flowmeter with LCD for 30 to 3000 L/h on 3/4" lines, battery or 5-24V DC powered, for plants, workshops and farms, delivered nationwide.

R2 164,05

Wide 100:1 range, from a trickle to 50 L/min
Runs on battery or a 5-24V DC supply
Flow range: 30-3000 L/h
Connection: G3/4″ male thread
Working pressure: 0-10 bar

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Inline micro digital flowmeter
Flow range	30-3000 L/h
Accuracy	±1% (typical)
Connection size	G3/4" male
Max pressure	0-10 bar working
Material	Aluminium alloy body
Display type	Digital LCD
Power	Battery or 5-24V DC
Fluid compatibility	Diesel, light oils, water and other clean, thin fluids
Net weight	0.5 kg
Shipping weight	0.55 kg
Dimensions	100 × 60 × 60 mm

Description

Overview

This micro flowmeter measures flows from 30 up to 3000 litres per hour and shows the total on an LCD, with G3/4″ male threads at each end. What sets it apart is the wide range and the choice of power: run it off its battery, or wire it to a 5-24V DC supply when it lives on a control panel. It is the meter we reach for when a line runs slow most of the day but sometimes opens up.

It forms part of our fuel dispensing and metering equipment range. Pair it with the 0.2-10 L/min micro flowmeter or the digital metering nozzle with auto stop for a complete setup.

Key features

30-3000 L/h range covers slow drips and moderate transfers
G3/4″ male threads, easy to plumb with standard fittings
LCD readout for batch and running totals
Battery or 5-24V DC power
Rated for 0-10 bar working pressure
Small, light body for panels and skids

Where it works

Water treatment works for municipalities in Gauteng and KZN use a 3/4 inch micro flowmeter on chemical dosing lines, where the flow is small and the cost of overdosing is high. On farms it tracks diesel to boilers, dryers and generators. Workshops fit it to measure oil or coolant top-ups, and fleet depots use it to check small additive pumps against the delivery note.

Fitting tip from the workshop: put a fine strainer ahead of the 3/4 inch micro flowmeter, because small rotors jam on rust flakes and tank sludge long before a big meter would notice. Mount it with the arrow pointing in the direction of flow, keep it out of direct sun where you can, and run a measured 10 litres through it once installed to confirm the reading before you rely on the totals.

What’s in the box

Micro flowmeter with LCD
Battery (fitted)

Delivery and warranty

Our own trucks run from Polokwane to all nine provinces and most orders arrive in 1 to 3 days. The shipping weight is 0.55 kg, which falls in the up to 30 kg band at R550, and delivery is free once your order reaches R20,000. Ask us for the warranty terms on this model.

Questions about this product

Can I wire it into my 12V or 24V system?

Yes. Besides its own battery, the meter accepts a 5-24V DC supply, so you can feed it from a 12V bakkie or 24V truck circuit, or from a panel power supply. That is handy when the meter lives permanently on a skid or dosing panel and you do not want to change batteries. Fit an inline fuse on the feed.

What is the lowest flow it will read?

It starts reading from about 30 litres per hour, which is half a litre a minute. That makes it a good fit for dosing pumps, burners and small generators. Below that, look at our 2-90 L/h pulse sensor, which is built for very slow flows and gives a signal to a controller instead of a local display.

How much pressure can it take?

The rated working pressure is 0 to 10 bar. That covers gravity feeds, small electric transfer pumps and most dosing pumps. If you are on the outlet of a high-pressure pump, fit a regulator or choose a heavier oval-gear meter. Send us your pump details and we will check the match before you order.

Do you deliver to a farm outside Bethlehem, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 0.55 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.
