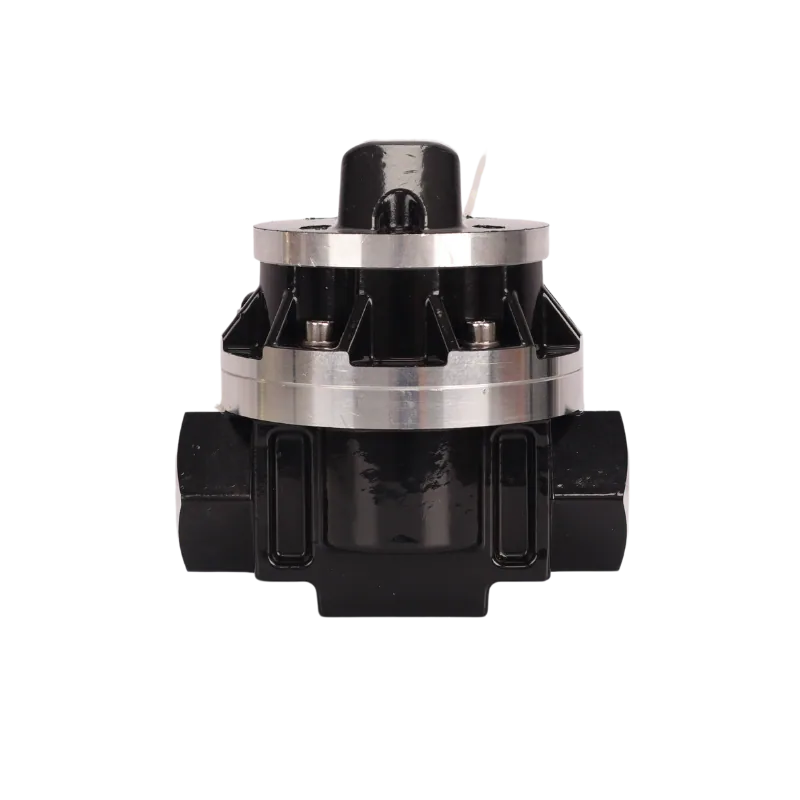

OGM-25 oval gear flowmeter with reed or Hall pulse output and 1 inch ports

OGM-25 Pulse Output Flowmeter, 1″, 12-120 L/min, Reed/Hall

Name: OGM-25 Pulse Output Flowmeter, 1", 12-120 L/min, Reed/Hall
SKU: KMN-FUEL-0102
Price: 1748.25 ZAR
Availability: InStock

SKU KMN-FUEL-0102

OGM-25 oval-gear pulse output flowmeter for 1" diesel lines, sending reed or Hall pulses to fuel management systems and PLCs, delivered nationwide.

R1 748,25

Feeds fuel management systems and PLCs
Reed or Hall pulser on an oval-gear meter
Flow range: 12-120 L/min
Connection: 1″ (DN25)
Accuracy: ±0.5%

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Oval gear, positive displacement
Flow range	12-120 L/min
Accuracy	±0.5%
Repeatability	0.03% or better
Connection size	1" (DN25)
Max pressure	3.4 MPa (34 bar) max
Max viscosity	1000 cP
Material	Aluminium alloy
Display type	None (pulse output to remote display or PLC)
Pulse output	Reed or Hall switch
Fluid compatibility	Diesel, biodiesel, paraffin, light non-corrosive oils
Net weight	2.0 kg
Shipping weight	2.3 kg
Dimensions	130 × 110 × 140 mm

Description

Overview

The OGM-25 pulse output flowmeter is a 1″ oval-gear meter fitted with a reed or Hall-effect pulser instead of a local display. As the gears turn it sends pulses to a fuel management terminal, PLC or remote counter, which then records the litres. Choose it when the reading must end up in a system, such as tag-based fuel control or an automated batching panel.

It forms part of our fuel dispensing equipment range. Pair it with the OGM-25 electronic flowmeter or the OGM-25 mechanical flowmeter for a complete setup.

Key features

Reed or Hall-effect pulse output
Oval-gear chamber, ±0.5% accuracy
12-120 L/min flow range
1″ (DN25) connections
Aluminium body
Works with fuel terminals, PLCs and remote counters

Where it works

Transport fleets in Gauteng and on the N4 fit a pulse output flowmeter to fuel management systems so each driver tag is logged against litres. Mines in Limpopo and the North West feed it into SCADA on their diesel bays, and agri co-ops use it on bulk oil dispensing panels.

Fitting tip: fit a strainer and air eliminator before the meter, follow the flow arrow, and run screened signal cable back to the terminal or PLC, kept well away from pump motors and power cables. Confirm the pulses-per-litre setting with a measured test volume during commissioning, so the litres in your reports match what really left the tank.

Oval-gear meters measure by displacement: every turn of the gears passes a fixed volume, so the reading holds steady whether the fluid is thin diesel or heavier oil, and the flow pattern in the pipe matters far less than it does with a turbine meter.

What’s in the box

OGM-25 oval-gear flowmeter with pulser

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, usually within 1 to 3 days. This unit ships at 2.3 kg, so on its own it sits in the R550 band for orders up to 30 kg. Orders of R20,000 or more travel free. Ask us for the warranty terms on this model.

Questions about this product

Does it show litres on the meter?

No. This version has a pulser instead of a display, so the litres show up on whatever it is wired to: a fuel management terminal, PLC or remote counter. If you want a screen on the meter itself, choose the OGM-25 electronic or mechanical model instead.

Will it work with my fuel management system?

Most systems accept a reed or Hall pulse input, so it usually connects without trouble. You will need the pulses-per-litre figure for setup, which we confirm with your order. Send us the make and model of your terminal and we will check compatibility before dispatch.

Can it measure petrol?

No. It is meant for diesel, paraffin and light oils only. Petrol needs equipment rated for low flash-point fuels, including the pulser wiring. Ask us for a petrol-rated option if your system runs both fuels. Running the wrong fuel through it can damage the seals and is a real fire hazard on site.

Do you deliver to Kuruman, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 2.3 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.
