OGM-25 electronic oval gear diesel flowmeter with LCD register and 1 inch ports

OGM-25 Electronic Diesel Flowmeter, 1″, 12-120 L/min, LCD

Name: OGM-25 Electronic Diesel Flowmeter, 1", 12-120 L/min, LCD
SKU: KMN-FUEL-0098
Price: 1842.75 ZAR
Availability: InStock

SKU KMN-FUEL-0098

OGM-25 electronic oval-gear diesel flowmeter for 1" lines at 12 to 120 L/min, for farm tanks, bowsers and depots, delivered nationwide.

R1 842,75

Clear LCD count of every litre issued
Resettable batch with a lifetime total
Flow range: 12-120 L/min
Accuracy: ±0.5%
Connection: 1″ (DN25)

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Meter type	Oval gear, positive displacement
Flow range	12-120 L/min
Accuracy	±0.5%
Repeatability	0.03% or better
Connection size	1" (DN25)
Max pressure	3.4 MPa (34 bar) max
Max viscosity	1000 cP
Material	Aluminium base, plastic head
Display type	Electronic LCD, batch and total
Fluid compatibility	Diesel, biodiesel, paraffin, light non-corrosive oils
Net weight	1.9 kg
Shipping weight	2.1 kg
Dimensions	150 × 140 × 140 mm

Description

Overview

The OGM-25 is a 1″ electronic diesel flowmeter with oval gears and a battery LCD register. It measures 12 to 120 litres per minute, which matches most 12V, 24V and 220V transfer pumps, and shows a resettable batch alongside a running total. For the price it is the meter we fit most often to farm tanks and bowsers when the owner wants to know where the diesel goes.

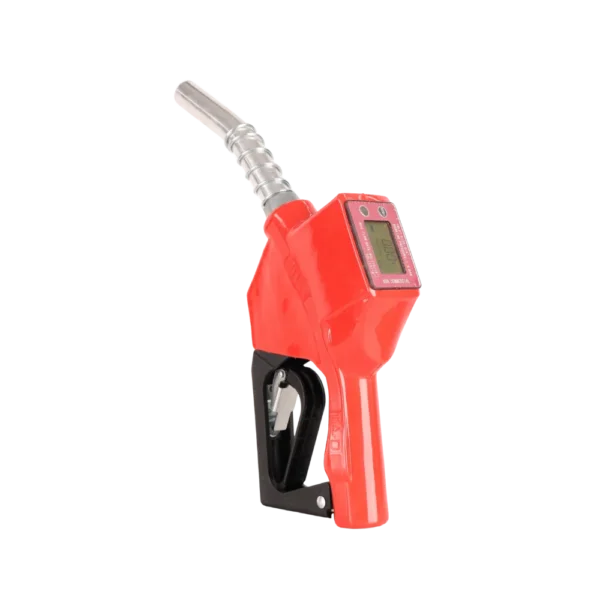

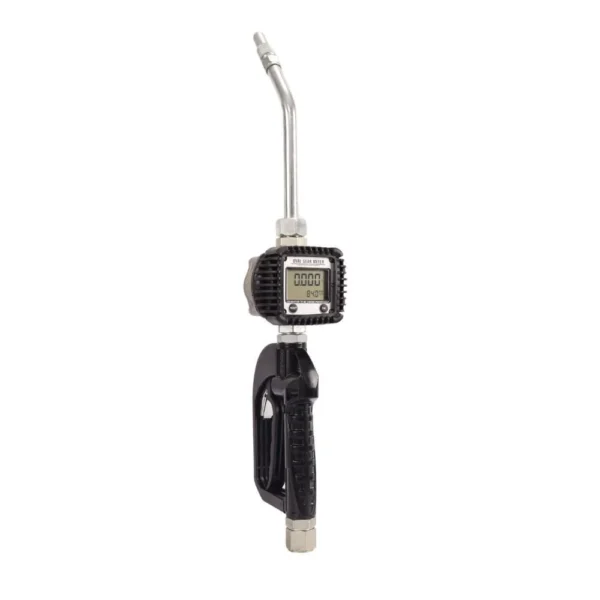

It forms part of our fuel dispensing equipment range. Pair it with the oil nozzle with digital meter or the digital metering nozzle with auto stop for a complete setup.

Key features

Oval-gear chamber, ±0.5% accuracy
LCD with resettable batch and cumulative total
12-120 L/min, matched to common transfer pumps
1″ (DN25) inlet and outlet
Aluminium base with a plastic register head
Handles diesel, paraffin and oils up to 1000 cP

Where it works

Grain farmers in the Free State and cattle farmers in Limpopo bolt an electronic diesel flowmeter 1 inch onto their tank or bowser so every tractor fill is counted. Contractors fit it to site diesel trailers, and municipal depots use it to record fuel issued to graders and refuse trucks. It is also a common add-on for small private diesel stations.

Fitting tip: always put a strainer before an oval-gear meter, since the gears run on tight clearances and grit is the main cause of jams. Mount the electronic diesel flowmeter 1 inch so the display faces the operator, follow the flow arrow cast in the body, and run a known volume through it after installation. Change the register batteries before a busy season so the totals are never lost.

Oval-gear meters measure by displacement: every turn of the gears passes a fixed volume, so the reading holds steady whether the fluid is thin diesel or heavier oil, and the flow pattern in the pipe matters far less than it does with a turbine meter.

What’s in the box

OGM-25 electronic oval-gear flowmeter
Batteries for the register

Delivery and warranty

We deliver from our Polokwane yard with Kamano trucks to all nine provinces in 1 to 3 days. Boxed, this meter weighs 2.1 kg, so delivery is R550 on its own (up to 30 kg band), or free on orders of R20,000 and above. Ask us for the warranty terms on this model.

Questions about this product

Will it fit my 12V diesel pump?

Almost certainly. Most 12V and 24V transfer pumps deliver 40 to 70 litres per minute through 1" ports, which sits right in the 12-120 L/min range. Fit the meter on the pump outlet before the hose, use thread tape or a good sealant, and the LCD will start counting immediately.

Can I use it on petrol?

No. This aluminium electronic meter is meant for diesel, paraffin and light oils only. Petrol needs equipment rated for low flash-point fuel. If you have a petrol tank on the farm, ask us and we will recommend the right meter and pump combination.

How accurate is it?

The oval-gear design gives about ±0.5%, with repeatability of 0.03% or better. That is good enough for stock control and charging fuel out to each vehicle or department. For the best figures, run 20 litres into a calibrated measure once installed and set the calibration factor if needed.

Do you deliver to Nelspruit, and what does it cost?

Yes. Kamano trucks leave Polokwane for all nine provinces and most orders land within 1 to 3 days. This item ships at 2.1 kg, which puts it in the up to 30 kg band at R550. If your total order is R20,000 or more (VAT incl.), delivery is free, so it pays to add fittings or a second meter to the same order.
