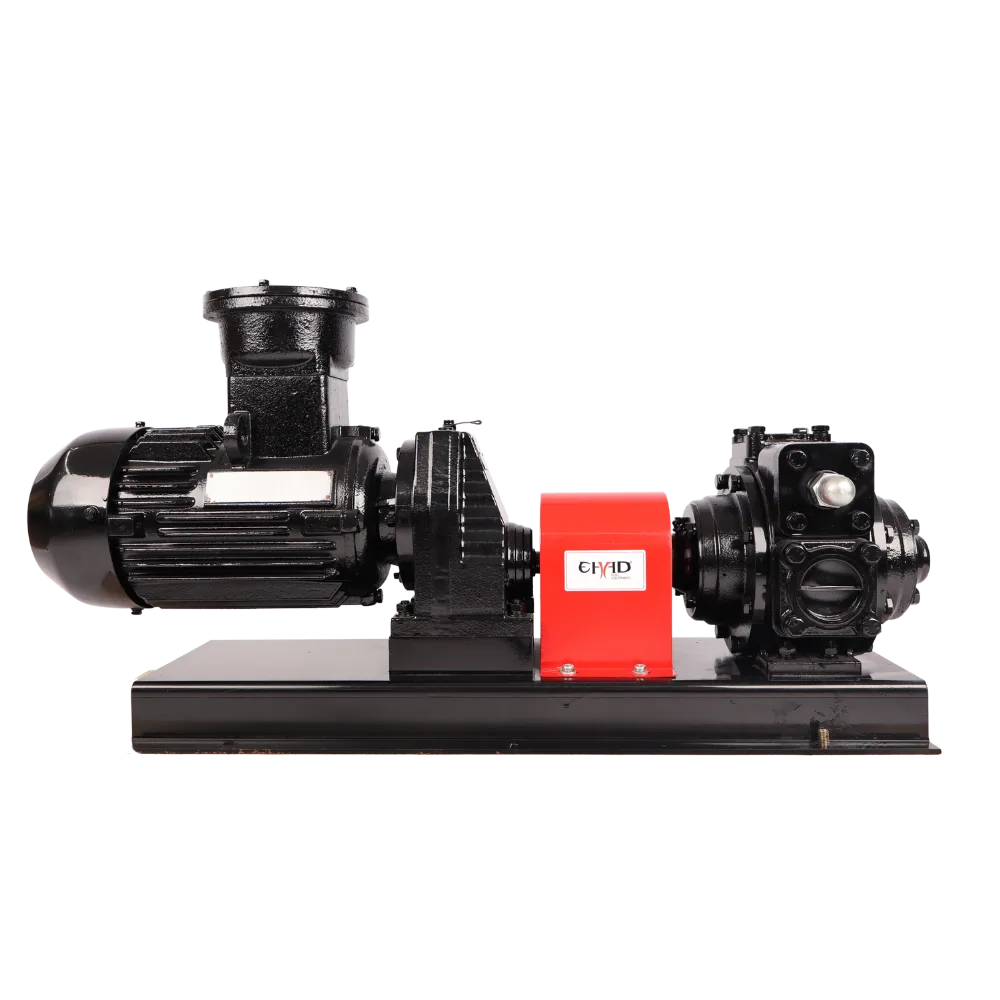

YB50 2 Inch Vane Transfer Pump Set, 300 L/min, 2.2 kW 380V

Description

Overview

The YB50 is a 2 inch sliding-vane transfer pump set that moves 150 to 300 L/min of diesel, paraffin or light lubricating oil. It is supplied as a complete set, with a 2.2 kW motor (YBX3-100L1-4) and gear reducer on a 380V three-phase supply. It is the entry size in the YB high-volume range, aimed at farm depots and workshop fuel bays that need faster fills than a 220V pump can give.

Need to service it later? The YB50 vane and repair kit has the wear parts. For more flow, see the YB65 2.5 inch pump set. Browse all fuel transfer pumps too.

Key features

• Self-priming sliding-vane pump in nodular cast iron
• Built-in bypass and relief valve with replaceable vanes
• 2.2 kW motor, 380V three-phase 50 Hz, 5.2 A, IP55, continuous duty
• Working pressure 3.45 bar
• 2 inch BSP female inlet and outlet

Where it works

Large farms in the Free State and Limpopo fill bowsers and tanks from bulk storage with a 2 inch diesel transfer pump 380v set. Mpumalanga mines use it for site tank transfers, and transport depots and municipal workshops in Gauteng use it for truck fills. It needs a three-phase supply.

What’s in the box

• YB50 2 inch sliding-vane pump
• 2.2 kW motor with gear reducer, mounted as a set

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This set ships at 110 kg, which is over 100 kg, so delivery is on quotation. Ask us for the warranty terms on this model.
