YB65 2.5 Inch Vane Transfer Pump Set, 500 L/min, 4 kW 380V

Description

Overview

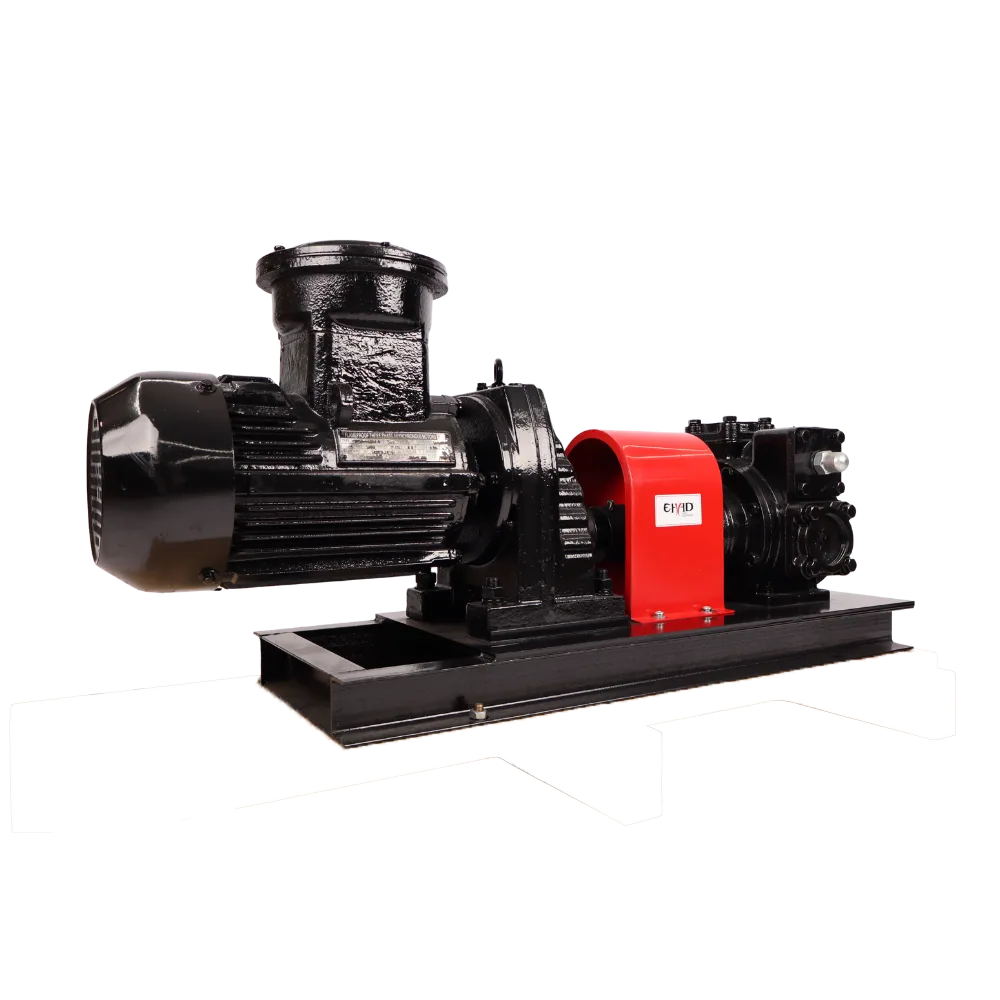

The YB65 is a 2.5 inch sliding-vane transfer pump set that moves 300 to 500 L/min of diesel, paraffin or light lubricating oil. A 4 kW motor (YBX3-112M-4) and gear reducer drive it from a 380V three-phase supply, and the whole set sits on one frame. It is the middle size in the YB range, suited to bulk tank filling where a 2 inch pump is too slow.

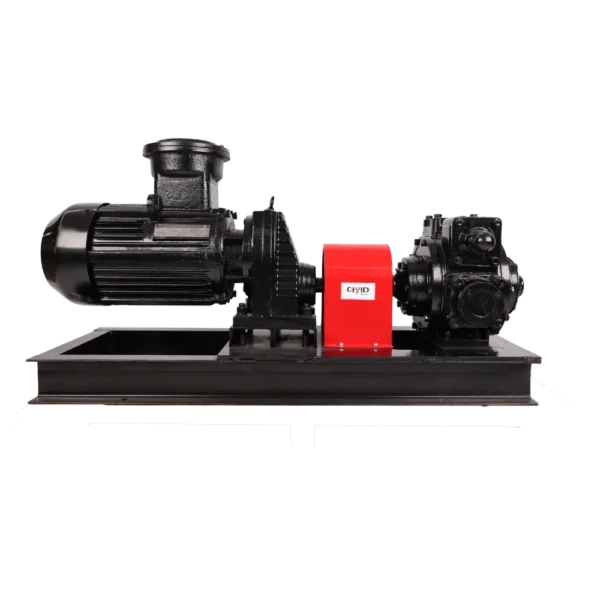

When the vanes wear, the YB65 vane and repair kit is the service part. For still more flow, look at the YB80 3 inch pump set. See all fuel transfer pumps as well.

Key features

• Self-priming sliding-vane pump in nodular cast iron
• Built-in bypass and relief valve with replaceable vanes
• 4 kW motor, 380V three-phase 50 Hz, 8.8 A, IP55, continuous duty
• Working pressure 5 bar
• 2.5 inch BSP female inlet and outlet

Where it works

Bulk fuel depots in Gauteng and KZN, Mpumalanga mines and large Free State grain farms use a 500 l/min diesel transfer pump of this class to fill tankers, bowsers and storage tanks. Transport companies in Limpopo use it for depot truck fills. You need a three-phase supply.

What’s in the box

• YB65 2.5 inch sliding-vane pump
• 4 kW motor with gear reducer, mounted as a set

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This set ships at 171 kg, which is over 100 kg, so delivery is on quotation. Ask us for the warranty terms on this model.
