YB100 4 Inch Vane Transfer Pump Set, 1900 L/min, 18.5 kW 380V

Description

Overview

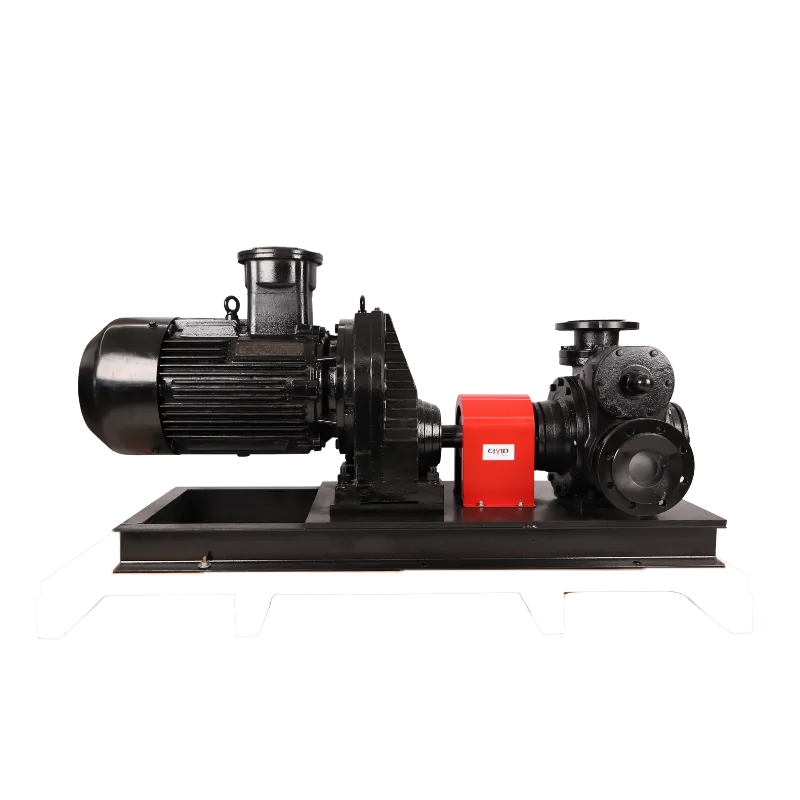

The YB100 is a 4 inch sliding-vane transfer pump set that moves up to 1900 L/min of diesel, paraffin or light lubricating oil. It comes as a complete motor-driven set: an 18.5 kW explosion-proof motor (YBX3-180-4) with a gear reducer drives the pump from a 380V three-phase supply. It is the largest in the YB range, built for bulk fuel depots and mine fuel bays.

For a smaller job, see the YB80 3 inch pump set at 1000 L/min or the YB65 2.5 inch pump set at 500 L/min. All are in our fuel transfer pumps category.

Key features

• Self-priming sliding-vane pump in nodular cast iron
• Built-in bypass and relief valve with replaceable vanes
• 18.5 kW motor, 380V three-phase 50 Hz, 36.5 A, IP55, continuous duty
• Gear reducer included, so it is ready to run as a set
• 4 inch BSP female inlet and outlet

Where it works

Mpumalanga coal mines and Northern Cape operations use a high volume diesel transfer pump like this to fill bulk tanks and refuel fleets fast. Large fuel depots in Gauteng and KZN move product between tanks and tankers with it, and big grain and sugar operations in the Free State and KZN use it for bulk diesel storage. It needs a proper three-phase supply.

What’s in the box

• YB100 4 inch vane pump
• 18.5 kW explosion-proof motor with gear reducer, mounted as a set

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This set ships at 595 kg, which is over 100 kg, so delivery is on quotation. Ask us for the warranty terms on this model.
