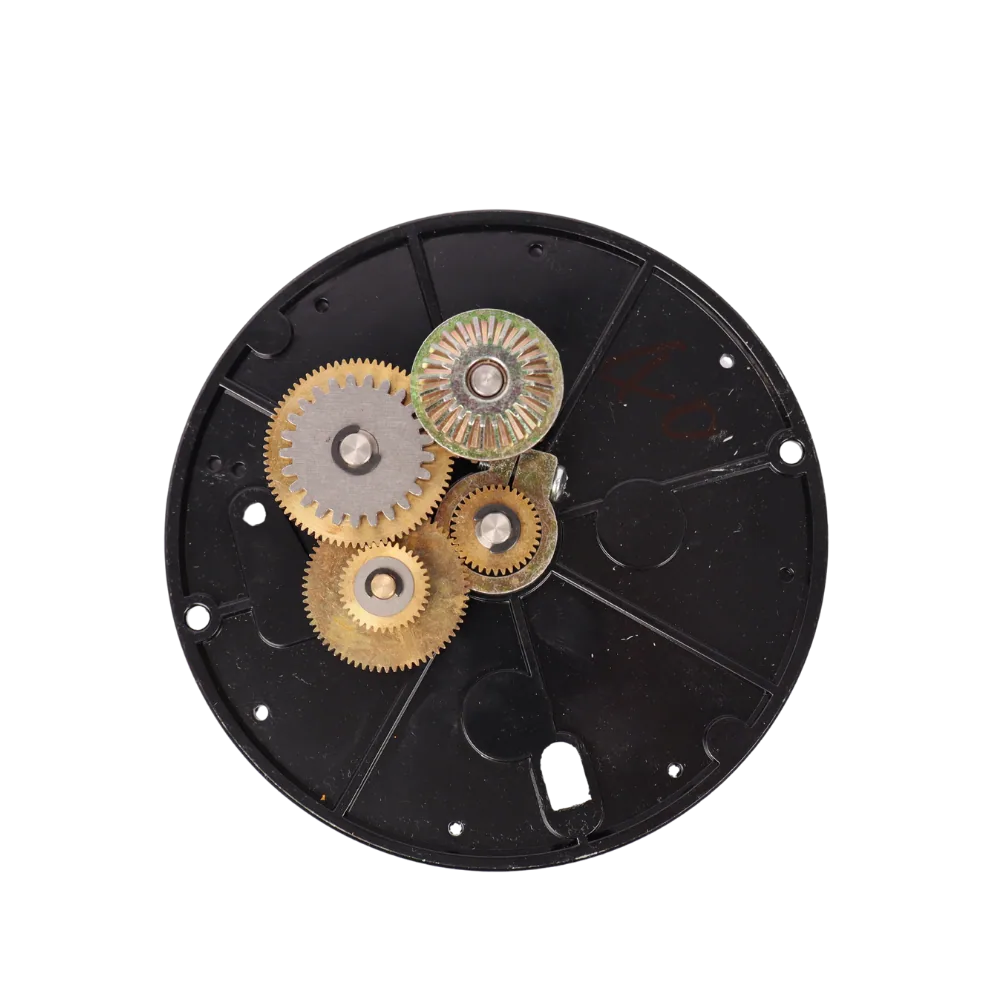

Gear plate drive assembly for M-series bulk flowmeter register, M-40 to M-100

Gear Plate for M-Series Bulk Flowmeter Registers, M-40 to M-100

Name: Gear Plate for M-Series Bulk Flowmeter Registers, M-40 to M-100
SKU: KMN-FUEL-0071
Price: 1408.05 ZAR
Availability: InStock

SKU KMN-FUEL-0071

A replacement gear plate that drives the register on M-40 to M-100 bulk flowmeters, for depots and mines repairing meters, delivered nationwide from Polokwane.

R1 408,05

Restores the drive between meter and register on a worn or damaged unit
Fits M-40, M-50, M-80 and M-100 registers
Aluminium alloy plate, 0.6 kg
Fix the meter you have instead of buying a new head

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Part type	Register gear plate (drive assembly)
Fits	M-40, M-50, M-80 and M-100 registers
Flow range	N/A (internal part)
Accuracy	N/A (internal part)
Connection size	N/A (mounts between meter and register)
Max pressure	N/A (internal part)
Material	Aluminium alloy
Display type	N/A (internal part)
Net weight	0.6 kg
Shipping weight	0.7 kg
Dimensions	200 × 200 × 60 mm (packed)

Description

Overview

This is a bulk flowmeter gear plate, the drive assembly that sits between an M-series meter body and its register and passes the measuring element’s rotation up to the counter. When its gears wear or a tooth breaks, the register slips, stops or reads short, even though the meter body is fine.

Swapping the gear plate is a bench job that brings the register back to life for a fraction of the cost of a new head. It suits the M-40, M-50, M-80 and M-100 registers that we supply.

Key features

Drive plate between meter body and register
Fits M-40, M-50, M-80 and M-100 registers
Aluminium alloy construction
Lets you repair a slipping or stalled register
Light part that ships in the lowest delivery band

Where it works

Keep a bulk flowmeter gear plate on the shelf if you run M-series meters on tanker bays, mine diesel receipt points in Mpumalanga or fleet depots in Gauteng, where a stalled register means fuel moving without a record. Workshops that service meters for fuel distributors also stock it for quick turnarounds. After fitting, check the reading against a calibrator for bulk flowmeters. If the whole head is worn out, replace it with a new mechanical register for bulk flowmeters. Find other spares in our flowmeter range.

What’s in the box

Gear plate for M-series bulk flowmeter register

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. The gear plate ships at about 0.7 kg, which puts it in the up to 30 kg band (R550). Delivery is free on orders of R20,000 or more, so it is worth adding the rest of your fuel kit to the same order. Ask us for the warranty terms on this model.

Questions about this product

How do I know the gear plate is the problem on my meter?

If fuel is clearly flowing but the register stops, jumps or reads well short, and the meter body is not leaking or seized, the drive between them is the usual suspect. Take the register off and look for worn or missing teeth. Send us a photo and the meter model and we will confirm it before you order.

Will this plate fit a meter from another supplier?

It is made for the M-40, M-50, M-80 and M-100 registers we sell. Many bulk meters share similar layouts, but tooth count and mounting holes vary. Measure the old plate or send us a clear photo with the meter nameplate and we will check fitment before you order.

Do you deliver to Witbank, and what does it cost?

Yes. Our own trucks run from Polokwane to all nine provinces, normally in 1 to 3 days, and Witbank is on the route. The gear plate weighs about 0.7 kg packed, so on its own it falls in the up to 30 kg band (R550). Add enough to reach R20,000 including VAT and the whole order ships free.
