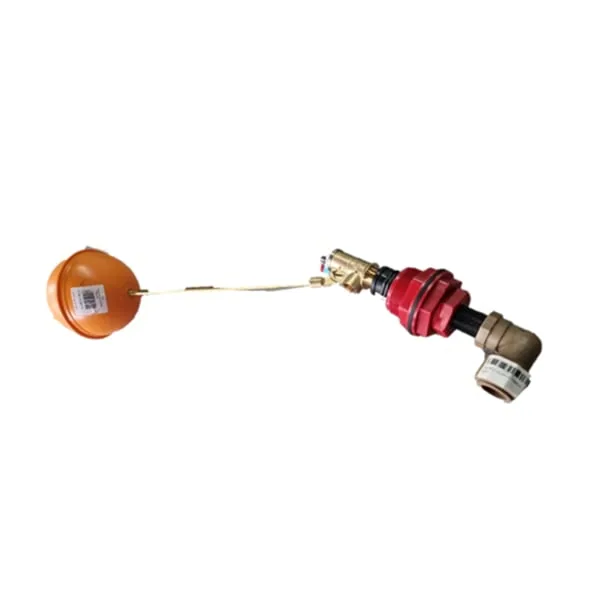

Float valve kit with 20mm brass valve, orange ball float and 40mm red tank connector

Float valve kit contents laid out: brass valve, reducing bush, nipple, socket and thread tape

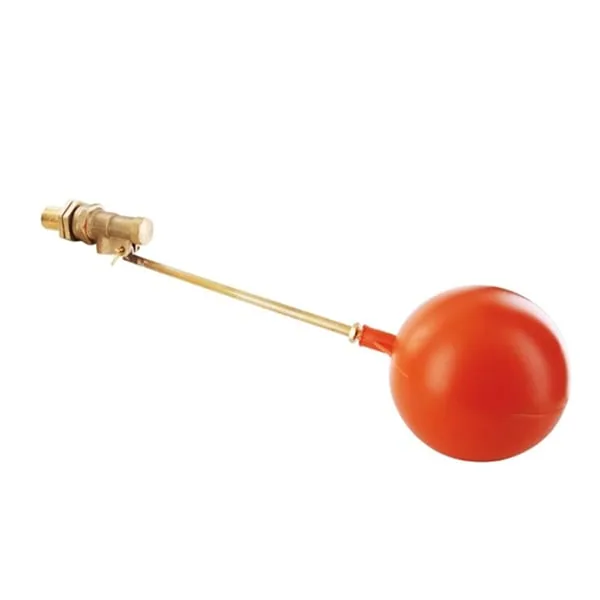

20mm brass float valve and orange ball from the tank float valve kit

Float Valve Kit, 20mm Brass Valve with Ball and Tank Connector

Name: Float Valve Kit, 20mm Brass Valve with Ball and Tank Connector
SKU: KMN-FITG-0045
Price: 428.00 ZAR
Availability: InStock

SKU KMN-FITG-0045

A complete 20mm brass float valve kit for water tanks from 500 L to 20,000 L, delivered across South Africa from Polokwane.

R428,00

Automatic shut-off stops tank overflow and wasted water
Brass 20mm valve, orange ball float and 40mm red tank connector
Suits tanks from 500 L up to 20,000 L
Includes thread tape, socket, running nipple and 40/20 reducing bush

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Valve size	20mm
Valve material	Brass
Tank connector	40mm, red
Suitable tank size	500 L to 20,000 L
Model code	FVK20MMK
Thread seal	Heavy duty tape, 12mm x 12m
Net weight	1.2 kg
Shipping weight	1.5 kg
Dimensions	300 × 200 × 120 mm

Description

Overview

This float valve kit gives a water tank automatic fill control in one box. It combines a 20mm brass float valve, an orange ball float, a 40mm red tank connector and the fittings that join them, so the valve closes by itself when the tank is full. One kit suits tanks from 500 L up to 20,000 L, from a small rainwater tank to a large farm storage tank. Fit it with basic hand tools and stop overflow and wasted water. You can browse more pipe fittings to complete the plumbing around it.

Key features

20mm brass float valve, model code FVK20MMK
Orange ball float on the valve arm
40mm red tank connector for the tank wall
40/20 reducing bush to step the connector down to the 20mm valve
PP socket and PP running nipple to complete the run
Heavy duty thread tape, 12mm x 12m, to seal the threads
Fits tanks from 500 L to 20,000 L

Where it works

On Limpopo farms a float valve kit keeps header tanks and stock-water tanks topped up from a borehole line, without anyone walking out to check the level. In Gauteng and KwaZulu-Natal homes it controls the feed into a ground or roof tank, which helps when load-shedding stops the pump and the supply returns later. Contractors on building and mining sites fit it to temporary storage tanks. If you only need the valve, see the 20mm plastic high capacity float valve, or the 50mm plastic float valve for a bigger inlet.

What’s in the box

1 x thread tape, heavy duty, 12mm x 12m
1 x PP socket, 20mm
1 x brass float valve, 20mm
1 x orange ball float
1 x PP running nipple
1 x 40/20 reducing bush
1 x 40mm red tank connector

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Mbombela, Rustenburg, Bloemfontein and Durban. The shipping weight is 1.5 kg, which falls in the lowest delivery band. Delivery is charged by total order weight (up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation) and is free on orders of R20,000 or more, VAT incl. Ask us for the warranty terms on this model.

Questions about this product

Which tanks does this float valve kit fit?

It is made for water tanks from 500 L up to 20,000 L. The 40mm red tank connector goes through the tank wall, and the 40/20 reducing bush steps down to the 20mm brass valve. Check that your tank has a 40mm fitting position before you order, or ask us and we will confirm.

Can I use it on a borehole or rainwater tank?

Yes. The valve closes when the float rises, so it works on borehole feed lines, municipal supply and rainwater diversion lines into a tank. It controls the water level only. It does not boost pressure or pump water, so you still need a pump or a gravity feed behind it.

Do you deliver the kit to Rustenburg or Mbombela?

Yes. We deliver with our own trucks to all nine provinces in 1 to 3 days. The kit ships at about 1.5 kg, so the delivery fee is R550 for orders up to 30 kg, and free on orders of R20,000 or more, VAT incl.
