15 m Stainless Steel Tank Dip Tape, Metric

Description

Overview

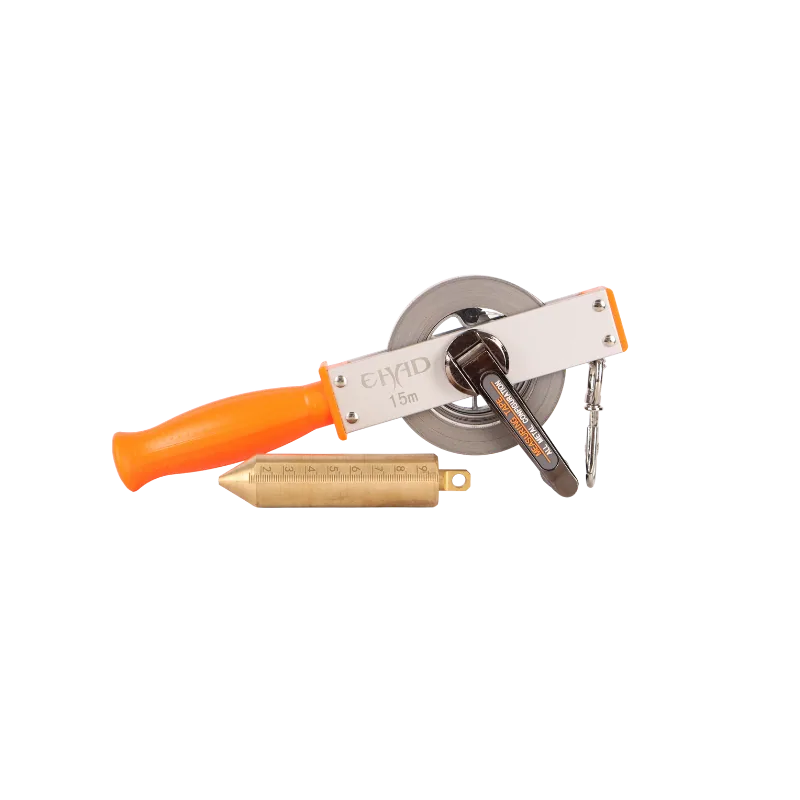

This 15 m dip tape is a stainless steel gauging tape wound in an anodised light-metal frame, used to measure the depth of liquid in a storage tank by hand. You lower the weighted end into the tank, read the wetted mark on the metric scale, and work out the volume from your tank chart. It is the longest of our three dip tapes in the range.

Use it with the fuel gauging paste to find the wetted line more easily. The 10 m dip tape gives you a different length for another tank.

To take a reading, lower the tape plumb into the tank until the weight touches the bottom, hold it steady for a moment, then pull it up and read the wetted line against the metric scale. Wipe the tape afterwards and wind it back into the frame so it does not kink. Use your tank chart to convert the depth to litres. Gauging paste on the weight makes the wetted line easier to see, especially in diesel.

Key features

• Stainless steel tape, 15 m long
• Metric graduation in millimetres
• Anodised light-metal frame with oblique handle
• Calibrated to a reference tension of 50 N at 20 C
• Net weight 1.1 kg, so easy to carry between tanks

Where it works

A dip tape is the cross-check every site wants when the electronic gauge or the dipstick is in doubt. This length suits deep underground and bulk tanks at mines in Mpumalanga and large depots in KZN. See the wider fuel station accessories range for gauging paste, glass tubes and tank accessories.

What’s in the box

• 1 x 15 m dip tape in frame

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and delivery is free on orders of R20,000 or more (VAT incl.). This item ships at 1.3 kg, so on a smaller order it falls in the up to 30 kg delivery band at R550. Ask us for the warranty terms on this model.
