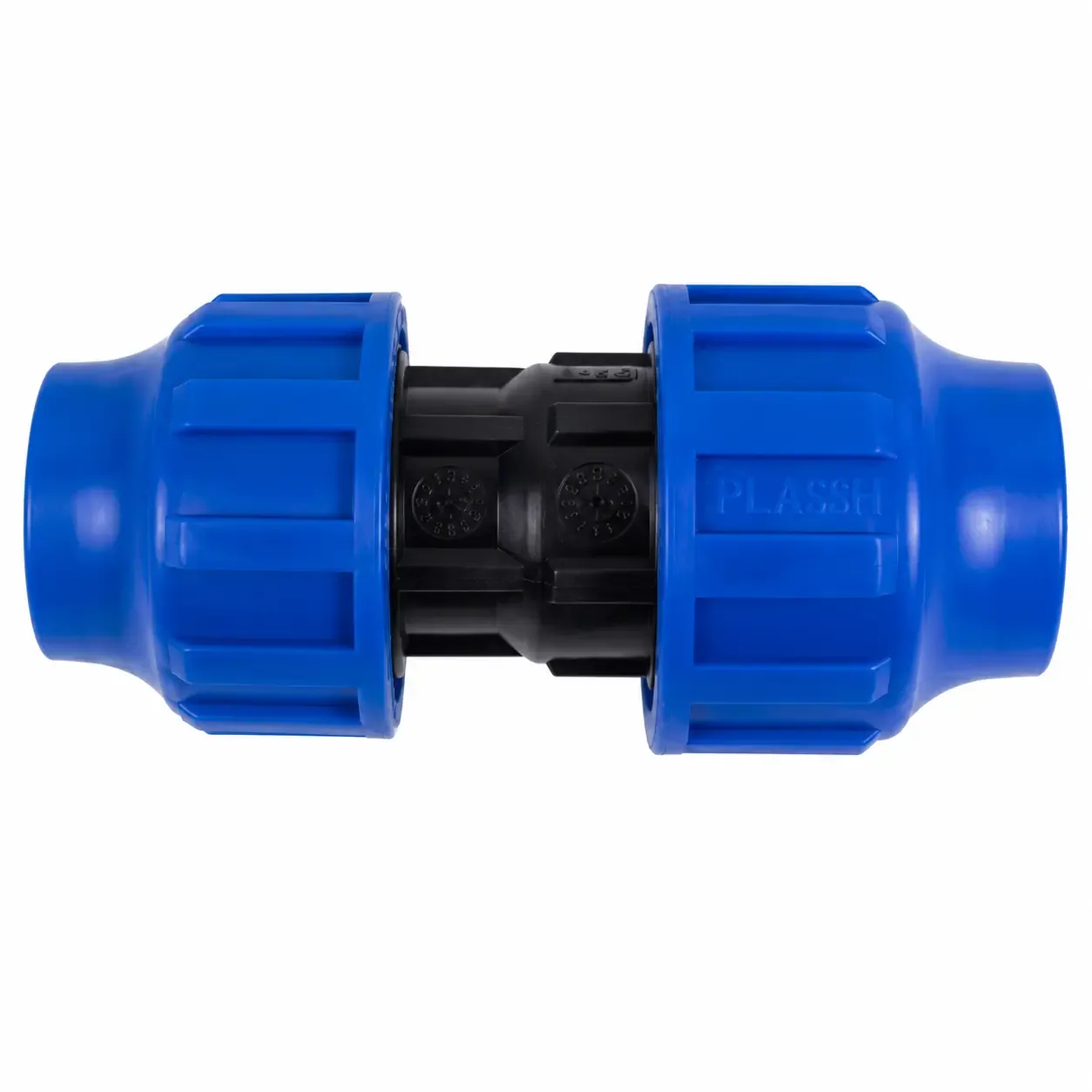

Plast Compression Reducing Coupler for HDPE Pipe, 25 mm to 50 mm

Description

Overview

This compression reducing coupler connects two HD polyethylene pipes of different diameters end to end. You step down from, say, 50 mm to 32 mm, in a single fitting that you fit by hand. It suits new installations, extensions and repairs where the pipe size changes mid-run.

A rubber O-ring inside each end creates the seal, so no heat, soldering or special joining gear is needed. The body is polypropylene, the rating is PN16 (16 bar) and the manufacturer states it is made to ISO 14236 and SANS 14236.

Key features

• Reduces from a larger to a smaller HDPE pipe
• Strong polypropylene construction
• Rubber O-ring creates a watertight seal
• Suitable for high-pressure and low-pressure lines
• Quick compression-fit installation
• PN16 rating, 16 bar
• Good for repairs as well as new pipework

Options

List the larger pipe size first. Prices include VAT.

• 25 x 20 mm: R 45
• 32 x 20 mm: R 35
• 32 x 25 mm: R 37
• 40 x 25 mm: R 45
• 40 x 32 mm: R 55
• 50 x 25 mm: R 64
• 50 x 32 mm: R 53
• 50 x 40 mm: R 77

Where it works

It turns up wherever a main tapers down: water supply to a farm homestead, pump discharge lines, tank installations and irrigation blocks in the Limpopo and Mpumalanga lowveld. To fit it, cut both pipes square and deburr them, loosen the nuts, push each pipe fully into the correct end and tighten. Always match the right pipe to each end, and do not overtighten the nuts. Where you also need a branch, use a reducing tee. For a threaded outlet at the end of the run, see the male elbow, or browse pipe fittings.

What’s in the box

• 1 x compression reducing coupler, selected size pair

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Mbombela, eMalahleni, Richards Bay, Durban, Gqeberha and East London. The heaviest option ships at about 0.3 kg, inside the R550 band for orders up to 30 kg. Delivery is free on orders of R20,000 or more (VAT incl.). Ask us for the warranty terms on this model.
