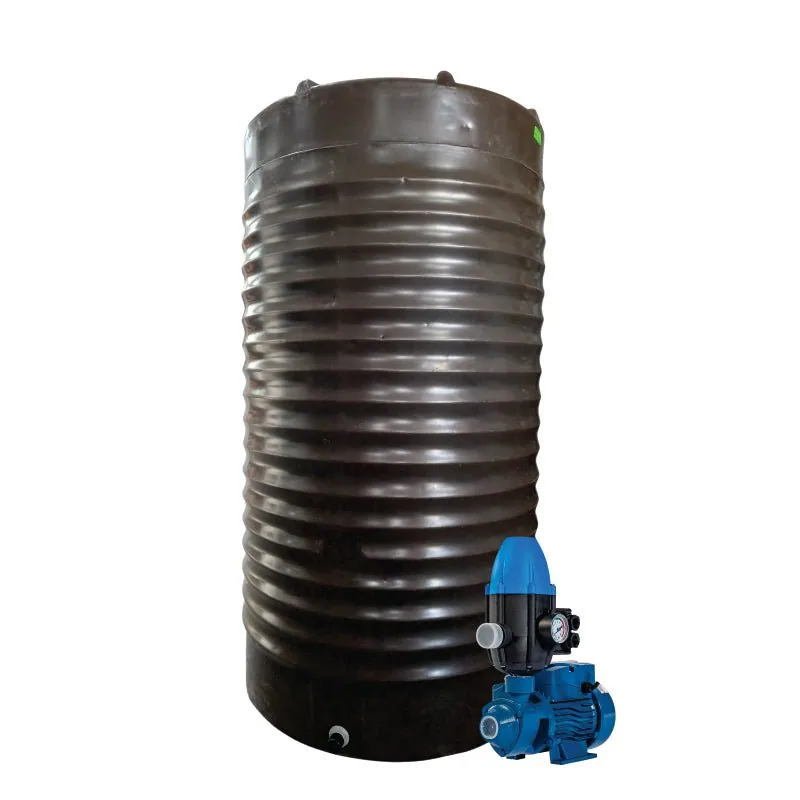

1200 L Slim Tank with 0.37 kW Peripheral Pump with Controller
SKU KMN-WATR-0139
A 1200 litre slimline tank paired with a 0.37 kW peripheral water pump with controller, for farms, homesteads and sites across South Africa, delivered from Polokwane.
R2 574,61
- 1200 L tank and 0.37 kW peripheral water pump with controller supplied as one combo
- 34 L/min (2 m³/h) at up to 36 m head
- 220 to 240 V, 50 Hz, single-phase
- Ships at 36.1 kg, delivered nationwide from Polokwane, VAT incl.
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 1200 L |
|---|---|
| Tank material | Rotomoulded polyethylene (LLDPE) |
| Pump type | Peripheral water pump with controller |
| Flow rate | 34 L/min (2 m³/h) |
| Max head / pressure | 36 m, 8 bar max operating pressure |
| Voltage / phase | 220 to 240 V, 50 Hz, single-phase |
| Power | 0.37 kW |
| Inlet / outlet | 1" x 1" (25 mm) |
| Self-priming | Foot valve required, suction lift up to 6 m (altitude dependent) |
| Duty cycle | On request |
| Fluid compatibility | Clean water, max 40 °C (controller rated to 60 °C) |
| Control | Automatic pressure control switch, starts at 1.5 bar, max 10 bar, IP65, 10 A |
| Pump materials | Cast-iron body and motor support, brass peripheral impeller, AISI 304 shaft, NBR/graphite/ceramic seal |
| Motor protection / installation | Thermal overload protector in winding |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 35.6 kg |
| Shipping weight | 36.1 kg |
| Dimensions | Tank Ø 955 × H 1800 mm |
Description
Overview
This 1200 litre tank with a 0.37 kW peripheral water pump with controller is a matched water storage and pressure set, supplied together so you can store water and pump it from one order. The 1200 litre tank and 0.37kw peripheral pump combo gives you 34 L/min (2 m³/h) at up to 36 m head. The peripheral pump trades flow for lift, and an automatic pressure control switch starts it at 1.5 bar and stops it when taps close.
The 1200 L slimline tank is a vertical rotomoulded polyethylene (LLDPE) tank measuring 955 mm across and 1800 mm tall, a squatter shape that suits spots with limited height. Compare the 1200 L Slim Tank with 0.37 kW Econo Booster Pump Kit and the 1000 L Slim Tank with 0.37 kW Peripheral Pump with Controller, or browse all tank and pump combo kits.
Key features
- 1200 L slimline vertical tank in rotomoulded LLDPE
- 955 mm diameter and 1800 mm height, lower than the 1000 L slim tank
- Automatic pressure control switch, starts at 1.5 bar, rated to 10 bar
- Peripheral impeller built for high head on modest flow
- Thermal overload protector in the motor winding
Where it works
A 1200 L tank gives a little more reserve than a 1000 L unit and stands about 1.8 m tall. With its high head it suits delivery up a slope or to an elevated tank, such as a hillside homestead in Mpumalanga or a farm yard in the Western Cape. On the right site it works as rainwater harvesting, a borehole buffer or a back-up supply for load-shedding days and municipal outages. Use clean water only, at no more than 40 °C.
What’s in the box
- 1 x 1200 L slimline vertical water tank
- 1 x 0.37 kW peripheral water pump with controller
- Automatic pressure control switch
- Suction pipe, foot valve and fittings are not listed with this combo, so ask us if you need a fitting kit
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Shipping weight is 36.1 kg, so delivery falls in the 30 to 60 kg, R950 band, and orders of R20,000 or more (VAT incl.) ship free. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
Do you deliver the 1200 L tank and pump combo to Welkom?
Yes, we deliver with our own trucks to all nine provinces in 1 to 3 days, including Welkom. This combo ships at 36.1 kg, which falls in the 30 to 60 kg, R950 delivery band. Orders of R20,000 or more (VAT incl.) get free delivery.
How high can the 0.37 kW peripheral pump push water?
It lifts water to about 36 m of head at up to 34 L/min, which suits an elevated tank or a rise on a sloping property. Flow is modest, so it feeds a few taps, not a large irrigation block. Fit a foot valve on the suction side, with a lift of up to 6 m.
Does the 1200 L tank need a base?
Yes. A slim tank must sit on a level, properly prepared base or a tank stand and stay in place once full. A full 1200 L tank holds about 1.2 tonnes of water, so make the slab or stand strong enough. The tank measures 955 mm across.
Are the pipes and foot valve included in this combo?
The combo is the 1200 L tank plus the 0.37 kW pump with its control. Suction pipe, foot valve, delivery pipe and tank outlet fittings are not listed with it. Tell us your layout and distance from tank to pump, and we will quote the fittings you need alongside it.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the 1200 L Slim Tank with 0.37 kW Peripheral Pump with Controller with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Kimberley, Secunda, Richards Bay, Upington, Tzaneen and Mahikeng, and to farms, mines and sites in between. This item ships in the R950 delivery band (30 to 60 kg). Orders of R20,000 or more deliver free with code KH027.
