800 L Tank Combo, 0.75 kW Pump, 120 L/min, UV Light and Filters

Description

Overview

This 800 L combo packs storage, a 0.75 kW pump, UV treatment and filtration into a footprint that fits beside a wall. The tank is a slim vertical LLDPE unit, 730 mm across and 1950 mm high, with one 40 mm inlet at the top and two 40 mm outlets at the base. The end-suction pump delivers up to 120 L/min at 32 m of head with a flow controller. A 55 W UV-C light and a triple 20-inch filter frame clean the water. It is an 800l water tank with pump, UV light and filters for small homes and cottages.

Key features

• Single-impeller 0.75 kW (1 HP) pump with 100 per cent copper winding
• Brass impeller, cast-iron body and a ceramic and graphite seal
• 3.2 bar maximum pressure, 7 m suction height, continuous duty
• 55 W UV-C light with fitting kit and safety glasses
• Triple filter frame removes sand, rust, mud and chlorine
• Two base outlets on the tank, so you can feed the pump and a second line
• Pump cover, suction hose kit and float valve kit supplied

Options

The tank can be Green, Grey or Tan. The pump, UV light and filters are identical, and each colour is R 10,640 (VAT incl.).

Where it works

A narrow 800 L tank suits a cottage in the Western Cape, a townhouse in Gauteng or a staff house on a Limpopo farm where the yard is tight. It holds roof rainwater or evens out a weak municipal supply, and the filters and UV light improve the water quality for the kitchen. Small storage means high turnover, so extra UV capacity may be needed with heavy use. For more storage, see the 2500 L smart VSD combo or the 5000 L UV and filter combo. Browse tank and pump combo kits.

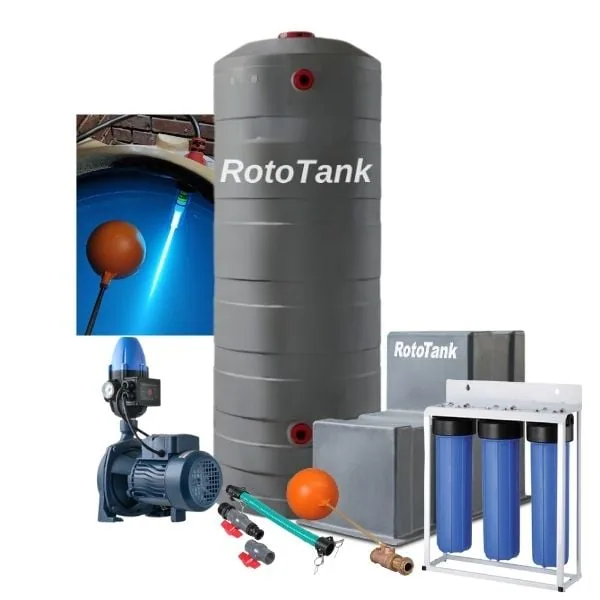

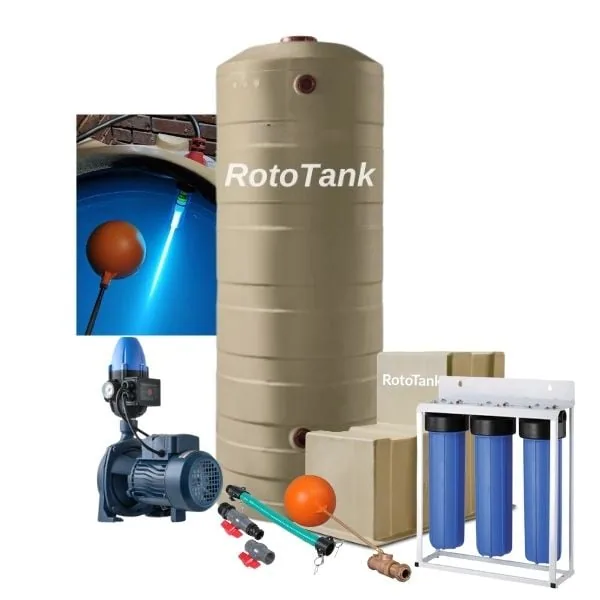

What’s in the box

• 1 x vertical 800 L slimline tank with 40 mm sealed connectors
• 1 x 0.75 kW pump with flow controller
• 1 x 55 W submersible UV-C light with fitting kit
• 1 x triple 20-inch filter frame with key
• 1 x pump cover, 1 x suction hose kit, 1 x float valve kit

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Cape Town, Pretoria, Mbombela, Mahikeng, Pietermaritzburg and Richards Bay. The packed kit weighs about 58 kg, which falls in the 30 to 60 kg band at R950. Orders of R20,000 or more (VAT incl.) are delivered free. Tank warranty: 1 to 2 years, depending on the model. Ask us for the warranty terms on the pump, UV light and filters. Installation is not included.
