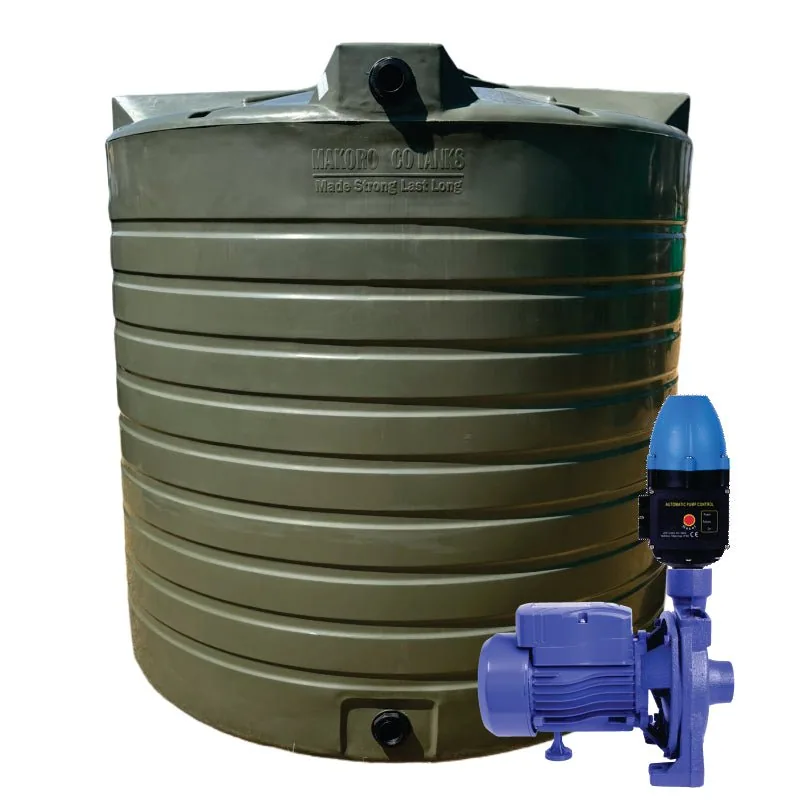

10 000 L Water Tank with 0.75 kW Monoblock Pump and Controller
SKU KMN-WATR-0124
A 10 000 L water tank with a 0.75 kW monoblock pump and controller delivering up to 100 L/min, for farms, lodges and homes across South Africa.
R13 781,46
- 10 000 L tank with 0.75 kW monoblock pump
- Up to 100 L/min, 32 m maximum head, 1″ ports
- Controller handles starting and stopping
- 230 V single-phase
- Quote on delivery, shipping weight 197 kg
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Tank capacity | 10 000 L (10 300 L maximum) |
|---|---|
| Tank material | 100% virgin LLDPE, double-layer, rotomoulded, black inner liner |
| Tank dimensions | approx. Ø 2200 × 3000 to 3150 H mm |
| Manhole | 45 cm |
| Pump type | Centrifugal monoblock with pressure/flow controller |
| Power | 0.75 kW |
| Voltage / phase | 230 V, 50 Hz, single-phase |
| Flow rate | Up to 100 L/min (6 m³/h) |
| Max head | 32 m |
| Inlet / outlet | 1" ports |
| Self-priming | On request |
| Duty cycle | On request |
| Fluid compatibility | Clean water, max 40 °C |
| Pump materials | Cast-iron body, brass or stainless impeller, AISI 304 shaft, graphite/ceramic seal |
| Motor protection | Thermal overload protector in winding |
| Speed | 2850 rpm |
| Warranty | Tank: 1 to 2 years, depending on the model |
| Net weight | 196 kg |
| Shipping weight | 197 kg |
| Dimensions | Tank approx. Ø 2200 × 3000 to 3150 H mm |
Description
Overview
This 10 000 L water tank and pump kit combines bulk storage with a 0.75 kW centrifugal monoblock pump and controller. The pump moves up to 100 L/min (6 m³/h) against a head of up to 32 m at 2850 rpm, which is a good all-round setup for a farmhouse, workers’ housing or a small irrigation block.
The controller starts the pump when a tap opens and stops it when flow ends, so nobody has to switch it by hand.
A 10000l tank and 0.75kw pump is a combination many farms treat as the standard set-up.
Key features
- 10 000 L vertical LLDPE tank, 10 300 L at maximum fill
- Double-layer rotomoulded wall, BPA-free, with black inner liner to limit algae
- Screw-on lid with handles and a 45 cm manhole
- 0.75 kW monoblock pump, 230 V single-phase, 1″ ports
- Pressure and flow controller for automatic operation
- Cast-iron body, brass or stainless impeller, AISI 304 shaft
- Thermal overload protector in the motor winding
Where it works
The 0.75 kW monoblock is the workhorse choice for Free State and Limpopo farms that want a buffer tank and decent flow without paying for variable-speed electronics. It suits workers’ housing, small feedlots, packing sheds and lodge gardens, and ties neatly into a borehole refill.
If you want quieter, steadier pressure, compare the 10 000 L tank with 0.75 kW Intelli VSD booster. For a smaller budget, the 10 000 L tank with 0.55 kW monoblock pump costs less. All kits are listed under tank and pump combo kits.
The pump is for clean water up to 40 degrees Celsius.
With a 10000l tank and 0.75kw pump you keep a large reserve behind the taps when the municipal supply drops.
What’s in the box
- 10 000 L vertical water tank with lid
- 0.75 kW monoblock pump
- Pressure/flow controller
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Shipping weight is 197 kg. Orders over 100 kg are delivered on quotation, so ask us for a price to your town or farm. Kits over 100 kg are delivered on quotation, so tell us your town and we will price it. The tank carries a warranty of 1 to 2 years, depending on the model, confirmed on your quote. Ask us for the pump warranty terms.
Questions about this product
What is the difference to the peripheral pump kit?
The monoblock gives higher flow, up to 100 L/min at 32 m head. The peripheral pump gives less flow, 60 L/min, but higher head, up to 60 m. Pick the monoblock for volume to taps and hoses, the peripheral for pushing water higher or further. We can help you pick the right one.
Can I fill the tank from a borehole?
Yes, the tank is a storage vessel and you can feed it from a borehole, rain harvesting or a municipal line. This kit pump then draws from the tank to your taps. A separate borehole pump is not included. You can also feed it from a municipal line or a rain-harvesting system.
Is delivery to a farm in the Karoo possible?
Yes, we deliver to all nine provinces. At 197 kg shipping weight this kit is over 100 kg, so delivery is by quotation. Give us the farm location and we will price it, usually within 1 to 3 days from Polokwane.
