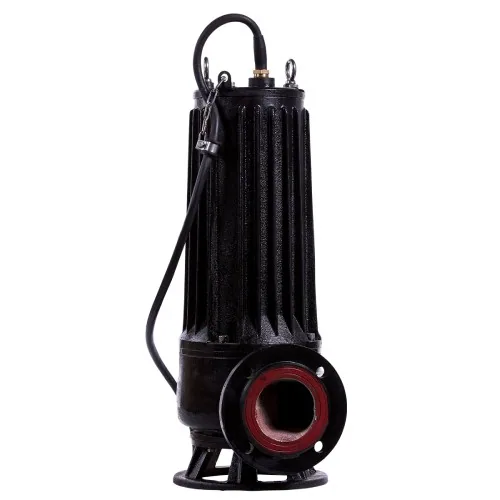

7.5 kW cast iron raw sewage submersible pump, 100 mm outlet, 380 V

7.5 kW cast iron raw sewage submersible pump, 100 mm outlet, 380 V, side view

7.5 kW cast iron raw sewage submersible pump, 100 mm outlet, 380 V, detail view

7.5 kW Raw Sewage Submersible Pump, 100 mm, 380 V, 135 m³/h

Name: 7.5 kW Raw Sewage Submersible Pump, 100 mm, 380 V, 135 m³/h
SKU: KMN-SUBM-0042
Price: 25120.00 ZAR
Availability: InStock

SKU KMN-SUBM-0042

A 7.5 kW, 380 V cast iron submersible raw sewage pump with an inlet cutter, 100 mm outlet and up to 135 m³/h, delivered across South Africa.

R25 120,00

Cast iron pump and impeller with an inlet cutter for stringy solids
Up to 135 m³/h and 30 m head from a 7.5 kW three-phase motor
100 mm outlet, 8 m cable, double mechanical seal
Adjustable bottom plate to restore impeller clearance

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 135 m³/h
Max head / pressure	30 m
Voltage / phase	380 V to 415 V, three phase, 50 Hz
Power	7.5 kW (10 HP), 15.7 A, 2-pole
Inlet / outlet	Star-shaped cutter inlet / 100 mm outlet
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Raw sewage and sludge to 40 °C, density to 1.3 g/cm³, pH up to 10 (as listed)
Solids passage	50 mm
Max immersion depth	10 m
Cable length	8 m
Protection	IP68, insulation class B
Construction	Cast iron pump body and open single-channel impeller, double mechanical shaft seal
Net weight	98 kg
Shipping weight	106 kg

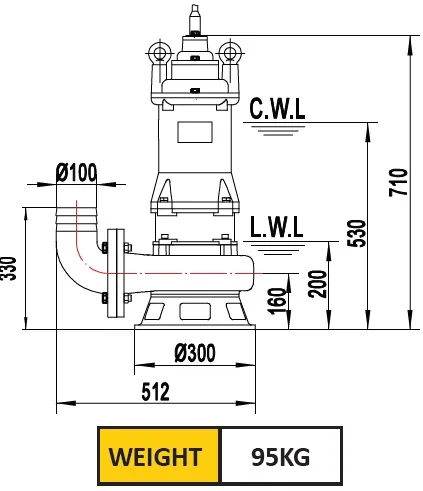

Dimensions	560 x 480 x 800 mm

Description

Overview

This 7.5 kW raw sewage pump is a cast iron submersible that moves up to 135 m³/h at heads up to 30 m. It suits sumps and pump stations where rags, fibre and soft solids would choke an ordinary drainage pump: with a 50 mm solids passage for busy pump stations and industrial effluent.

The star-shaped inlet grabs stringy solids and holds them against a cutter, which reduces them to a size the open single-channel impeller can pass into the volute. An adjustable bottom plate lets you reset the clearance to the impeller as it wears, which keeps efficiency up between services. The motor is a 7.5 kW (10 HP) two-pole unit on 380 V to 415 V three phase, drawing 15.7 A, with an 8 m cable and a double mechanical seal.

Key features

Cutter mechanism at the inlet chops stringy solids
Adjustable bottom plate restores impeller clearance
Open single-channel cast iron impeller
Double mechanical seal: silicon carbide against silicon carbide, carbon graphite against ceramic
IP68 protection, insulation class B, immersion to 10 m
Liquids to 40 °C, density to 1.3 g/cm³

Where it works

Use it in septic and sewage sumps, municipal lift stations, farm effluent pits in Limpopo, mine settling sumps and industrial wastewater tanks. For a different duty compare the 5.5 kW raw sewage pump with 100 mm outlet and the 50B25.5 5.5 kW channel impeller sewage pump, or browse all submersible pumps.

What’s in the box

1 x 7.5 kW raw sewage submersible pump with 8 m power cable

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Cape Town, Polokwane, Richards Bay, Bloemfontein and eMalahleni. At a shipping weight of 106 kg this pump is over 100 kg, so delivery is on quotation. Orders of R20,000 or more (VAT incl.) are delivered free.

Ask us for the warranty terms on this model.

Questions about this product

What power supply does the 7.5 kW raw sewage pump need?

It needs a 380 V to 415 V three-phase supply and draws 15.7 A at full load. Size the cable, breaker and starter for that current and have a qualified electrician fit a motor protection starter. It will not run from a normal 230 V single-phase socket.

Can it handle rags and solids in raw sewage?

Yes, within limits. The star-shaped inlet and cutter reduce stringy material before it reaches the impeller, and the open single-channel impeller then passes solids up to 50 mm. It is for sewage and sludge up to 40 °C. It is not meant for abrasive grit, chemicals or hot liquids.

Do you deliver to Johannesburg?

Yes. Kamano delivers with its own trucks from Polokwane to Johannesburg and every other province in 1 to 3 days. At a shipping weight of 106 kg this pump is over 100 kg, so delivery is quoted for your address. Orders of R20,000 or more (VAT incl.) ship free. Send us the site address and we confirm the delivery cost on your quote.
