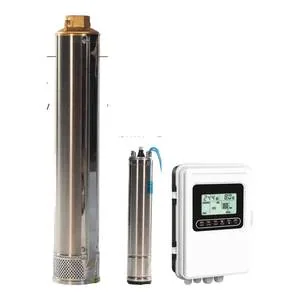

4ST1/38 4 inch borehole pump 1.1kW 253m max head, set with motor and controller

4ST1/38 4 inch borehole pump 1.1kW 253m max head, outlet end and cable guard

4ST1/38 4″ Borehole Pump, 1.1 kW, 253 m Max Head

SKU KMN-BORE-0260

The 4ST1/38 is a 1.1 kW, 253 m head 4 inch borehole pump for farms and homesteads, supplied as a set or pump end only and delivered across South Africa.

Price range: R5 856,00 through R10 312,00

Lifts water up to 253 m, up to 1.5 m³/h (25 L/min)
4 inch stainless steel multistage pump, 1.1 kW motor
Complete sets for 220 V single-phase, 380 V three-phase or pump end only
From R 5,856 VAT incl., delivered from Polokwane

Configuration

Clear

Request Bulk Quote Ask on WhatsApp

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Model	4ST1/38 (Vega 4ST1 range)
Pump diameter	4 inch, fits boreholes of 100 mm internal diameter or more
Flow rate	Nominal around 1 m³/h, up to 1.5 m³/h (25 L/min)
Max head / pressure	253 m
Duty points	0 L/min at 253 m; 5 L/min at 234 m; 10 L/min at 208 m; 15 L/min at 169 m; 20 L/min at 117 m; 25 L/min at 52 m
Power	1.1 kW oil-filled motor
Voltage / phase	220 V single-phase, 380 V three-phase, by option
Controller	MA analogue control box, 20Y intelligent controller (dry-run protection), Y1 digital protection controller, by option
Inlet / outlet	On request
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean borehole water
Pump body and shaft	Stainless steel
Net weight	20.1 kg
Shipping weight	25 kg
Dimensions	1116 x 250 x 150 mm

Description

Overview

The 4ST1/38 is a 4 inch stainless steel multistage submersible borehole pump from the Vega 4ST1 range, with a maximum head of 253 m and up to 1.5 m³/h (25 L/min) at lower heads. At 10 L/min it still produces 208 m of head. This 1.1kw 4 inch borehole pump runs on a 1.1 kW oil-filled motor and fits boreholes with an internal diameter of 100 mm or more.

To size it, add the depth to the water level, the height up to your tank and about 10% for pipe friction. At 10 L/min this one suits a water level of roughly 175 m with 10 m of lift above ground. Send us your borehole details if you are unsure.

Key features

Stainless steel pump body and shaft, nominal flow around 1 m³/h
1.1 kW oil-filled motor in every set
Sold as a complete set or pump end only, to swap a worn wet end

Options

Prices include VAT.

220V set + analogue control box, R 8,288: pump end, 1.1 kW 220 V single-phase motor, basic starter.
220V set + 20Y intelligent controller, R 9,808: pump end, 1.1 kW 220 V single-phase motor, dry-run protection for low-yield boreholes.
380V 3-phase set + Y1 controller, R 10,312: pump end, 1.1 kW 380 V three-phase motor, digital protection.
Pump end only (no motor), R 5,856: wet end only, to replace a worn pump end on an existing 1.1 kW motor.

Where it works

Very deep, small-yield boreholes in the Karoo and the Northern Cape need this much head at a low flow. It suits remote farmsteads and game camps where the water is a long way down and the yield is modest. See all borehole pumps, or compare the 4ST1/19 borehole pump and the 4ST1/13 borehole pump.

What’s in the box

The 4ST1/38 pump end
Motor and controller, in the complete-set options

Not included: submersible cable, rope, delivery pipe and base plate.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Durban, Richards Bay, East London, Johannesburg, Bloemfontein and Polokwane. Fees follow total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, over 100 kg on quotation. The heaviest option ships at about 25 kg, in the R550 band. Orders of R20,000 or more (VAT incl.) ship free. Ask us for the warranty terms on this model.

Questions about this product

Which 4ST1/38 option do I need for my power supply?

Choose the 220 V single-phase sets or the 380 V three-phase set with Y1 controller for your supply. The analogue box is the basic starter and the 20Y adds dry-run protection. Only the options listed under Options apply to this model, and the prices shown include VAT. Send us your supply details if you are unsure which set to order.

How deep can I set the 4ST1/38 in my borehole?

Add the depth to your water level, the height up to your tank and about 10% for friction. At 10 L/min this pump gives 208 m, which suits a water level of roughly 175 m with 10 m of lift above ground. Its shut-off head is 253 m. Deeper than that, you need a higher-head pump.

Do the sets come with cable and delivery pipe?

No. Submersible cable, rope, delivery pipe and the base plate are not included in any option, so add those to your order or supply them yourself. Each set includes only the pump end, motor and controller listed under its option, and the pump end option is the wet end alone.

How much is delivery of the 4ST1/38 to George?

We deliver to George with our own trucks in 1 to 3 days. Fees follow total order weight. The heaviest set ships at about 25 kg, in the R550 band. A pump end on its own is much lighter. Orders of R20,000 or more are delivered free.
