4-inch Borehole Motor 5 kW 220 V Three-Phase, Oil-Filled, for VSD and Solar

Description

Overview

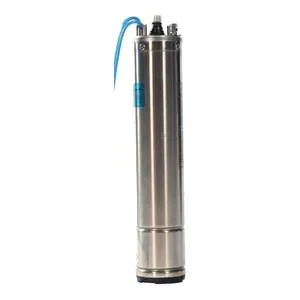

The 4-inch 5 kW 220 V borehole motor is an oil-filled submersible motor that turns your pump end from inside the borehole. It is wound for 220 V three-phase and made to be driven by a single-phase-to-three-phase VSD or a solar pump inverter. That gives you soft starting and speed control from a normal household supply or from solar panels. Do not connect it directly to a 220 V single-phase plug: it must always run from a VSD or inverter.

Always match motor power and voltage to your pump end and your supply. Not sure what you need? Send us the pump model and we will check it with you.

Key features

• 5 kW output on a 220 V three-phase supply, for VSD or inverter use
• Sealed oil-filled 4-inch submersible body
• Fits boreholes of 100 mm and larger
• Suits standard 4-inch pump ends
• Soft starting and speed control when driven by a VSD or solar inverter

Where it works

Solar pumping on remote stock farms and lodges across the Northern Cape, Limpopo and KZN, and VSD-driven household boreholes. The 5 kW size is a good match when your pump end calls for exactly this power rating, so check the pump data plate before you order.

Browse the rest of the borehole pumps and motors range, or compare the 4 kW 220 V motor and the 5.5 kW 380 V motor.

What’s in the box

• 1 x 4-inch 5 kW 220 V oil-filled borehole motor
• Starter, controller and pump end are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Durban, Upington, Polokwane, Gqeberha and Klerksdorp. Delivery is priced by total order weight. This motor ships at 19 kg, which falls in the up to 30 kg band at R550, and orders of R20,000 or more (VAT incl.) are delivered free. Ask us for the warranty terms on this model.
