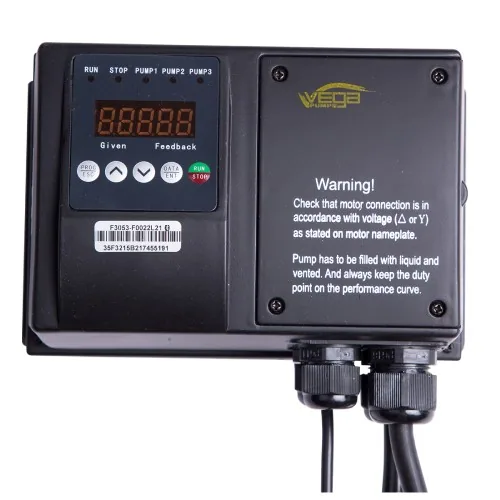

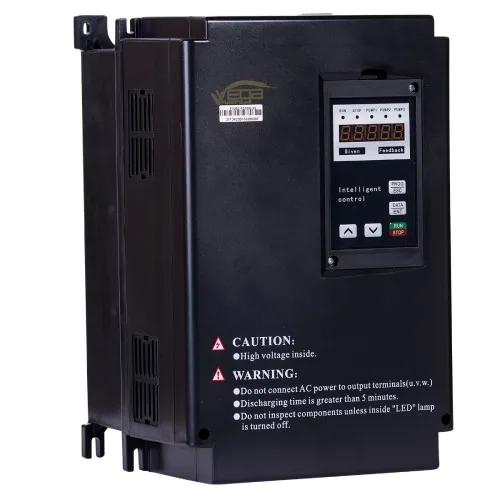

22 kW 525 V Variable Speed Drive, 36.8 A, Three-Phase

Description

Overview

This 22 kW (30 HP) variable speed drive is made for pump sets on a 525 V three-phase supply, and it is rated at 36.8 A. By altering the frequency to the motor it lets a large pump run at the speed the duty needs, rather than at full speed all the time. 525 V is the voltage you meet on many mines, so the drive saves you the trouble of stepping the supply down.

A drive on a 525 V pump set soft starts the motor and follows demand, which reduces wear and cuts power use at part load. For the same power on 380 V use the 22 kW 380 V variable speed drive, and for a 30 kW motor on 525 V the 30 kW 525 V drive is the next size up.

Key features

• Rated 22 kW (30 HP) at 36.8 A on a 525 V three-phase supply
• Controls motor speed by changing output frequency
• Soft start limits mechanical shock to the pump and column
• Saves electricity when the pump runs below full load
• Suits 525 V pump sets and constant-pressure systems
• Confirm the supply voltage on site before you order

Where it works

Mines in Mpumalanga, Limpopo and the North West run 525 V reticulation, and large pumps for dewatering, process water and tailings feed are the typical loads. Deep borehole sets on big farms and water schemes that share a 525 V supply also use drives of this size. Explore our other pump controllers and VSDs to match each motor on the site.

What’s in the box

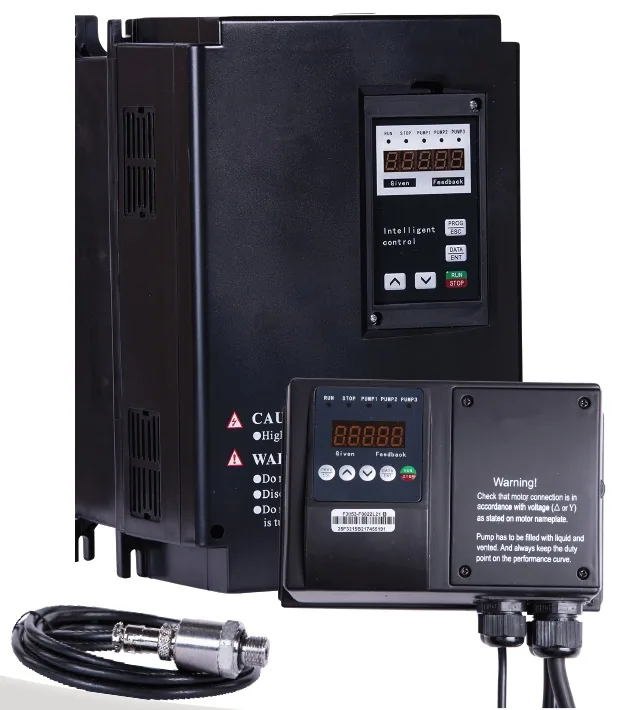

• 1 x 22 kW 525 V variable speed drive

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Rustenburg, Klerksdorp, eMalahleni, Mbombela and Kimberley. Shipping weight is about 16 kg. This drive is priced above R20,000 (VAT incl.), so delivery is free. Ask us for the warranty terms on this model.
