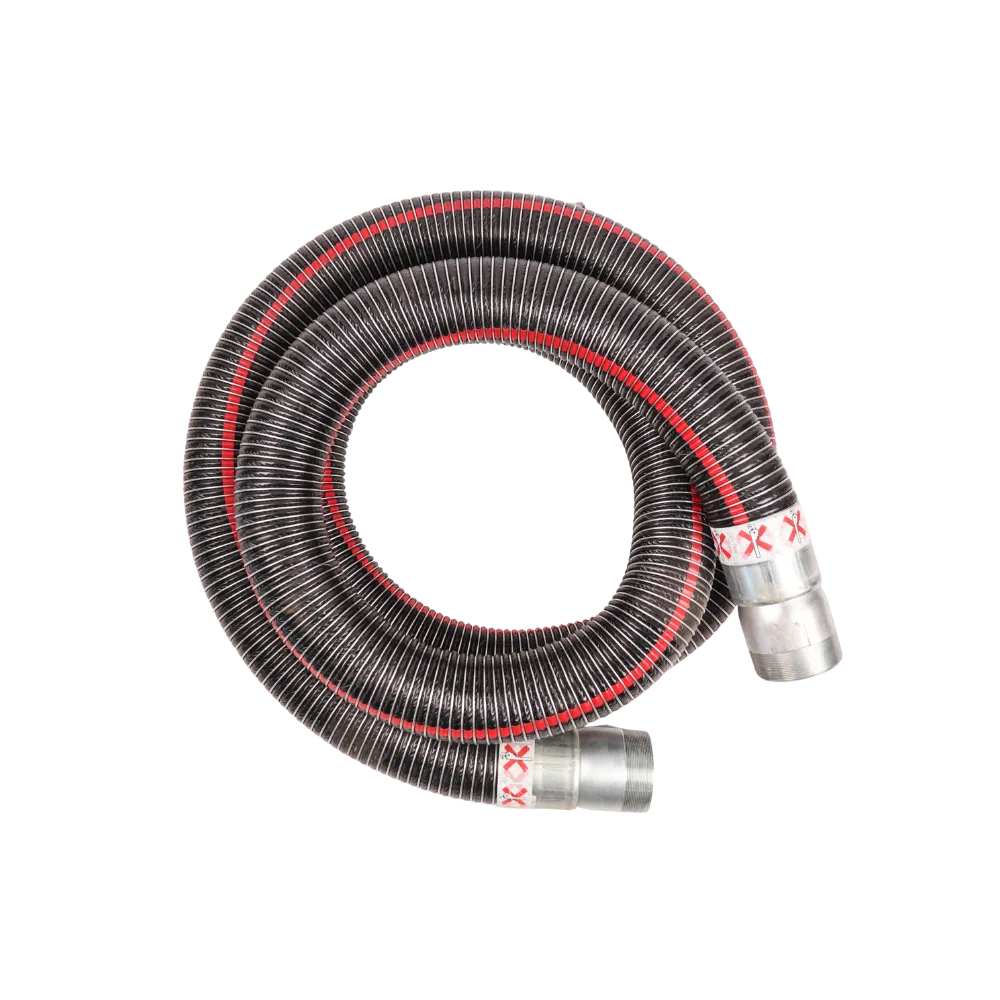

100 mm Composite Fuel Hose, 4.5 m, Swage Nipple and Barret Coupling
SKU KMN-FUEL-0127
A 4.5 m, 100 mm composite petroleum hose with a Barret gravity coupling for tanker offloading, delivered from Polokwane in 1 to 3 days.
R5 055,75
- Ready-made offloading hose, fittings already swaged on
- Barret coupling connects to tanker gravity outlets quickly
- 100 mm (4″) bore, 4.5 m long, 7 bar
- Flexible from -30 °C to +80 °C
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Hose type | Composite petroleum hose |
|---|---|
| Bore | 100 mm (4") |
| Length | 4.5 m |
| Working pressure | 7 bar (3:1 safety factor) |
| Temperature range | -30 °C to +80 °C |
| Min bend radius | 360 mm |
| Construction | PP lining, galvanised inner wire, aluminium outer wire, PVC-coated polyester cover |
| End fittings | Swage nipple one end, Barret gravity coupling other end |
| Weight per metre | About 6 kg/m |
| Net weight | 30 kg |
| Shipping weight | 32 kg |
| Dimensions | N/A (100 mm bore × 4.5 m, ships coiled) |
Description
Overview
This composite hose 100mm assembly is a 4.5 m petroleum offloading hose with a swage nipple on one end and a Barret gravity coupling on the other. It is built for road tanker drops into storage tanks, where you need a big bore for fast flow and a fitting that couples quickly to the tanker outlet. The layered construction keeps it light enough for one person to handle compared with rubber hose of the same size.
Fit a 4″ breakaway coupling in the line for drive-off protection. For a smaller 2″ transfer line, the 50 mm composite fuel hose uses the same construction.
Key features
- 100 mm (4″) bore, 4.5 m assembly
- Swage nipple one end, Barret gravity coupling the other
- 7 bar working pressure with a 3:1 safety factor
- Polypropylene lining with galvanised and aluminium wire helix
- 360 mm minimum bend radius, -30 °C to +80 °C
Where it works
Fuel distributors and mines receiving full tanker loads use a composite hose 100mm assembly at the offloading point, from Mpumalanga coal sites to Northern Cape iron ore operations. It also suits farm co-op depots in the Free State that take bulk diesel deliveries before harvest. Hang it on a rack after use so it drains and does not get crushed by vehicles. Browse matching couplings in our fuel hose and fittings range.
What’s in the box
- 100 mm composite hose, 4.5 m, with swage nipple and Barret coupling fitted
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The assembly ships at 32 kg, which falls in the 30 to 60 kg band at R950. It travels coiled and wrapped. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.
Questions about this product
What is a Barret coupling?
It is a quick-connect gravity coupling widely used on road tanker outlets for fuel offloading. It lets the driver couple and uncouple the hose quickly without tools. Check that your tanker or tank inlet uses the same coupling type and size before ordering, or send us a photo and we will confirm.
Why composite hose instead of rubber?
Composite hose is much lighter than rubber at the same bore and stays flexible, so it is easier to drag and coil at an offloading point. It handles petroleum products well and is rated to 7 bar. The trade-off is that it must not be crushed or kinked below its 360 mm bend radius.
How much is delivery?
The assembly ships at 32 kg, which puts it in the 30 to 60 kg band at R950 to anywhere in South Africa. Our own trucks run from Polokwane and normally arrive in 1 to 3 days. If your order totals R20,000 or more including VAT, delivery is free.
