50 mm Composite Fuel Hose, 6 m, 7 Bar, Swage Nipple Ends

Description

Overview

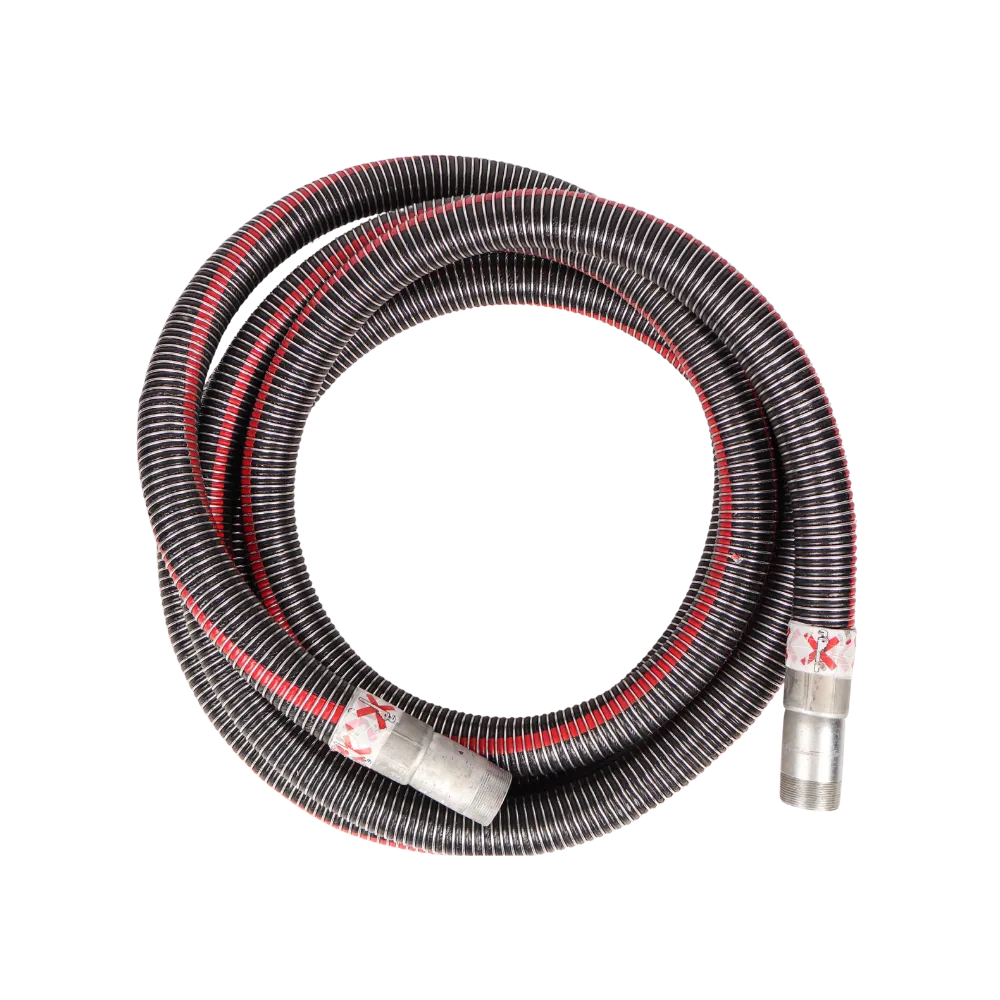

This 50mm composite hose is a 2″ petroleum transfer hose with swage nipples fitted on both ends. It carries diesel, petrol and oils between a transfer pump, tank and bowser at much higher flow than a 1″ rubber line, while staying lighter and easier to coil. The swage nipple ends let you fit camlocks, valves or adaptors to suit your pump.

Our supplier’s specification lists this assembly at 6 m, so that is the length we quote; confirm the length with us before ordering if you need exactly 10 m. For bigger tanker offloading, step up to the 100 mm composite hose with Barret coupling, and join hoses with a fuel hose connector.

Key features

• 50 mm (2″) bore
• Swage nipple fittings on both ends
• 7 bar working pressure, 3:1 safety factor
• Polypropylene lining with galvanised and aluminium wire helix
• Flexible from -30 °C to +80 °C

Where it works

A 50mm composite hose suits 2″ diesel transfer pumps on farms in the Free State and North West, bulk tanks at construction camps, and small depots filling bowsers. Mining contractors in Limpopo use it to move fuel between skid tanks and service trucks. It also handles suction duty, because the wire helix stops the hose collapsing. Coil it loosely after use and store it off the ground, away from sharp steel edges on trailers. Find matching clamps and couplings in our fuel hose and fittings range.

What’s in the box

• 50 mm composite hose with swage nipples fitted (6 m per specification)

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally within 1 to 3 days. The hose ships at 20 kg, which falls in the up-to-30 kg band at R550. It travels coiled and wrapped. Orders of R20,000 or more (VAT incl.) travel free. Ask us for the warranty terms on this model.
