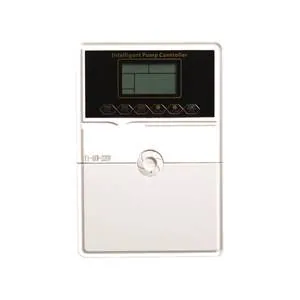

Y1 digital protection controller for 380 V three-phase borehole pumps, 0.37 to 4 kW

Y1 Digital Borehole Pump Controller, 380 V, 0.37 to 4 kW

Name: Y1 Digital Borehole Pump Controller, 380 V, 0.37 to 4 kW
SKU: KMN-VSDC-0008
Price: 2280.00 ZAR
Availability: InStock

SKU KMN-VSDC-0008

A digital protection controller for 380 V three-phase borehole pumps of 0.37 to 4 kW, delivered to farms and mines across South Africa.

R2 280,00

Protects 0.37 to 4 kW three-phase borehole pumps
Dry-run, phase-loss, phase-imbalance and overload protection
Over- and under-voltage protection with a digital display
Delivered nationwide from Polokwane

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Supply	380 to 415 V, three-phase
Motor power range	0.37 to 4 kW
Protection	Dry-run, phase-loss, phase-imbalance, overload, over- and under-voltage
Display	Digital
Model code	10070042
Application	Three-phase borehole pumps
Enclosure rating	On request
Net weight	1.2 kg
Shipping weight	1.6 kg
Dimensions	220 x 160 x 100 mm

Description

Overview

The Y1 for smaller motors is a digital protection controller for three-phase borehole pumps of 0.37 to 4 kW on a 380 to 415 V supply, and it cuts the pump when the borehole runs dry, a phase drops out or the motor overloads. A burnt motor on a remote borehole means a call-out and days without water, and this unit is the cheap insurance against it. It is one of the controllers in our pump controllers and VSD accessories.

This version covers motors from 0.37 kW up to 4 kW. Pumps above 4 kW need the 1.1 to 7.5 kW version.

Key features

Dry-run protection for low-yield boreholes
Phase-loss and phase-imbalance protection
Overload protection for the motor
Over- and under-voltage protection
Digital display
Rated for 0.37 to 4 kW three-phase pumps, 380 to 415 V

Where it works

Three-phase borehole pumps run farm irrigation in the Free State and Limpopo, mine dewatering and municipal supply schemes, where a motor lost to a dry borehole or a dropped phase is costly. Choosing the right controller matters: the MA analogue control box and the 20Y intelligent controller are for 220 V single-phase pumps of 0.37 to 2.2 kW, the Y1 covers 380 V three-phase pumps, the 30Y suits larger three-phase pumps of 5.5 to 15 kW such as 6″ borehole pumps, and a VSD soft-starts the motor and adjusts speed to demand. Always match the controller to the motor power and supply voltage. See the Y1 controller for 1.1 to 7.5 kW for the other power range, or the 60 L vertical steel pressure tank for the storage side of the system.

What’s in the box

1 x Y1 digital protection controller, 0.37 to 4 kW

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Tzaneen, Polokwane, Johannesburg, Pretoria, Mbombela, Bloemfontein and Rustenburg. Fees are set by total order weight. At a shipping weight of about 1.6 kg this item falls in the up to 30 kg band (R550), and orders of R20,000 or more (VAT incl.) are delivered free.

Ask us for the warranty terms on this model.

Questions about this product

Will the Y1 stop my borehole pump when the water runs dry?

Yes. Dry-run protection is one of its core functions, along with phase-loss, phase-imbalance, overload and over- and under-voltage protection. It is aimed at three-phase borehole pumps, which suits low-yield boreholes that can run dry in the late dry season. The digital display shows the unit's status so you can read it at the pump.

Which Y1 do I need for my pump?

Match the controller to the motor's kW and the supply voltage. This one covers 0.37 to 4 kW on 380 to 415 V three-phase. Send us your pump model, motor rating and supply voltage and we will confirm the right controller before you order, so you do not end up with the wrong power range.

Do you deliver a Y1 borehole controller to Tzaneen?

Yes. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, and Tzaneen is covered. At a shipping weight of about 1.6 kg this item falls in the up to 30 kg band (R550). Orders of R20,000 or more (VAT incl.) are delivered free, so pairing it with your pump or fittings can save the fee. Send us the delivery address for a firm date.
