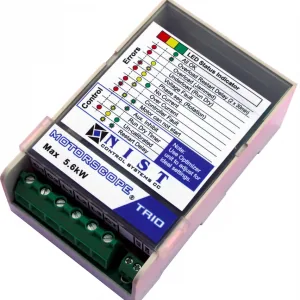

Trio Motorscope motor load protector for pumps up to 5.6 kW

Trio Motorscope Motor Load Protector, up to 5.6 kW

Name: Trio Motorscope Motor Load Protector, up to 5.6 kW
SKU: KMN-VSDC-0060
Price: 2280.00 ZAR
Availability: InStock

SKU KMN-VSDC-0060

The Trio Motorscope monitors pump motor load up to 5.6 kW and stops the motor outside its safe range, delivered from Polokwane to all provinces.

R2 280,00

Monitors motor load and cuts out outside the safe range
Suits pump motors up to 5.6 kW
RS232 output for the Optimizer or a PC
Delivered nationwide from Polokwane, VAT incl.

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Type	Motor load protector
Maximum motor power	5.6 kW
Measurement	Load at the motor input
Set-up	Calibration button with jumper in place
Communication	RS232 output (Optimizer or PC)
Fault memory	Optimizer stores the last 43 motor stops
Supply voltage	On request
Net weight	0.4 kg
Shipping weight	0.7 kg
Dimensions	120 x 80 x 60 mm

Description

Overview

The Trio Motorscope is a motor load protector for pump installations up to 5.6 kW. It watches the power the motor draws and keeps the pump running only while that power stays within a safe range. Consumption outside the range points to a faulty motor or system, such as a pump running dry or a blocked line.

You set the range yourself. With the jumper in place, press the calibration button while the motor runs under normal working conditions and the Motorscope records the safe limits for that system. It also checks continuously that the power supply is correct and stable. An RS232 output connects to the Optimizer or a PC for finer settings, an installation aid and more detailed fault indication. The Optimizer holds the data of the last 43 motor stops, which can be moved to a PC.

Related controls are in our pump controllers and VSD accessories.

Key features

Measures load at the motor input
Sets its own safe range at the press of the calibration button
Continuously checks the supply is correct and stable
RS232 output for the Optimizer or a PC
Optimizer logs the last 43 motor stops

Where it works

It earns its keep on borehole pumps in Limpopo and the Northern Cape, where a pump running dry is an expensive mistake, and on irrigation and mine dewatering pumps with long, unattended duty. For a full control panel see the panel for pumps up to 5 kW or the panel for pumps up to 7.5 kW.

What’s in the box

1 x Trio Motorscope

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Polokwane, Upington, Kimberley, Rustenburg and Bloemfontein. Shipping weight is 0.7 kg, so this item sits in the R550 (up to 30 kg) delivery band. Delivery fees are set by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450, and over 100 kg on quotation. Orders of R20,000 or more (VAT incl.) are delivered free.

Ask us for the warranty terms on this model.

Questions about this product

What does the Motorscope protect against?

It stops the motor when the load leaves the safe range you calibrated, which typically happens when a pump runs dry, a line blocks or the motor develops a fault. It also monitors the supply, so an unstable power source will stop the motor.

How do I set it up?

Run the pump under normal working conditions with the jumper in place, then press the calibration button. The Motorscope stores the safe load range for that system. The Optimizer or a PC, connected through the RS232 output, can refine settings later.

Do you deliver to Upington?

Yes. Kamano delivers with its own trucks from Polokwane to Upington and the rest of the country, normally in 1 to 3 days. At about 0.7 kg shipped, this item falls in the R550 (up to 30 kg) delivery band, and orders of R20,000 or more (VAT incl.) are delivered free.
