Smart controller for a submersible turbine pump, 200 to 250 V single phase, with digital display and RS485

STP Smart Controller, 200 to 250 V Single Phase, RS485

Name: STP Smart Controller, 200 to 250 V Single Phase, RS485
SKU: KMN-FUEL-0335
Price: 9922.50 ZAR
Availability: InStock

SKU KMN-FUEL-0335

A smart controller for a single submersible turbine pump on 200 to 250 V, with dry-run and overload protection and RS485. Delivered nationwide.

R9 922,50

One controller protects one submersible turbine pump
200 to 250 V single phase, 48 to 62 Hz
Dry run, overcurrent and voltage protection
RS485 link and digital fault display

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Voltage / phase	200 to 250 V single phase (380 V three-phase optional)
Frequency	48 to 62 Hz
Pumps controlled	One submersible turbine pump
Protections	Overcurrent, dry run, high/low voltage, low level, comms failure, over-run, phase loss (380 V)
Display	Digital tube display of current, voltage and fault codes
Communication	RS485
Fluid compatibility	N/A (electronic controller)
Net weight	2.2 kg
Shipping weight	2.4 kg
Dimensions	250 × 200 × 150 mm

Description

Overview

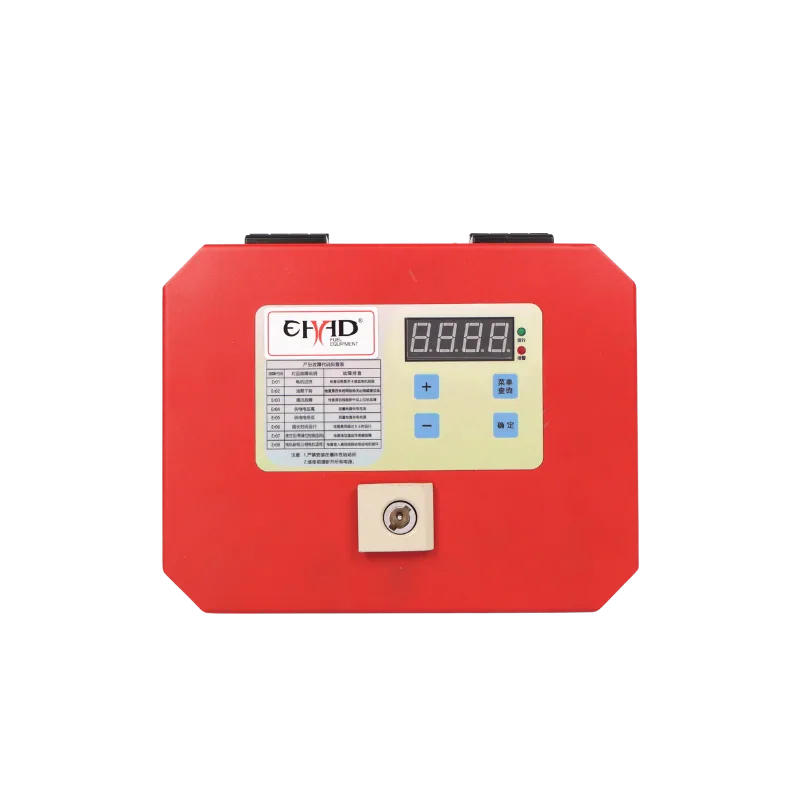

This submersible pump smart controller sits between the supply and one submersible turbine pump (STP), watching current and voltage and shutting the pump down before damage is done. It runs on 200 to 250 V single phase with a 380 V three-phase option, shows readings on a digital display and talks over RS485. It weighs 2.4 kg shipped.

Specification summary for the submersible pump smart controller: voltage / phase 200 to 250 V single phase (380 V three-phase optional); frequency 48 to 62 Hz; pumps controlled one submersible turbine pump; protections overcurrent, dry run, high/low voltage, low level, comms failure, over-run, phase loss (380 V); display digital tube display of current, voltage and fault codes; communication RS485.

Key features

Protects against overcurrent, dry run and high or low voltage
Also trips on low level, comms failure, over-run and phase loss (380 V)
Digital tube display of current, voltage and fault codes
RS485 communication
Frequency range of 48 to 62 Hz

Where it works

Forecourt STPs in Limpopo and Gauteng run for hours and cost a lot to replace. A controller catches a dry tank or a dipping supply, which is common on Eskom grids during load-shedding recovery. Fuel retailers and depots use it to protect the pump and to read faults without opening a motor housing. Related kit: 4-Line Pump Controller Box and 6-Line Pump Controller Box. Browse more submersible turbine pumps.

What’s in the box

STP smart controller

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the submersible pump smart controller online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 2.4 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the up to 30 kg band at R550, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

Which pumps does this controller suit?

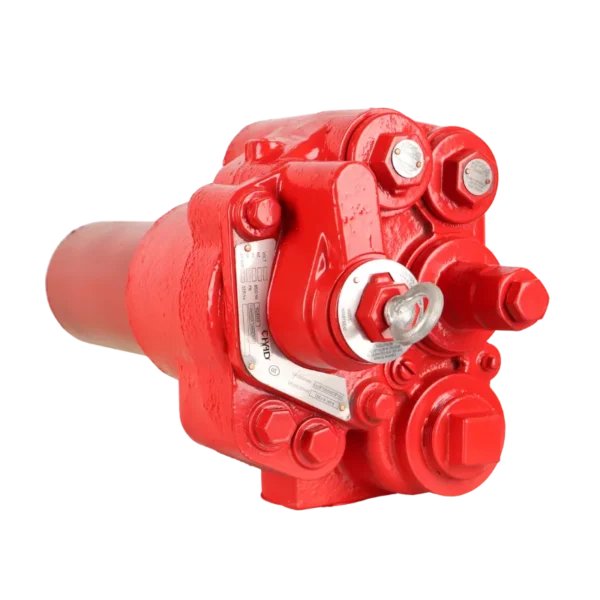

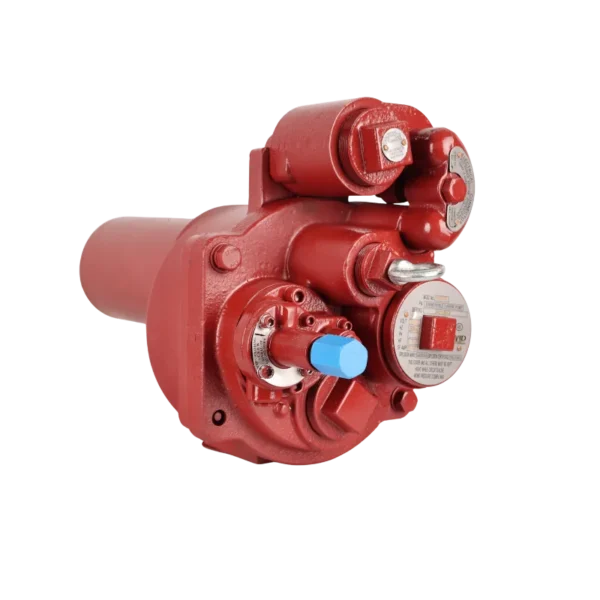

It is built for submersible turbine pumps on 200 to 250 V single phase, such as our 1.5 HP and 2 HP STPs. A 380 V three-phase option exists, so tell us your supply and pump model before ordering. Ask us to confirm compatibility with your exact motor.

What happens during load-shedding?

The controller watches voltage, and a high or low supply trips the pump to protect the motor. When power returns it can see unstable voltage. Check the restart behaviour with us for your set-up, and consider a stabiliser if your supply swings a lot.

Do you deliver to Tzaneen and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 2.4 kg, which is the up to 30 kg band: R550 if it is the only item in the order. Orders of R20,000 or more VAT incl. ship free, so adding a submersible turbine pump can make freight free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the STP Smart Controller, 200 to 250 V Single Phase, RS485 with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Mahikeng, Kimberley, Welkom, Mokopane, Upington and Thohoyandou, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
