4-line double-door IP20 submersible turbine pump controller box with surge and overload protection

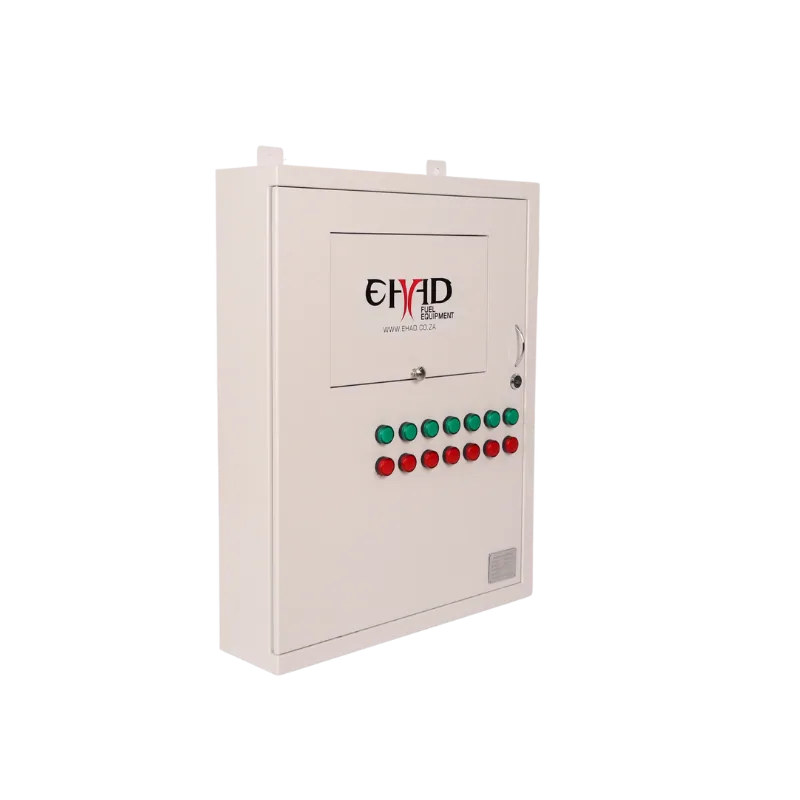

4-Line Submersible Pump Controller Box, IP20, Double Door

Name: 4-Line Submersible Pump Controller Box, IP20, Double Door
SKU: KMN-FUEL-0336
Price: 21262.50 ZAR
Availability: InStock

SKU KMN-FUEL-0336

A double-door IP20 controller box that runs up to four submersible turbine pumps, with overload and surge protection. Delivered nationwide.

R21 262,50

Controls up to 4 submersible turbine pumps
Thermal overload trips above 15 A per pump
Surge protection fitted
IP20 double-door enclosure, 26 kg shipped

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Pumps controlled	Up to 4
Enclosure	IP20, double door
Overload protection	Thermal relay trips above 15 A per pump
Surge protection	Yes
Voltage / phase	On request
Fluid compatibility	N/A (electrical control box)
Net weight	24 kg
Shipping weight	26 kg
Dimensions	580 × 150 × 740 mm

Description

Overview

This 4 line submersible pump controller is a double-door IP20 control box that switches and protects up to four submersible turbine pumps from one panel. Each line has a thermal relay that trips above 15 A, and the box includes surge protection. It suits a forecourt with up to four fuel grades.

Specification summary for the 4 line submersible pump controller: pumps controlled up to 4; enclosure IP20, double door; overload protection thermal relay trips above 15 A per pump; surge protection Yes.

Key features

Controls up to 4 submersible turbine pumps
Thermal relay overload trip above 15 A per pump
Surge protection
IP20 enclosure with double doors for access
580 x 150 x 740 mm panel

Where it works

A forecourt in Limpopo, Gauteng or KwaZulu-Natal with unleaded 93, 95, diesel 50 and diesel 500 tanks needs one panel to feed the whole set of pumps. The box keeps wiring tidy and gives each pump its own overload protection. IP20 means it must be installed indoors in a dry, protected room, not out in the weather. Related kit: 6-Line Pump Controller Box and 1.5 HP Submersible Turbine Pump. Browse more submersible turbine pumps.

What’s in the box

4-line pump controller box
Double-door enclosure

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Order the 4 line submersible pump controller online and we ship it from Polokwane. Delivery is charged by total order weight, and free delivery applies on orders of R20,000 or more (VAT incl.). Shipping weight: 26 kg. Ask us for the warranty terms on this model.

Freight is set by the combined weight of your order. This item sits in the up to 30 kg band at R550, and extra parts added to the same order only raise the fee if they push the total into the next band. Send us your site address and we will confirm the exact delivery charge before you pay.

Questions about this product

Can I install this box outdoors?

No. IP20 protects against fingers and large objects only, not water or dust, so mount it indoors in a dry, ventilated room and keep it away from fuel vapour zones. For outdoor use you would need an additional weatherproof enclosure. Ask us about options for your site.

What is the difference between the 4 line and 6 line boxes?

The 4 line box controls up to four submersible pumps and weighs 24 kg, the 6 line box controls up to six and weighs 26 kg. The protection per line is the same. Choose by the number of tanks you run now, and allow a spare line if you plan to expand.

Do you deliver to Polokwane and what does it cost?

Yes, we deliver to all nine provinces on our own trucks, normally in 1 to 3 days from Polokwane. This item ships at 26 kg, which is the up to 30 kg band: R550 if it is the only item in the order. This unit alone is over R20,000 VAT incl., so delivery on it is free.
