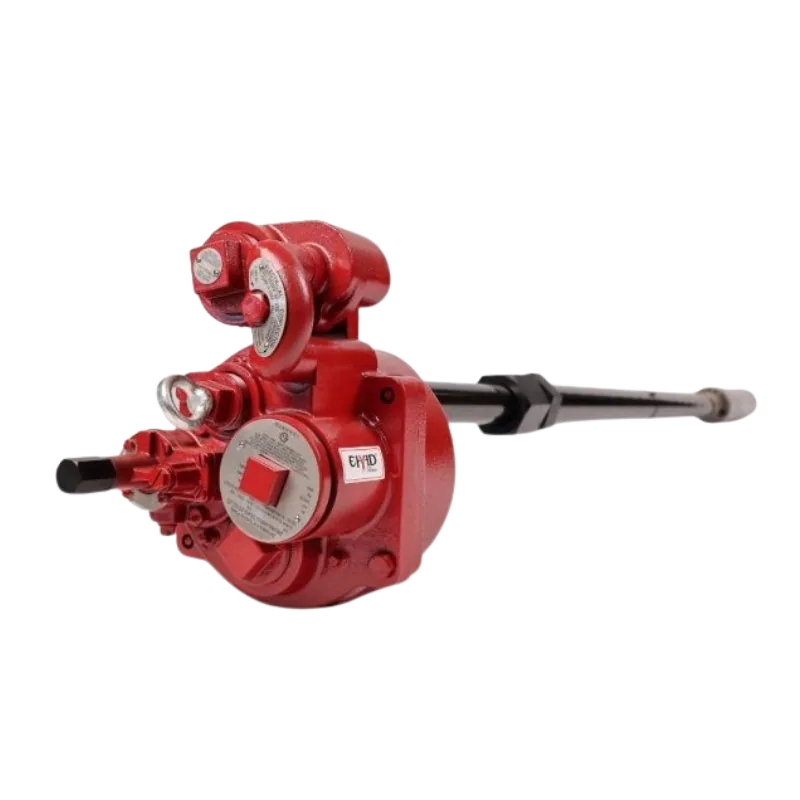

2 HP ATEX submersible turbine pump, 340 L/min, for underground fuel tanks

2 HP ATEX Submersible Turbine Pump, 340 L/min, 220 V

Name: 2 HP ATEX Submersible Turbine Pump, 340 L/min, 220 V
SKU: KMN-FUEL-0341
Price: 39217.50 ZAR
Availability: InStock

SKU KMN-FUEL-0341

A 2 HP submersible turbine pump marked II 2G Ex db IIB T4 Gb for petrol and diesel tanks on forecourts and depots, delivered across South Africa.

R39 217,50

Explosion-protection marking II 2G Ex db IIB T4 Gb, per supplier
Up to 340 L/min at 276 kPa maximum pressure
220 V, 50 Hz single phase, 9 A current draw
2 HP (1.3 kW per supplier) for underground fuel tanks

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	340 L/min max
Max head / pressure	276 kPa maximum pressure (head figure on request, supplier figures differ)
Voltage / phase	220 V, 50 Hz, single phase
Power	2 HP (1.3 kW per supplier)
Current	9 A
Inlet / outlet	On request
Self-priming	N/A (submersible, sits in the fuel)
Duty cycle	On request
Fluid compatibility	Petrol and diesel
Explosion rating	II 2G Ex db IIB T4 Gb (per supplier, certificate on request)
Net weight	80 kg
Shipping weight	80 kg
Dimensions	2160 × 370 × 290 mm (crated, per supplier)

Description

Overview

The 2 HP ATEX submersible turbine pump is a 340 L/min fuel pump for underground tanks, marked II 2G Ex db IIB T4 Gb by the supplier for use where petrol vapour is present. It runs on 220 V, 50 Hz single phase and draws 9 A. Pick this version when your forecourt or depot specification asks for explosion-protected equipment. The standard 2 HP submersible turbine pump covers sites that do not. The crated unit weighs 80 kg, so plan lifting gear.

Key features

340 L/min maximum flow
276 kPa maximum pressure
II 2G Ex db IIB T4 Gb explosion-protection marking, per supplier, ask us for the certificate
220 V, 50 Hz single phase, 9 A current draw
2 HP rating, 1.3 kW per supplier
For petrol and diesel in underground storage tanks

Where it works

Built for service stations on the N1 and N4 corridors and forecourts in Gauteng and KZN, where petrol vapour around the tank area makes explosion protection a site requirement. Mine fuel bays in Mpumalanga and transport depots with underground storage also specify it. Pair it with an STP smart controller and the rest of the submersible turbine pump range. Confirm the requirements of your inspector or insurer before ordering.

What’s in the box

2 HP ATEX-marked submersible turbine pump assembly as supplied in its crate

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This item ships at 80 kg, which puts it in our R1,450 delivery band for orders of 60 to 100 kg. Ask us for the warranty terms on this model.

Questions about this product

What does the ATEX marking on this pump mean?

The supplier marks this pump II 2G Ex db IIB T4 Gb, meaning it is built for areas where explosive petrol vapour can occur. It does not replace a compliant installation, so your tank, cabling and controller must also meet the site rules. Ask us for the certificate before you commit to the order.

Can I use it with a standard pump controller?

You need a controller suited to a 220 V single phase 2 HP pump, and in a classified area the controller must be mounted and wired as the site rules require. We stock STP controllers in the same range. Tell us how many dispensers you run and we will suggest the right unit.

How is it delivered and what does it cost?

It ships crated at 80 kg, in our 60 to 100 kg band at R1,450, but the pump is priced above R20,000 so delivery is free. We deliver with our own trucks from Polokwane to all nine provinces in 1 to 3 days, including mine and forecourt sites in Mpumalanga and the Western Cape.
