0.25 kW Submersible Pump, 220 V, 40 mm Outlet, 8 m Head

Name: 0.25 kW Submersible Pump, 220 V, 40 mm Outlet, 8 m Head
SKU: KMN-SUBM-0037
Price: 2190.00 ZAR
Availability: InStock

SKU KMN-SUBM-0037

A 0.25 kW, 220 V submersible pump with float switch and 9 m3/h flow for dams, basements and small pits, delivered across South Africa.

R2 190,00

Float switch fitted for automatic start and stop
Handles clean water, dirty water and screened sewage
0.25 kW (0.33 HP), 220 V single-phase, 40 mm outlet
9 m3/h flow at 3 m, 8 m maximum head

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	Up to 9 m3/h (150 L/min)
Max head / pressure	8 m
Duty point	9 m3/h at 3.0 m

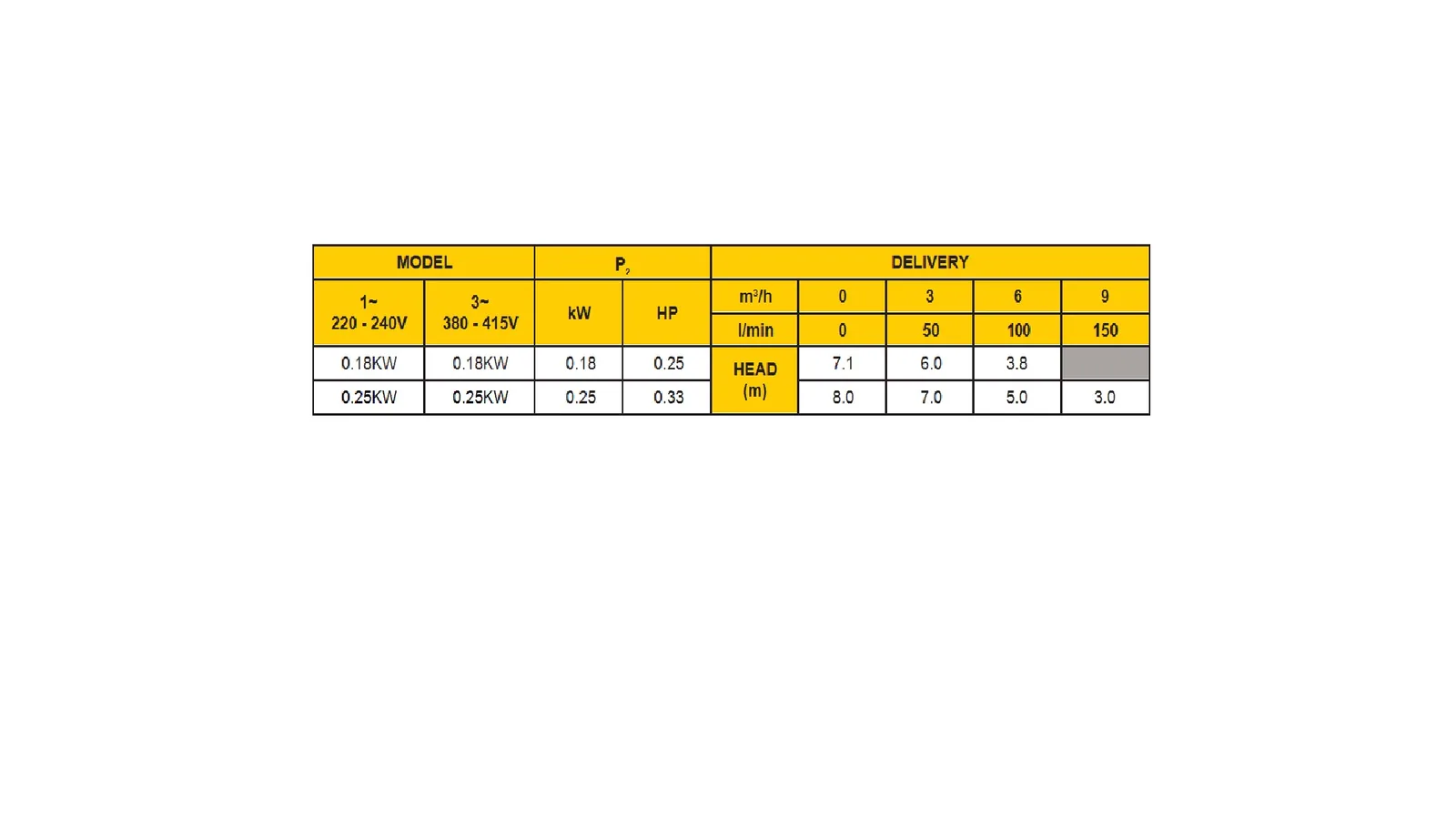

Performance curve	7.0 m at 3 m3/h, 5.0 m at 6 m3/h, 3.0 m at 9 m3/h
Voltage / phase	220 V to 240 V single-phase
Power	0.25 kW (0.33 HP)
Inlet / outlet	Outlet 40 mm, suction through removable screen
Self-priming	N/A (submersible)
Duty cycle	On request
Fluid compatibility	Clean water, dirty water and screened sewage up to 40 °C, liquid density 1 kg/l
Construction	Cast-iron body and open-vane impeller, double stainless steel mechanical seal, nitrile elastomer
Max immersion depth	5 m
Power cable	10 m
Float switch	Fitted
Motor protection	Thermal overload protection
Net weight	7 kg
Shipping weight	8.5 kg
Dimensions	240 x 180 x 310 mm

Description

Overview

This 0.25 kW single-phase submersible pump steps up from the 0.18 kW model with a flow of 9 m3/h and 8 m of head, still on a standard 220 V supply and still fitted with a float switch.

It delivers up to 9 m3/h (150 L/min), with 8 m of maximum head and a duty point of 9 m3/h at 3.0 m. The 220 V to 240 V single-phase motor has thermal overload protection, and the float switch starts and stops the pump with the water level. The cast-iron body and open-vane impeller are designed for screened sewage and dewatering, and the removable suction screen keeps larger debris out.

Key features

0.25 kW (0.33 HP) motor, 220 V to 240 V single-phase
8 m maximum head and 9 m3/h (150 L/min) flow
Cast-iron pump body with a cast-iron open-vane impeller
Removable suction screen, so one pump covers screened sewage and dewatering
Double stainless steel mechanical seal (graphite/ceramic and graphite/silicon carbide) with nitrile elastomer
10 m power cable, maximum immersion depth 5 m, liquid temperature up to 40 °C
Float switch fitted for automatic start and stop

Where it works

Use it to drain a flooded basement, lift water from a garden dam for irrigation, or clear a small building excavation on an Eastern Cape farm or a Gauteng site that only has domestic power. Stay with the 0.18 kW pump for a small pit, or go to the 0.55 kW 220 V pump when you need 20 m3/h. Everything else is in the submersible pump range.

What’s in the box

0.25 kW submersible pump with 10 m power cable
Removable suction screen
Float switch
Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Pretoria, Gqeberha, East London, Bloemfontein and Polokwane. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 8.5 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.

Questions about this product

Is a 0.25 kW pump big enough to drain my pit?

It suits small to mid-size jobs. At its duty point of 9 m3/h at 3.0 m it clears a pit steadily, and the maximum head is 8 m, so keep the vertical lift and hose run well inside that figure. If you need more volume or more lift, step up to a larger pump in the same range.

Does the 0.25 kW 220 V pump have a float switch?

Yes, a float switch is fitted, so the pump starts when the water rises and stops when it drops. The motor also has thermal overload protection. Connect the 10 m cable to a 220 V to 240 V supply through your own isolator, and keep the float free to move, clear of the pit wall.

Do you deliver a submersible pump to Gqeberha?

Yes. Kamano delivers with its own trucks from Polokwane to Gqeberha and all nine provinces in 1 to 3 days. At about 8.5 kg shipping weight this item falls in the up to 30 kg (R550) band, and orders of R20,000 or more (VAT incl.) go free. Add a hose and fittings to the same order.
