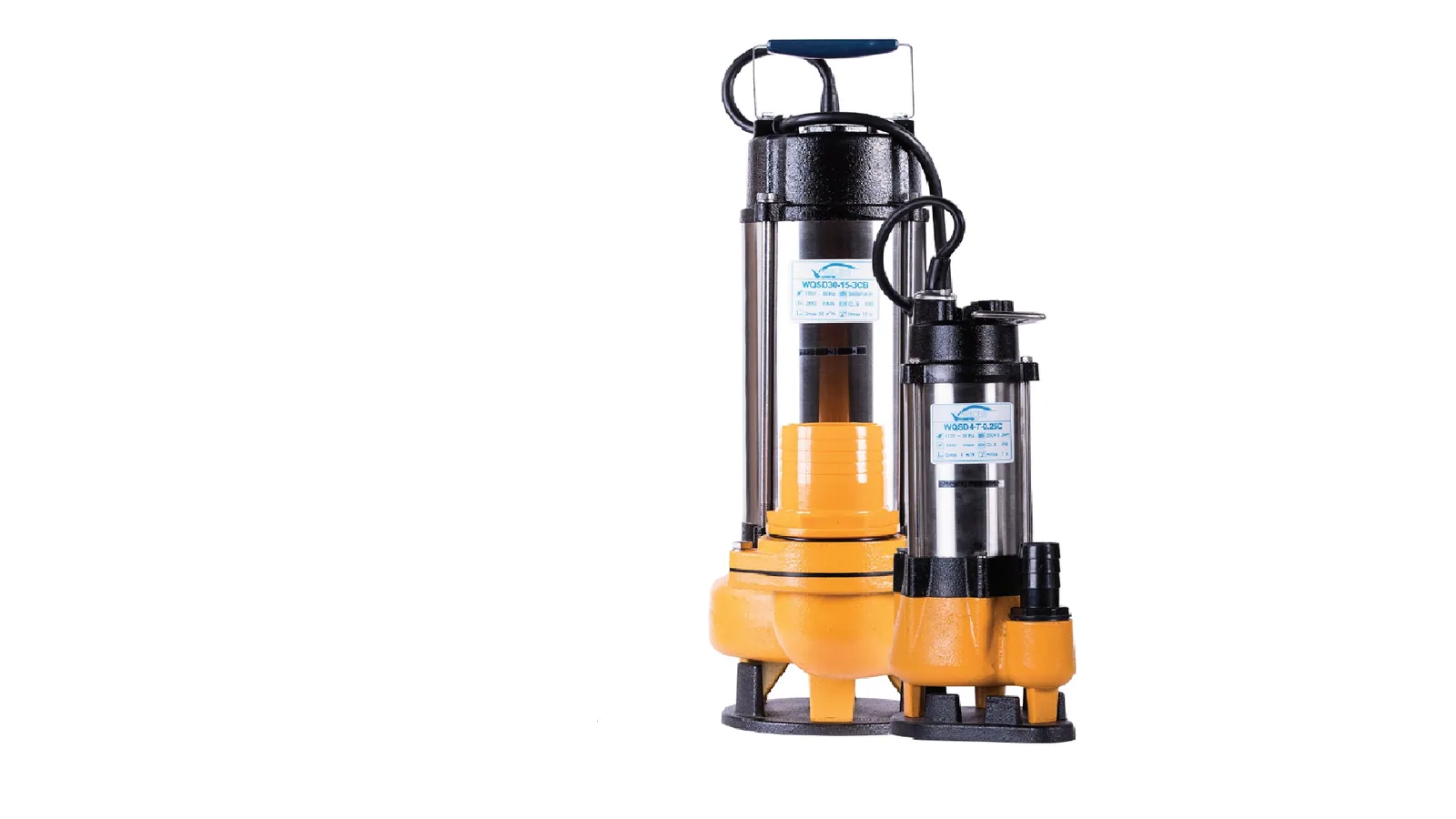

0.18 kW Submersible Pump, 220 V, 40 mm Outlet, Float Switch

Description

Overview

This 0.18 kW submersible pump is the smallest single-phase unit in the range, built to clear standing water from basements, ponds and swimming pools without fuss. It runs on a standard 220 V supply and has a float switch, so it starts when the water rises and stops when the level drops.

It delivers up to 7 m3/h (7,000 L/h), with 7 m of maximum head and a duty point of 4,500 L/h at 5 m. The 220 V to 240 V single-phase motor has thermal overload protection, and the float switch starts and stops the pump with the water level. The cast-iron body and open-vane impeller are designed for screened sewage and dewatering, and the removable suction screen keeps larger debris out.

Key features

• 0.18 kW (0.25 HP) motor, 220 V to 240 V single-phase
• 7 m maximum head and 7 m3/h (7,000 L/h) flow
• Cast-iron pump body with a cast-iron open-vane impeller
• Removable suction screen, so one pump covers screened sewage and dewatering
• Double stainless steel mechanical seal (graphite/ceramic and graphite/silicon carbide) with nitrile elastomer
• 10 m power cable, maximum immersion depth 5 m, liquid temperature up to 40 °C
• Float switch fitted for automatic start and stop

Where it works

Drain a flooded basement in Gauteng after a summer storm, empty a swimming pool or garden pond, or lift screened effluent from a small plot or guest lodge. It also handles light irrigation from a dam on a Limpopo smallholding. If you need more flow, step up to the 0.25 kW 220 V pump, or choose the 0.18 kW 380 V version where you have three-phase power. See the full submersible pump range.

What’s in the box

• 0.18 kW submersible pump with 10 m power cable
• Removable suction screen
• Float switch
• Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Pretoria, Polokwane, Durban, Pietermaritzburg and Bloemfontein. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 7.5 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.
