0.18 kW Three-Phase Submersible Pump, 380 V, 40 mm Outlet

Description

Overview

This 0.18 kW three-phase submersible pump is the smallest 380 V unit in the range, a compact pump for workshops, small mines and farms that have a three-phase supply and need to clear water from a sump or pit.

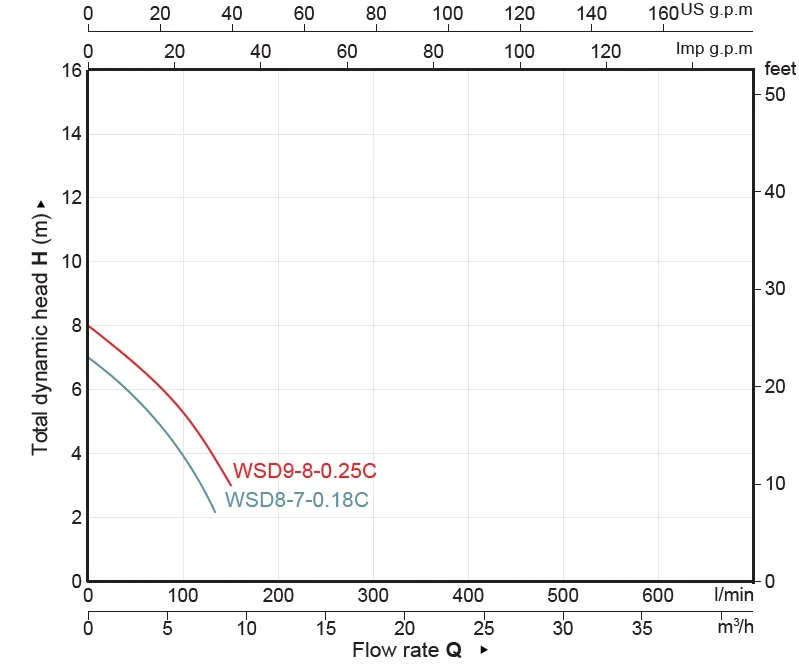

It delivers up to 6 m3/h (100 L/min), with 7.1 m of maximum head and a duty point of 6 m3/h at 3.8 m. The 380 V to 415 V three-phase motor suits sites with a three-phase supply. Wire it through a motor starter with overload protection and check the direction of rotation before you put it in service. The cast-iron body and open-vane impeller are designed for screened sewage and dewatering, and the removable suction screen keeps larger debris out.

Key features

• 0.18 kW (0.25 HP) motor, 380 V to 415 V three-phase
• 7.1 m maximum head and 6 m3/h (100 L/min) flow
• Cast-iron pump body with a cast-iron open-vane impeller
• Removable suction screen, so one pump covers screened sewage and dewatering
• Double stainless steel mechanical seal (graphite/ceramic and graphite/silicon carbide) with nitrile elastomer
• 10 m power cable, maximum immersion depth 5 m, liquid temperature up to 40 °C

Where it works

Use it to dewater a workshop pit or mine sump, drain building excavations, or move screened effluent where three-phase power is already on site, as at many Mpumalanga mines and Gauteng factories. It is small enough to move between jobs. Choose the 0.18 kW 220 V version if you only have single-phase power, or step up to the 0.25 kW 380 V pump for more flow. See the whole submersible pump range.

What’s in the box

• 0.18 kW submersible pump with 10 m power cable
• Removable suction screen
• Hose and discharge fittings are not included

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, with regular runs to Johannesburg, Rustenburg, Mahikeng, Polokwane, eMalahleni and Klerksdorp. Delivery is charged by total order weight: up to 30 kg R550, 30 to 60 kg R950, 60 to 100 kg R1,450 and over 100 kg on quotation, and orders of R20,000 or more (VAT incl.) go free. At about 7 kg shipping weight this item falls in the up to 30 kg (R550) band. Ask us for the warranty terms on this model.
