SP46-14 6″ Borehole Pump, 22 kW, 188 m Max Head

Description

Overview

The SP46-14 (also listed as VP48A-14) is a 14-stage stainless steel multistage submersible pump for 6 inch boreholes, built around a 22 kW motor. It lifts water up to 188 m and moves up to 66 m³/h, and it gives 36 m³/h (36 000 litres per hour) at 140 m head. The SP46 range is rated at about 46 m³/h nominal flow and suits deeper boreholes where the water level sits well below surface.

Key features

• Stainless steel multistage pump end, 14 stages
• 22 kW three-phase motor, 380 V or 525 V by option
• Duty points: 172 m at 18 m³/h, 140 m at 36 m³/h, 97 m at 54 m³/h
• 6 inch diameter, needs a borehole of at least 150 mm internal diameter

Options

4 configurations, prices VAT incl.

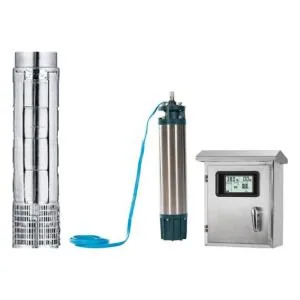

• 380V set + oil-filled motor + 30A controller (R 36,160): SP46-14 pump end + 22kW 380V three-phase oil-filled 6″ motor + 30A intelligent pump controller.
• 380V set + water-filled motor + 30A controller (R 36,304): SP46-14 pump end + 22kW 380V three-phase water-filled 6″ motor + 30A intelligent pump controller.
• 525V set: pump + water-filled motor (no starter) (R 52,640): SP46-14 pump end + 22kW 525V three-phase water-filled 6″ motor (starter panel/VSD not included).
• Pump end only (no motor) (R 11,608): SP46-14 pump end (wet end) only, to replace a worn pump end on an existing 22kW 6″ motor.

Oil-filled motors are sealed, rated 25 bar. Water-filled motors are rated 35 bar and can usually be rewound. 525 V sets have no starter, so fit a suitable panel or VSD.

Where it works

Common for citrus and vegetable irrigation along the Limpopo valley, and with municipalities for community supply schemes. Compare the SP46-13 (VP48A-13) 6″ Borehole Pump 22kW – 174m Max Head and the SP46-15 (VP48A-15) 6″ Borehole Pump 22kW – 201m Max Head, or browse all borehole pumps. Send us your water level, yield and delivery height and we will confirm the model.

What’s in the box

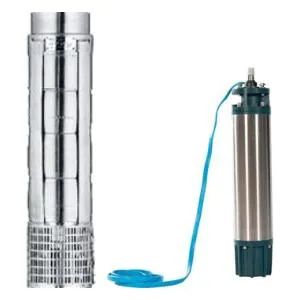

• SP46-14 stainless steel pump end
• 22 kW 6 inch three-phase motor, on set options
• 30A intelligent pump controller, on 380 V set options

Not included: cable, rope, delivery pipe, base plate. Often supplied to order, so ask us for lead time.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Johannesburg, Pretoria, Bloemfontein, Rustenburg, Mbombela and Kimberley. The heaviest set ships at about 173 kg, so delivery is on quotation; the pump end alone ships at about 51 kg (fee R950). Free delivery from R20,000. Ask us for the warranty terms on this model.
