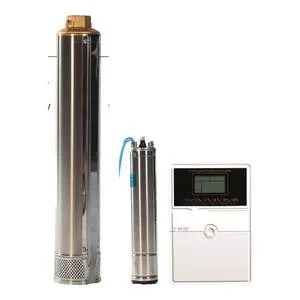

4SD12/10 4 Inch Borehole Pump, 2.2 kW, 68 m Head

Description

Overview

The 4SD12/10 is a 4 inch stainless steel multistage submersible borehole pump with a 2.2 kW motor, built for farm homesteads, drip irrigation blocks and tank filling from medium-depth boreholes. It lifts to 68 m with the outlet closed and passes up to 16.2 m³/h at the end of its curve. In between it delivers 120 L/min at 53 m.

Buy a complete set for your power supply, or just the pump end to replace a worn wet end on an existing 2.2 kW motor.

To size it, add your water level depth, the climb to the tank and about 10% for pipe friction; the head at your flow must beat that total. Send us your borehole details if unsure. Browse our borehole pumps, or compare the 4SD10/9 pump, 61 m head and the 4SD12/12 pump, 81 m head.

Key features

• Stainless steel pump body and shaft.
• 4 inch diameter, fits boreholes of 100 mm internal diameter or more.
• 2.2 kW oil-filled motor, 220 V single-phase or 380 V three-phase or 525 V three-phase by option.
• 20Y controller adds dry-run protection for low-yield boreholes.

Options

• 220 V set with analogue control box, R 4,912: Pump end, 2.2 kW 220 V single-phase oil-filled motor, MA analogue control box.
• 220 V set with 20Y intelligent controller, R 6,304: Pump end, 2.2 kW 220 V single-phase motor, 20Y intelligent controller with dry-run protection, our pick for low-yield boreholes.
• 380 V three-phase set with Y1 controller, R 6,640: Pump end, 2.2 kW 380 V three-phase motor, Y1 digital protection controller.
• 525 V three-phase set with VSD, R 15,720: Pump end, 2.2 kW 525 V three-phase motor, variable speed drive (VSD).
• Pump end only, no motor, R 1,256: Wet end only, to replace a worn pump end on an existing 2.2 kW motor.

Where it works

A mid-lift pump for homesteads, drip irrigation and tank filling, common with North West cattle and game farms where load-shedding makes a reliable pump set essential.

What’s in the box

• The 4SD12/10 pump end, plus the motor and controller for your chosen set.
• Not included: submersible cable, rope, delivery pipe and base plate.

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days, including Polokwane, Kimberley, George, Tzaneen, Welkom and Pretoria. A complete set ships at about 29 kg, so delivery is R 550; orders of R20,000 or more (VAT incl.) go free. Ask us for the warranty terms on this model.
