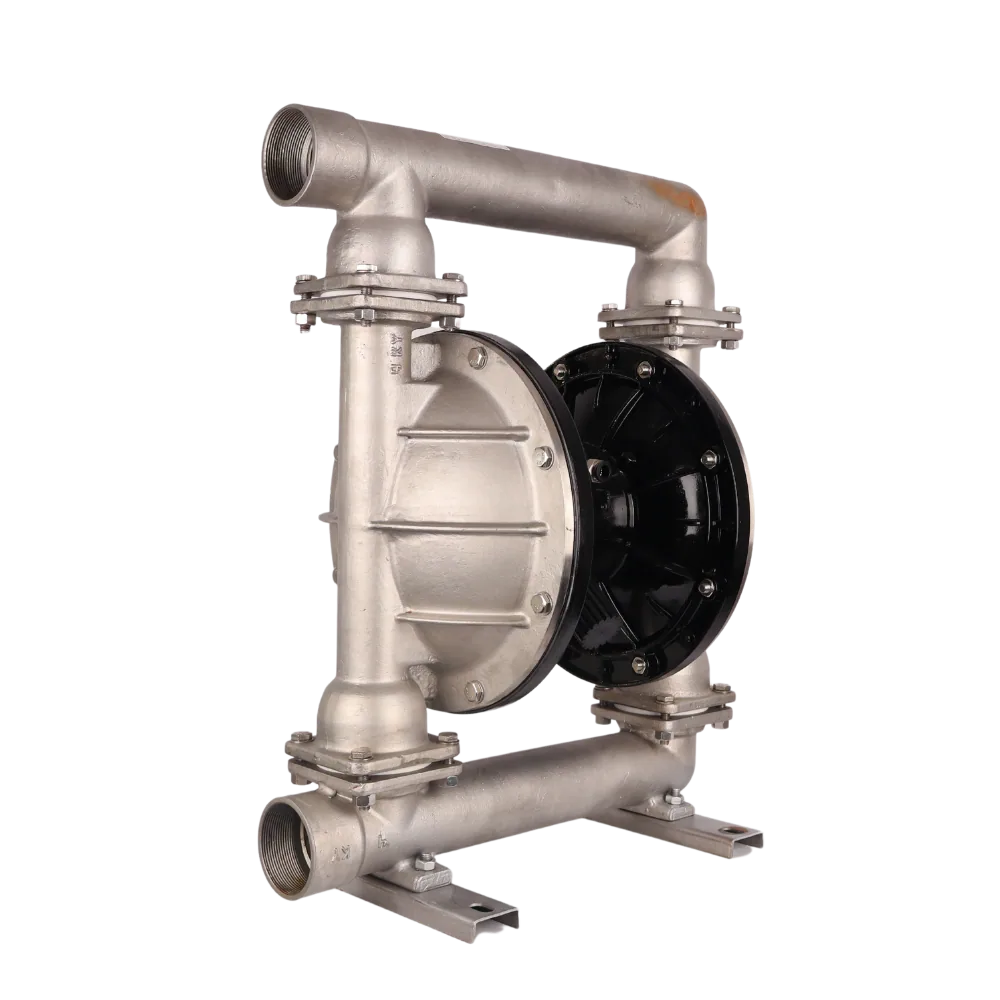

QBK65 Air Diaphragm Pump, Stainless Body, 280 L/min, 2.5″ Ports
SKU KMN-VALV-0035
A 2.5" air-operated stainless steel diaphragm pump for high-volume dewatering and bulk transfer, delivered from Polokwane to all nine provinces.
R25 042,50
- Moves up to 280 L/min through 2.5″ ports with compressed air only
- Self-priming to 7 m, with PTFE diaphragms and solids up to 8 mm
- Stainless body, maximum discharge pressure 6.9 bar
- Air consumption up to 900 L/min, no electrical supply
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 280 L/min (maximum) |
|---|---|
| Max head / pressure | 6.9 bar discharge, 7 m suction lift |
| Voltage / phase | N/A (air-operated, no electrical supply) |
| Power | Compressed air, up to 900 L/min |
| Inlet / outlet | 2.5" / 2.5" |
| Self-priming | Yes (7 m suction lift) |
| Duty cycle | N/A (air-operated, no motor) |
| Fluid compatibility | Fuels, oils, water-based liquids and compatible chemicals, depending on body material |
| Body / wetted materials | Stainless body, PTFE diaphragms |
| Max solids size | 8 mm |
| Viscosity range | 1 to under 10,000 cP |
| Net weight | 51 kg |
| Shipping weight | 68 kg |
| Dimensions | 520 × 360 × 680 mm |
Description
Overview
The QBK65 stainless steel air-operated double diaphragm pump moves up to 280 L/min through 2.5″ ports, powered by compressed air alone. It self-primes to a 7 m suction lift, delivers up to 6.9 bar, passes solids up to 8 mm and carries PTFE (Teflon) diaphragms.
The stainless steel body takes aggressive chemicals, abrasive liquids and rough site handling better than aluminium or polypropylene. It is the dearest option, so choose it when the liquid or the duty demands it. Because there is no electric motor, you can run it wherever you have an air line, and it keeps pumping against a closed outlet. Browse more diaphragm pumps, or compare the QBK50 stainless steel diaphragm pump and the QBK50 and QBK65 seal kit.
Key features
- Flow of up to 280 L/min through 2.5″ inlet and outlet
- Maximum discharge pressure of 6.9 bar, suction lift of 7 m
- Self-priming, with solids up to 8 mm and viscosity up to 10,000 cP
- Air consumption of up to 900 L/min, no electrical supply
- Stainless body with PTFE diaphragms
- 2.5″ ports give the highest flow in the QBK range
Where it works
At 2.5″ this is the highest-flow pump in the QBK range, used for dewatering large sumps, bulk tank transfers and moving thick process liquids. Contractors, quarries and treatment works pick it when a 2″ pump is just short of the flow they need. Mines, smelters and chemical plants in the North West and Mpumalanga choose stainless for heavy slurry and corrosive transfer.
Fit an air filter and regulator, and match your compressor to the 900 L/min maximum air consumption.
What’s in the box
- QBK65 air diaphragm pump
- Ask us what fittings and accessories are included with your order
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Below that, the fee follows total order weight: this item ships at 68.0 kg, so expect R1,450 for loads of 60 to 100 kg. Ask us for the warranty terms on this model.
Questions about this product
What compressor do I need for the QBK65?
The QBK65 uses up to 900 L/min of compressed air at full flow, so size your compressor to deliver at least that at working pressure. A smaller compressor still runs the pump but limits its flow. Fit an air filter and a regulator so you can throttle flow and pressure, and keep air pressure at or below 6.9 bar.
Is the stainless steel QBK65 pump suitable for corrosive liquids?
The stainless steel body copes with aggressive chemicals, abrasive liquids and tough site knocks better than aluminium or polypropylene, and the PTFE diaphragms add chemical resistance. Grade still matters for some chemicals, so tell us the liquid and concentration and we will confirm it suits before you order.
Do you deliver this pump to Secunda?
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 68.0 kg shipping weight this falls in the 60 to 100 kg band (R1,450). Delivery is free once your order reaches R20,000 (VAT incl.). It ships crated, so tell us if your site needs a tail-lift or forklift to offload.
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the QBK65 Air Diaphragm Pump, Stainless Body, 280 L/min, 2.5" Ports with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Stellenbosch, Kimberley, Mokopane, East London, Pietermaritzburg and Secunda, and to farms, mines and sites in between. This item ships in the R1,450 delivery band (60 to 100 kg). Orders of R20,000 or more deliver free with code KH027.
