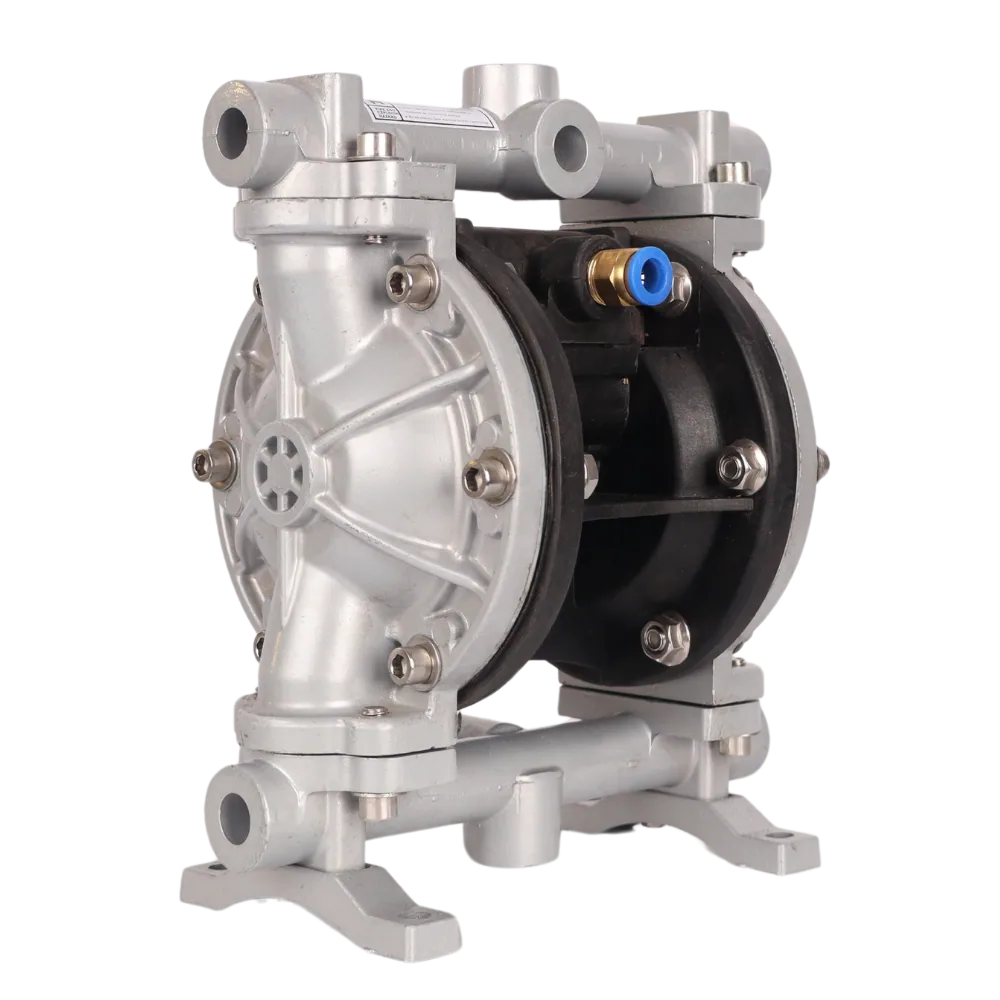

QBK15 Air Diaphragm Pump, Aluminium Body, 20 L/min, 1/2″ Ports
SKU KMN-VALV-0019
A 1/2" air-operated aluminium diaphragm pump for small transfers, dosing and drum decanting, delivered from Polokwane to all nine provinces.
R3 543,75
- Moves up to 20 L/min through 1/2″ ports with compressed air only
- Self-priming to 7 m, with PTFE diaphragms and solids up to 1 mm
- Aluminium body, maximum discharge pressure 6.9 bar
- Air consumption up to 300 L/min, no electrical supply
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 20 L/min (maximum) |
|---|---|
| Max head / pressure | 6.9 bar discharge, 7 m suction lift |
| Voltage / phase | N/A (air-operated, no electrical supply) |
| Power | Compressed air, up to 300 L/min |
| Inlet / outlet | 1/2" / 1/2" BSP female |
| Self-priming | Yes (7 m suction lift) |
| Duty cycle | N/A (air-operated, no motor) |
| Fluid compatibility | Fuels, oils, water-based liquids and compatible chemicals, depending on body material |
| Body / wetted materials | Aluminium body, PTFE diaphragms |
| Max solids size | 1 mm |
| Viscosity range | 1 to under 10,000 cP |
| Net weight | 4.5 kg |
| Shipping weight | 5.5 kg |
| Dimensions | 220 × 210 × 360 mm |
Description
Overview
The QBK15 aluminium air-operated double diaphragm pump moves up to 20 L/min through 1/2″ ports, powered by compressed air alone. It self-primes to a 7 m suction lift, delivers up to 6.9 bar, passes solids up to 1 mm and carries PTFE (Teflon) diaphragms.
The aluminium body is the cost-effective choice for fuels, oils and water-based liquids, and it keeps the pump light enough to move by hand. For acids or caustic liquids, choose the polypropylene or stainless steel versions instead. Because there is no electric motor, you can run it wherever you have an air line, and it keeps pumping against a closed outlet. Browse more diaphragm pumps, or compare the QBK15 polypropylene diaphragm pump and the QBK15 diaphragm pump seal kit.
Key features
- Flow of up to 20 L/min through 1/2″ inlet and outlet
- Maximum discharge pressure of 6.9 bar, suction lift of 7 m
- Self-priming, with solids up to 1 mm and viscosity up to 10,000 cP
- Air consumption of up to 300 L/min, no electrical supply
- Aluminium body with PTFE diaphragms
- Compact enough to carry to the drum, with ports sized for 1/2″ hose
Where it works
Workshops and small plants use a pump this size to decant oils, paints, inks and cleaning chemicals from drums into smaller containers, and to feed dosing points where flow is modest. It also suits laboratories, small agri-chemical stores and maintenance teams who need a portable air pump that fits in a bakkie. Limpopo workshops and Gauteng service centres often keep one beside the oil store.
Fit an air filter and regulator, and match your compressor to the 300 L/min maximum air consumption.
What’s in the box
- QBK15 air diaphragm pump
- Ask us what fittings and accessories are included with your order
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Below that, the fee follows total order weight: this item ships at 5.5 kg, so expect R550 for loads up to 30 kg. Ask us for the warranty terms on this model.
Questions about this product
What compressor do I need for the QBK15?
The QBK15 uses up to 300 L/min of compressed air at full flow, so size your compressor to deliver at least that at working pressure. A smaller compressor still runs the pump but limits its flow. Fit an air filter and a regulator so you can throttle flow and pressure, and keep air pressure at or below 6.9 bar.
Can the aluminium QBK15 pump diesel and oil?
Yes, aluminium suits diesel, oils and many water-based liquids, and it is lighter and cheaper than stainless steel. Avoid strong acids and caustic liquids, which attack aluminium. For those, choose the polypropylene or stainless steel version. Tell us the liquid and we will confirm the right body before you order.
Do you deliver this pump to Mbombela?
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 5.5 kg shipping weight this falls in the up to 30 kg band (R550). Delivery is free once your order reaches R20,000 (VAT incl.).
Nationwide delivery from Polokwane
Delivered to all nine provinces in 1 to 3 days
We deliver the QBK15 Air Diaphragm Pump, Aluminium Body, 20 L/min, 1/2" Ports with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, Thohoyandou, Pietermaritzburg, Welkom, Secunda, Mahikeng and George, and to farms, mines and sites in between. This item ships in the R550 delivery band (up to 30 kg). Orders of R20,000 or more deliver free with code KH027.
