QBK25 Air Diaphragm Pump, Aluminium Body, 100 L/min, 1″ Ports

Description

Overview

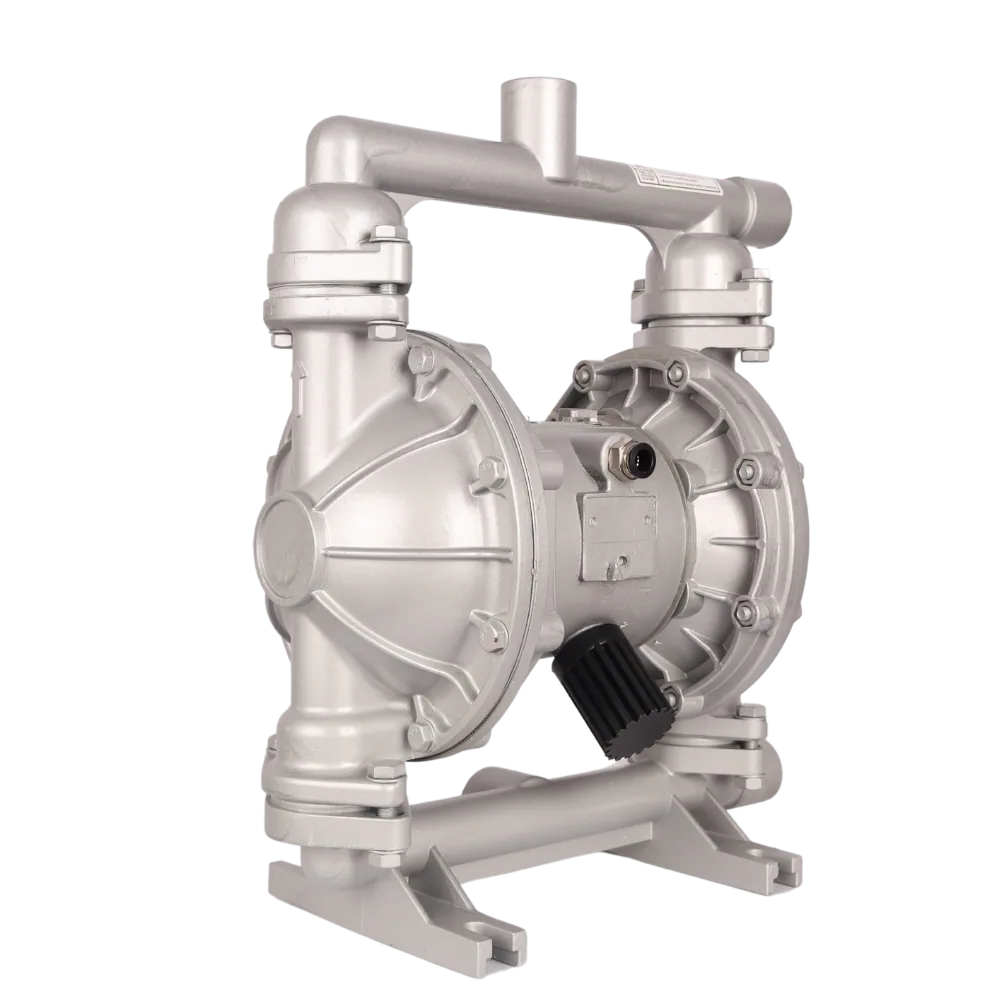

The QBK25 aluminium air-operated double diaphragm pump moves up to 100 L/min through 1″ ports, powered by compressed air alone. It self-primes to a 7 m suction lift, delivers up to 6.9 bar, passes solids up to 2.5 mm and carries PTFE (Teflon) diaphragms.

The aluminium body is the cost-effective choice for fuels, oils and water-based liquids, and it keeps the pump light enough to move by hand. For acids or caustic liquids, choose the polypropylene or stainless steel versions instead. Because there is no electric motor, you can run it wherever you have an air line, and it keeps pumping against a closed outlet. Browse more diaphragm pumps, or compare the QBK25 polypropylene diaphragm pump and the QBK25 and QBK40 seal kit.

Key features

• Flow of up to 100 L/min through 1″ inlet and outlet
• Maximum discharge pressure of 6.9 bar, suction lift of 7 m
• Self-priming, with solids up to 2.5 mm and viscosity up to 10,000 cP
• Air consumption of up to 600 L/min, no electrical supply
• Aluminium body with PTFE diaphragms
• 1″ ports take standard hose for drum and IBC work

Where it works

A 1″ pump is the everyday workhorse for emptying drums and IBCs, moving product between tanks and cleaning up sumps and bunds. Workshops, packing plants and farm stores run it from a normal workshop compressor. Fuel and lubricant depots in Mpumalanga and KZN use the aluminium version for transfer from drums.

Fit an air filter and regulator, and match your compressor to the 600 L/min maximum air consumption.

What’s in the box

• QBK25 air diaphragm pump
• Ask us what fittings and accessories are included with your order

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Below that, the fee follows total order weight: this item ships at 18.0 kg, so expect R550 for loads up to 30 kg. Ask us for the warranty terms on this model.
