QBK15 Diaphragm Pump Seal Kit, Complete Service Set

Description

Overview

This QBK15 diaphragm pump seal kit is the complete service set for the QBK15 air-operated diaphragm pump, with the wear parts you need to rebuild the wet end. Diaphragms, balls, ball seats and seals wear first, and replacing them brings back flow and suction lift.

The kit suits QBK15 pumps in aluminium, polypropylene and stainless steel bodies. Order it with the pump to keep a spare on the shelf, or when output drops, the pump struggles to prime, or liquid shows up in the exhaust air. See the QBK15 aluminium diaphragm pump and the QBK15 polypropylene diaphragm pump, or browse more diaphragm pumps.

Key features

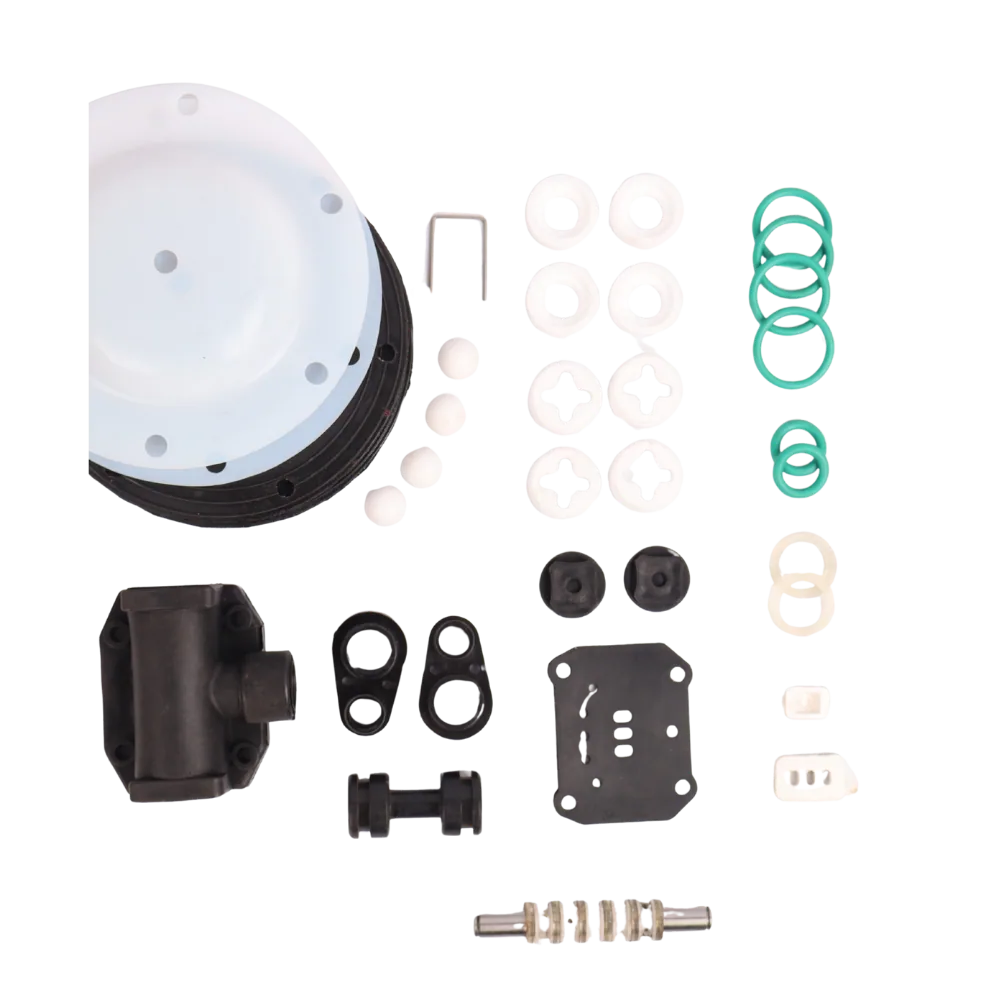

• Two diaphragms and two diaphragm seals (Viton)
• Two further Viton seals, four balls and four ball seats
• Two positioning sleeves and five V-ring seals
• Service kit code S/A-QBK15
• Fits QBK15 pumps in aluminium, polypropylene and stainless steel bodies
• Accessories may vary, so check the contents on delivery

Where it works

Maintenance teams keep a kit like this on the shelf for pumps that earn their keep every day. Workshops in Gauteng and Limpopo rebuild drum-transfer pumps between jobs, and plants running chemical transfer cannot afford a day without the pump. A split diaphragm usually shows as liquid blowing out of the exhaust, and swapping the parts early protects the air line and the product.

Rebuild with clean hands on a clean bench, check the pump housings for scoring and fit all parts in the correct order.

What’s in the box

• Diaphragm pump seal kit as listed above

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). Below that, the fee follows total order weight: this item ships at 1.0 kg, so expect R550 for loads up to 30 kg. Ask us for the warranty terms on this model.
