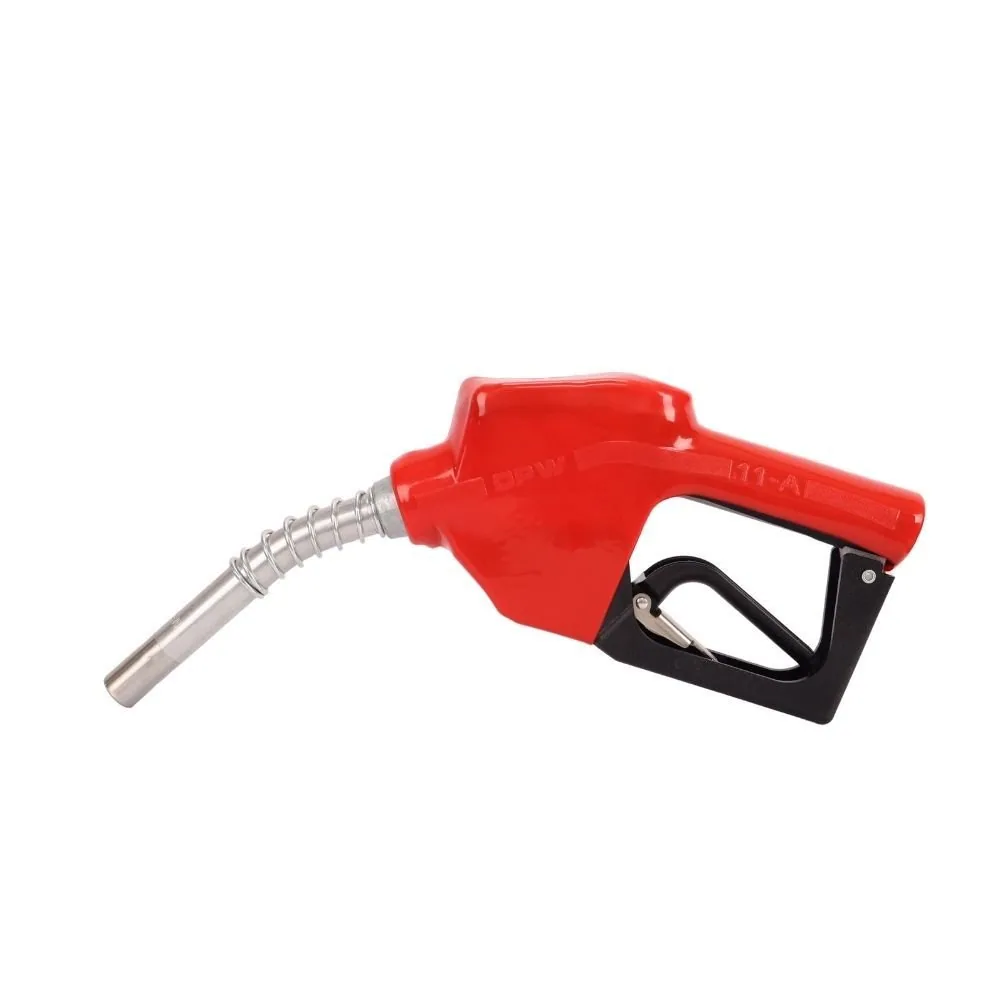

Red heavy-duty 16 mm automatic fuel nozzle, 3/4-inch BSP inlet

Heavy-Duty Auto Fuel Nozzle, 16 mm Spout, 3/4-Inch BSP

Name: Heavy-Duty Auto Fuel Nozzle, 16 mm Spout, 3/4-Inch BSP
SKU: KMN-FUEL-0177
Price: 1597.05 ZAR
Availability: InStock

SKU KMN-FUEL-0177

A heavy-duty 16 mm automatic fuel nozzle with 3/4-inch BSP inlet and 60 L/min flow, for depots and forecourts across South Africa.

R1 597,05

Automatic shut-off at full tank
16 mm spout, 3/4-inch BSP inlet
0 to 60 L/min, aluminium body
1.1 kg with a taller frame for gloved hands

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	0 to 60 L/min
Accuracy	N/A (dispensing nozzle, not a meter)
Connection size	3/4-inch BSP inlet, 16 mm spout
Max pressure	On request
Material	Aluminium
Display type	N/A (no display)
Operation	Automatic auto-stop
Net weight	1.1 kg
Shipping weight	1.3 kg
Dimensions	400 × 55 × 220 mm

Description

Overview

This heavy-duty 16 mm auto fuel nozzle is the forecourt-style option for sites that fill vehicles all day. It has a 3/4-inch BSP inlet, a 16 mm spout and a flow range of 0 to 60 L/min, and it shuts off by itself when the tank is full. The frame is taller than our compact nozzles at 220 mm, which gives more room for a gloved hand.

Key features

Automatic shut-off to prevent overfilling
3/4-inch BSP inlet that screws to standard hose tails and swivels
16 mm spout for light-vehicle filler necks
Flow range of 0 to 60 L/min
Aluminium body at 1.1 kg

Where it works

Use it on depot pumps, fuel bowsers and small forecourts where vehicles queue: municipal fleets in Gauteng, transport yards along the N1 and farm co-ops in KZN. It is the same flow range as the compact 16 mm nozzle, with a larger frame for heavier daily use. See the 1-inch auto nozzle if your pump can deliver more, or the cast aluminium 1-inch nozzle for bulk filling. The whole fuel nozzles range is online.

What’s in the box

1 x heavy-duty 16 mm automatic fuel nozzle

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 1.3 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.

Questions about this product

How is this different from the compact 16 mm nozzle?

The spout, inlet and flow range are the same: 16 mm, 3/4-inch and 0 to 60 L/min. This model has a taller 220 mm frame and is priced as the heavier-duty option for sites with constant daily use. For occasional farm fills, the compact nozzle is cheaper and does the same work.

What does the 3/4-inch BSP inlet connect to?

It screws onto a 3/4-inch BSP male thread, such as a hose swivel or fitting on a bowser line. Check the thread type on your hose before ordering, because NPT and BSP are close but will not seal properly. Send us a photo and we will confirm.

Do you deliver to Cape Town and the Western Cape?

Yes. Our own trucks deliver from Polokwane to all nine provinces, including the Western Cape, in 1 to 3 days. At 1.3 kg the nozzle is in the up to 30 kg band at R550 by itself, and delivery is free from R20,000 including VAT.
