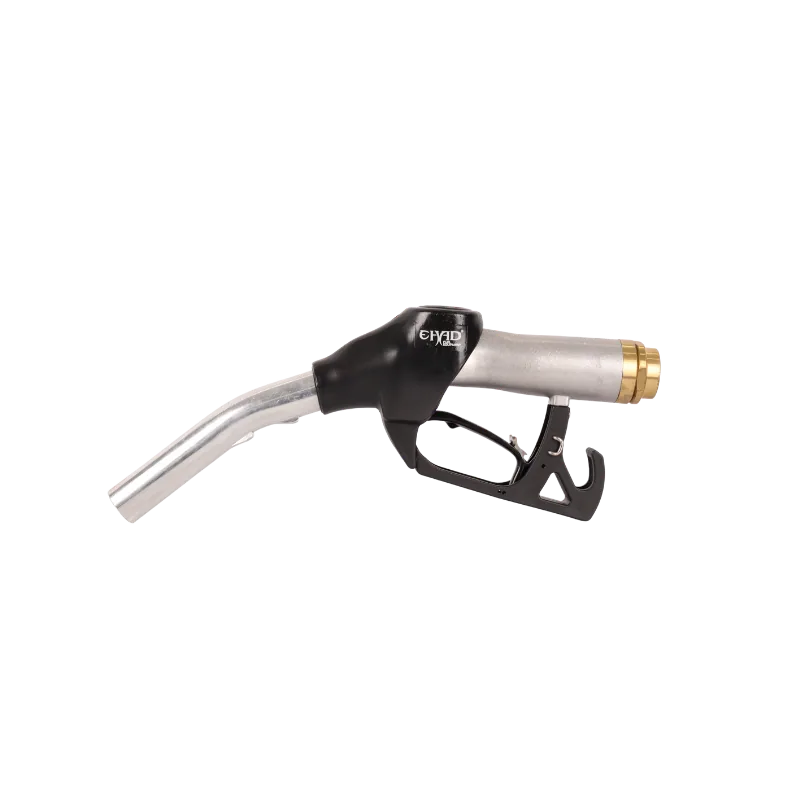

Black 1-inch cast aluminium automatic fuel nozzle with swivel, 120 L/min

Cast Aluminium Auto Fuel Nozzle, 1-Inch Spout, 120 L/min

Name: Cast Aluminium Auto Fuel Nozzle, 1-Inch Spout, 120 L/min
SKU: KMN-FUEL-0166
Price: 2031.75 ZAR
Availability: InStock

SKU KMN-FUEL-0166

A 1-inch cast aluminium auto-stop fuel nozzle with swivel for bulk diesel filling at farms, mines and fleet depots, delivered to every South African province.

R2 031,75

Auto-stop prevents overfilling
Swivel included, no holder fitted
0 to 120 L/min through a 1-inch spout
Cast aluminium body with Viton and NBR seals

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow range	0 to 120 L/min
Accuracy	N/A (dispensing nozzle, not a meter)
Connection size	1-inch inlet, 1-inch spout
Max pressure	0.18 MPa (1.8 bar) working pressure
Material	Cast aluminium body, Viton/NBR seals, stainless steel shaft
Display type	N/A (no display)
Operation	Automatic auto-stop
Swivel	Included
Net weight	1.5 kg
Shipping weight	1.7 kg
Dimensions	420 × 50 × 170 mm

Description

Overview

This is a plain 1-inch automatic diesel nozzle: it fills at up to 120 L/min and cuts off when the tank is full. Compared with the magnetic-holder version, it has no holder fitted, which is the right choice if your pump or bowser already has a hook or boot. The body is cast aluminium on a stainless steel shaft, with Viton and NBR seals.

Key features

Automatic shut-off to prevent spillage and overfilling
Swivel at the inlet reduces hose twist
Cast aluminium body at only 1.5 kg
Stainless steel shaft and Viton/NBR seals
Working pressure of 0.18 MPa (1.8 bar)

Where it works

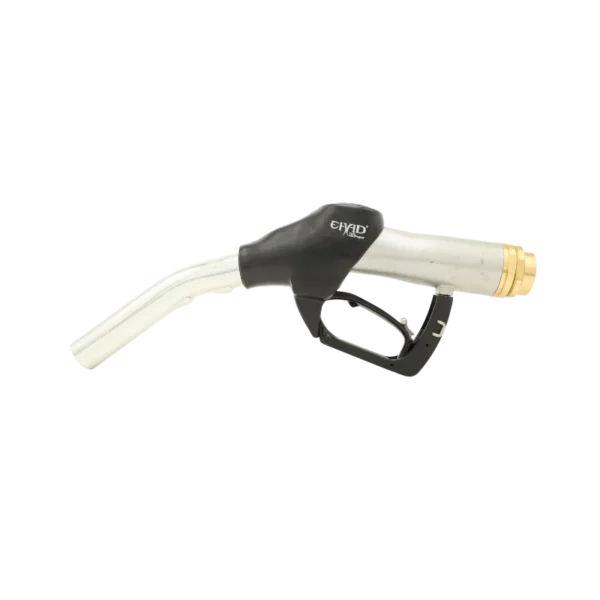

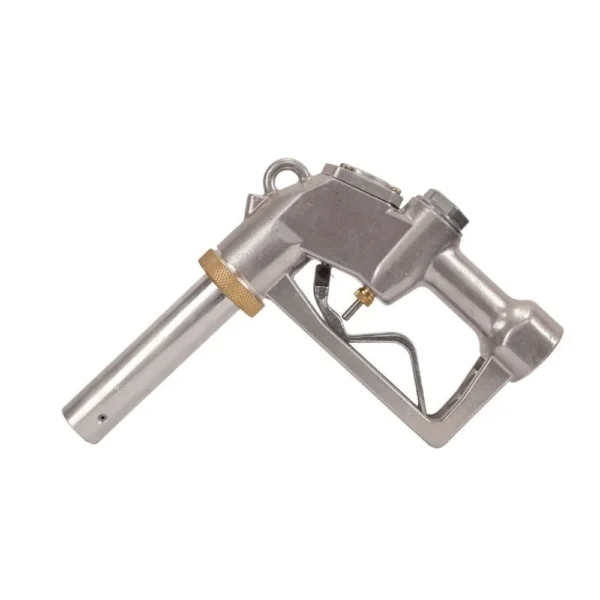

Use it wherever a 1 inch automatic diesel nozzle makes filling quicker: tractors and harvesters on Free State farms, tipper trucks on Limpopo road jobs, and generator tanks at remote sites. It also replaces worn nozzles on tank trailers and fuel bowsers. Compare other sizes in our fuel nozzles range, or look at the 1-inch nozzle with magnetic holder and the MD-200 bulk nozzle if you need more flow.

What’s in the box

1 x 1-inch automatic fuel nozzle with swivel

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more ship free. At a shipping weight of 1.7 kg this nozzle sits in the lowest delivery band. Ask us for the warranty terms on this model.

Questions about this product

What is the difference between this and the magnetic-holder nozzle?

The flow, spout size, seals and body are the same. The only difference is the magnetic holder, which this model does not have. Choose this one if your pump already has a nozzle boot or hook, and the magnetic version if you want to park the nozzle on a steel panel.

Can I use it on a bakkie diesel tank?

It will fit, but it is built for bulk filling at up to 120 L/min. A bakkie filler neck and a small 12V pump will not reach that flow, and the nozzle is heavy and long for the job. A 16 mm or 19 mm nozzle is easier to handle for light vehicles.

Do you deliver to Rustenburg?

Yes. Our own trucks run from Polokwane to all nine provinces, including North West, in 1 to 3 days. At 1.7 kg this nozzle falls in the up to 30 kg band at R550 when ordered alone, and delivery is free once your order reaches R20,000 including VAT.
