FM150 1″ Oval Gear Mechanical Flowmeter, ±0.5%, 20 to 120 L/min

Description

Overview

The FM150 is a 1″ oval gear flowmeter with a mechanical roller counter. Two meshing oval gears move a fixed volume of fluid with each turn, which gives ±0.5% accuracy across 20 to 120 L/min. It suits diesel, paraffin and lubricating oils, and the body is aluminium and plastic.

Positive-displacement measurement is the reason to pick this meter over a turbine. It reads accurately at lower flow and with thicker fluids, so one meter can serve a diesel line one week and an oil drum the next. The counter is mechanical, so nothing needs charging. Supplier pressure data is limited, so check with us if your pump runs above 3 bar. As with any meter, fit a strainer or filter ahead of it, because grit is the main enemy of the gears.

Key features

• Oval gear positive-displacement element
• ±0.5% accuracy
• 20 to 120 L/min flow range
• 1″ connection
• Mechanical roller counter with batch and total

Where it works

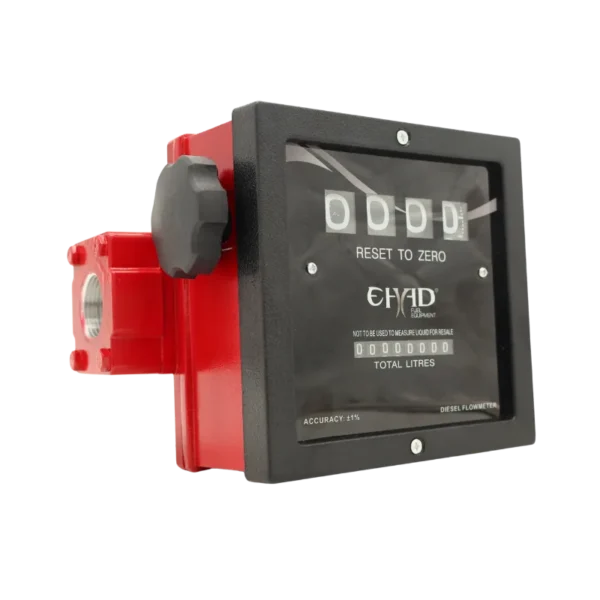

Choose this oval gear flowmeter for transport workshops in Gauteng that issue engine oil and diesel, for plant-hire yards that bill customers for fuel, and for farms in the Free State and Mpumalanga that want a tighter count on expensive inputs. For bigger lines step up to the FM900 1.5″ diesel flowmeter, or compare the cheaper FM120 mechanical flowmeter. See all fuel flowmeters.

What’s in the box

• 1 × FM150 oval gear mechanical flowmeter

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces, normally in 1 to 3 days. This item ships at 2.6 kg, which puts it in the up-to-30 kg band at R550. Orders of R20,000 or more (VAT incl.) travel free, so it pays to combine it with a bigger order. Ask us for the warranty terms on this model.
