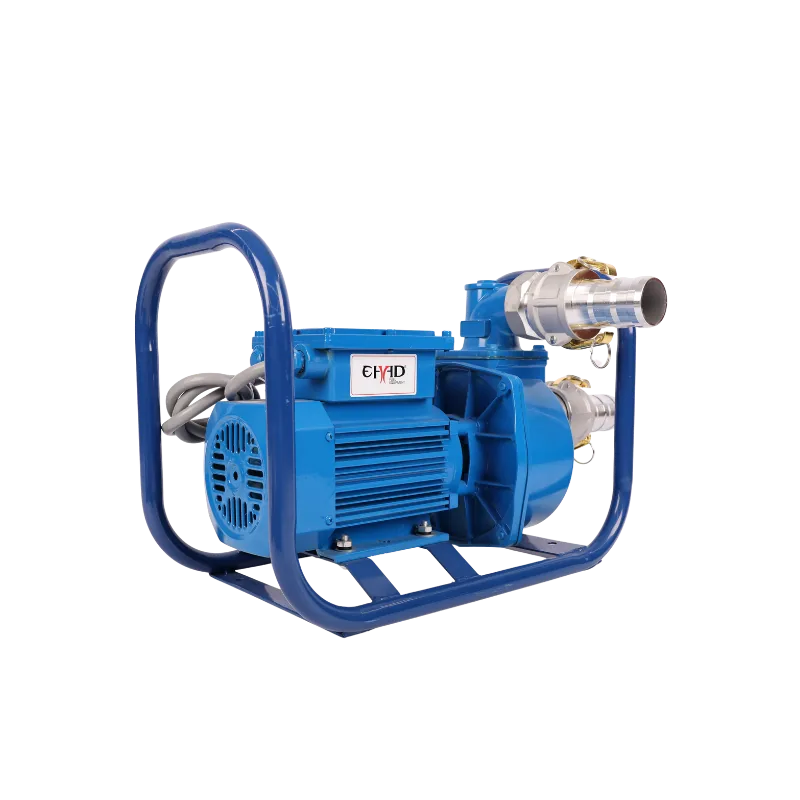

ExBlue 24V Explosion-Proof Transfer Pump, 180 L/min, 50 mm Ports
SKU KMN-FUEL-0292
A 24V DC explosion-proof transfer pump rated at 180 L/min, built for truck-mounted bowsers and heavy plant fuelling across South Africa.
R8 457,75
- 24V DC, matched to truck and heavy plant electrics
- 180 L/min through 50 mm ports
- Explosion-proof build for diesel, paraffin, light oil and petrol
- 15 to 20 minute duty periods, 2 m suction lift
Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details
Specifications
| Flow rate | 180 L/min |
|---|---|
| Max head / pressure | 10 to 15 m head |
| Voltage / phase | 24V DC |
| Power | 1.5 kW (as stated by the supplier, confirm before wiring) |
| Inlet / outlet | 2 inch (50 mm) |
| Self-priming | Suction lift 2 m |
| Duty cycle | 15 to 20 minutes |
| Fluid compatibility | Diesel, light oil, paraffin, petrol |
| Net weight | 13.2 kg |
| Shipping weight | 17.8 kg |
| Dimensions | 480 × 280 × 320 mm |
Description
Overview
The ExBlue 24V is an explosion-proof DC transfer pump that delivers up to 180 L/min of diesel, light oil, paraffin or petrol. It is wired for 24V systems, which is what most trucks, loaders and mine vehicles carry. Compared with the 12V version, it draws half the current for the same job, so cable and fuse sizing is easier.
Running a 12V vehicle? Choose the ExBlue 12V explosion-proof pump. For a mains-powered skid, see the Cube-Smart 220V fuel pump kit. All options sit in our fuel transfer pumps range.
Key features
- Explosion-proof construction for fuels that give off vapour
- 180 L/min rated flow through 50 mm inlet and outlet
- Head of 10 to 15 m, suction lift of 2 m
- Duty cycle of 15 to 20 minutes, then let it cool
- Supplier lists the motor at 1.5 kW, so size the cable and fuse accordingly
Where it works
Mpumalanga coal mines and Northern Cape mining operations use 24V pumps on service trucks to refuel excavators and haul trucks in the pit. Civil contractors in Limpopo and Gauteng fit a 24V explosion proof fuel pump to fuel trailers, and municipal depots use them on refuse truck fuel lines. It also suits any remote site with a 24V battery bank.
What’s in the box
- ExBlue 24V explosion-proof transfer pump
Delivery and warranty
Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This pump ships at 17.8 kg, which falls in the up to 30 kg band at R550. Ask us for the warranty terms on this model.
Questions about this product
Is this pump for 24V trucks only?
It is a 24V DC pump, so it suits 24V truck systems, 24V battery banks and mine vehicles. Do not connect it to 12V. If your bowser runs on a 12V bakkie or tractor battery, the ExBlue 12V version with the same flow is the right pick.
How long can I run it at a time?
The duty cycle is 15 to 20 minutes, so pump in those spells and give the motor time to cool before the next transfer. Running it flat out for an hour will overheat it. For all-day filling, a continuous-duty 220V or 380V pump is a better fit.
Can you deliver to a mine near Witbank?
Yes, we deliver to Mpumalanga and all other provinces with our own trucks in 1 to 3 days. This pump ships at 17.8 kg, so delivery is R550 in the up to 30 kg band. Orders of R20,000 or more (VAT incl.) are free.
