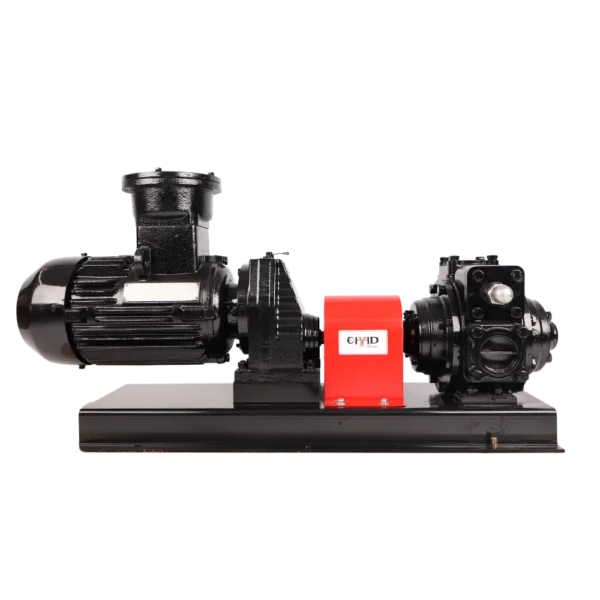

RXB-300 explosion-proof fuel transfer pump on frame, 300 L/min, 50 mm ports

RXB-300 Explosion-Proof Fuel Pump, 220V 2.2 kW, 300 L/min

Name: RXB-300 Explosion-Proof Fuel Pump, 220V 2.2 kW, 300 L/min
SKU: KMN-FUEL-0300
Price: 18890.55 ZAR
Availability: InStock

SKU KMN-FUEL-0300

A 220V explosion-proof vane pump moving up to 300 L/min of petrol, diesel or paraffin, for depots and tanker offloading across South Africa.

R18 890,55

300 L/min (about 18 m3/h) through 50 mm ports
220V AC explosion-proof motor, 2.2 kW
Head of 25 m and 7 m suction lift
Cast iron body for petrol, diesel, paraffin and solvents

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	300 L/min (about 18 m3/h)
Max head / pressure	25 m head
Voltage / phase	220V AC
Power	2.2 kW
Inlet / outlet	50 mm
Self-priming	Suction lift 7 m
Duty cycle	On request
Fluid compatibility	Petrol, diesel, paraffin, solvents
Body material	Cast iron
Net weight	85 kg
Shipping weight	89 kg
Dimensions	810 × 380 × 510 mm

Description

Overview

The RXB-300 is the high-flow model in the RXB explosion-proof range, moving 300 L/min of petrol, diesel, paraffin or solvents from a 220V supply. Its cast iron vane pump and explosion-proof motor suit tanker offloading and bulk transfers, where a smaller pump would keep the truck waiting. Ports are 50 mm, and it lifts fuel up to 7 m.

For a lighter job, the RXB-150 explosion-proof pump does 150 L/min. For diesel-only bulk transfers, see the 600 L/min centrifugal pump. The full fuel transfer pumps range is online.

Key features

Explosion-proof motor with an anti-static build
Bypass valve and inlet strainer
300 L/min flow rate (about 18 m3/h)
Max head 25 m, suction lift 7 m
50 mm inlet and outlet
2.2 kW motor rating

Where it works

Fuel depots and wholesale distributors in Gauteng and KZN use a pump of this size to offload road tankers into bulk tanks. Mpumalanga coal mines and Northern Cape operations fill site bowsers from it, and large transport depots and municipalities use it for fast truck fills. It is a true explosion proof fuel pump for volatile products.

What’s in the box

RXB-300 explosion-proof pump with 220V motor

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Delivery is free on orders of R20,000 or more (VAT incl.). This pump ships at 89 kg, which falls in the 60 to 100 kg band at R1,450. Ask us for the warranty terms on this model.

Questions about this product

How fast will it offload a fuel tanker?

At about 300 L/min, a 10,000 litre compartment takes roughly 35 minutes, depending on your hose length, lift and filter losses. A smaller pump would take twice as long. Keep the suction line short and straight, and use 50 mm hose throughout to get the best flow.

What generator size does it need?

The pump has a 2.2 kW motor on 220V, so size the generator or supply for 2.2 kW plus start-up surge, which is often two to three times the running load. If your supply is marginal, ask us or an electrician to check it before you order the pump.

What does delivery to Durban cost?

The pump ships at 89 kg, which falls in the 60 to 100 kg band, so delivery is R1,450 anywhere in South Africa, including Durban. We deliver with our own trucks in 1 to 3 days. Orders of R20,000 or more (VAT incl.) go free.

Nationwide delivery from Polokwane

Delivered to all nine provinces in 1 to 3 days

We deliver the RXB-300 Explosion-Proof Fuel Pump, 220V 2.2 kW, 300 L/min with our own trucks to Johannesburg, Pretoria, Cape Town, Durban, Gqeberha, Bloemfontein, Polokwane, Mbombela, East London, Upington, Mokopane, George, Klerksdorp and Tzaneen, and to farms, mines and sites in between. This item ships in the R1,450 delivery band (60 to 100 kg). Orders of R20,000 or more deliver free with code KH027.
