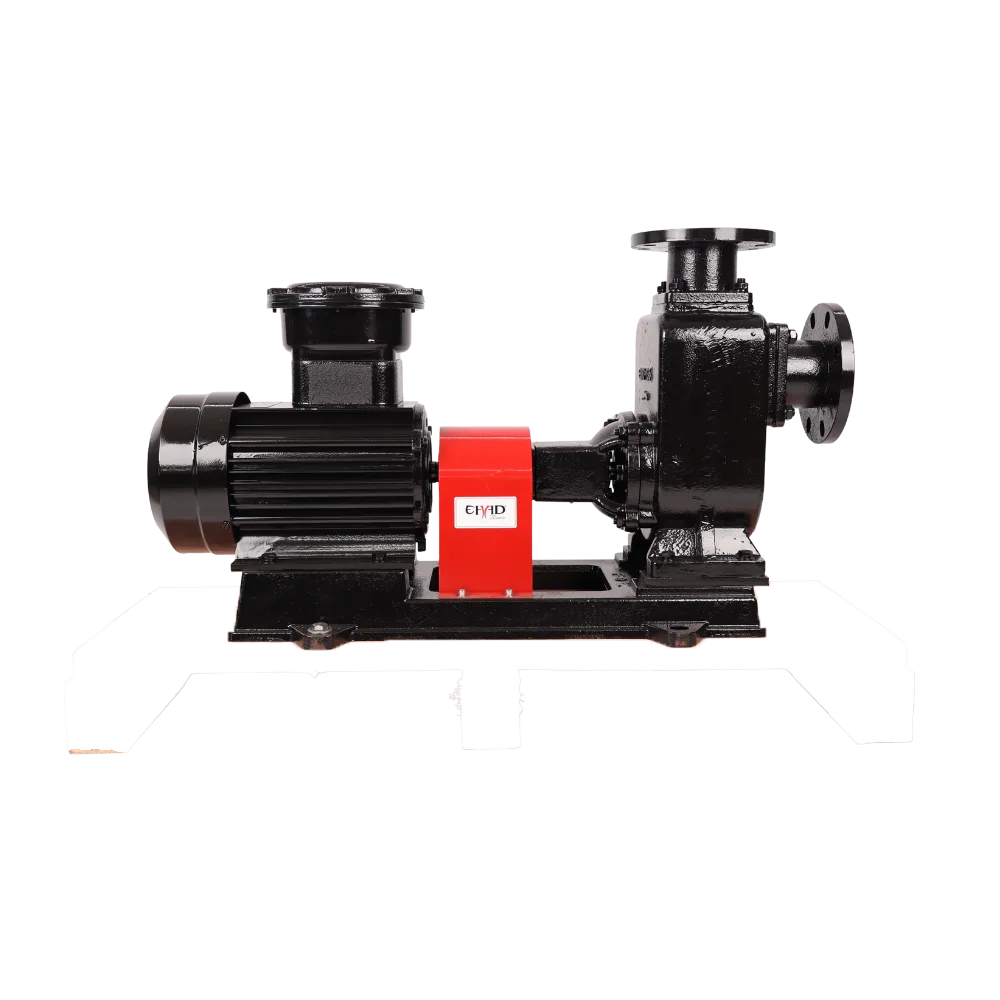

BT-600 Centrifugal Fuel Pump, 600 L/min, 4 kW 380V

Description

Overview

The BT-600 centrifugal fuel pump is a transfer unit rated at 600 L/min. A 4 kW, 380V 3-phase motor turning at 2900 rpm drives a cast-iron pump with 3″ (80 mm) BSP female ports, a 17 m maximum head and a 4 m suction lift.

It is built for continuous (S1) duty with flooded suction, so mount it low on the tank. The motor is IP55 with class F insulation, drawing 8.1 A, and the supplier marks it Ex db IIB T4 Gb. Choose the 1000 L/min centrifugal fuel transfer pump when you need 1000 L/min, and see the Box Pump PLUS 80 for smaller dispensing jobs. The rest of our fuel transfer pumps range covers every scale.

Key features

• 600 L/min flow, 17 m maximum head
• 4 kW motor, 380V, 3-phase, 50 Hz, 8.1 A
• 3″ (80 mm) BSP female inlet and outlet
• Cast iron pump body
• IP55 motor protection, insulation class F
• Continuous (S1) duty, 2900 rpm

Where it works

Mpumalanga coal mines and Northern Cape iron-ore sites use a bt-600 centrifugal fuel pump to fuel haul trucks from bulk storage, and tanker depots in Gauteng use it for fast loading. Large farms in the Free State and North West move diesel from road tankers to storage tanks with it. Because it is a centrifugal pump, the line should flood. This pump is heavy and ships by quotation, so tell us if you have a forklift or crane for offloading, and we will plan the delivery. Fit a strainer upstream and a gate valve on the suction side to protect the impeller and make servicing easier.

What’s in the box

• BT-600 centrifugal fuel transfer pump with 4 kW motor

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 246 kg. That is over 100 kg, so delivery is quoted for your site. Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.
