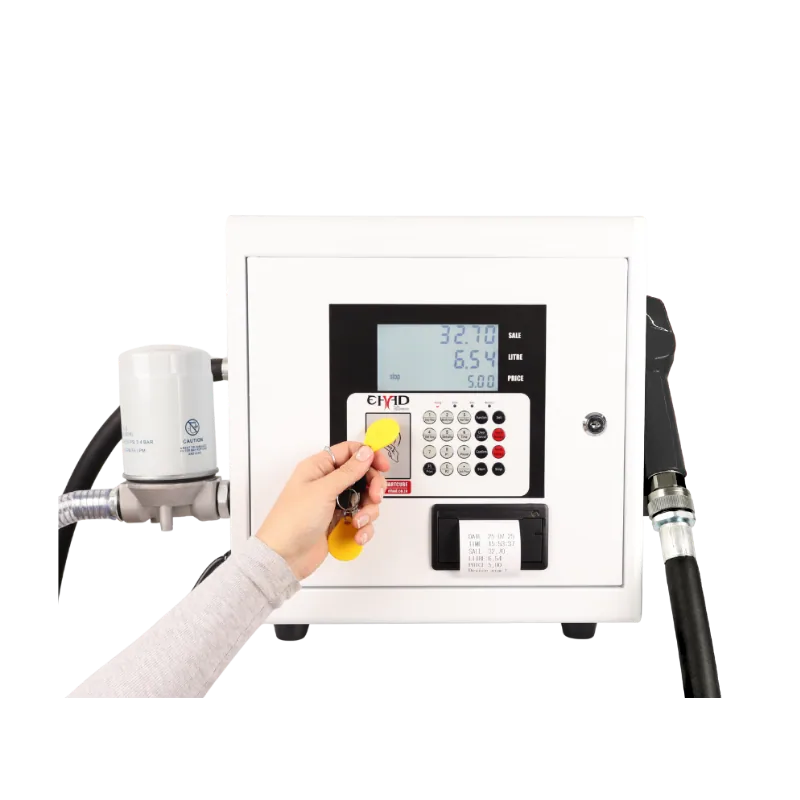

Cube-Smart PLUS 220V fuel pump kit with DTP80 pump, GL3 filter, meter and 1 inch nozzle

Cube-Smart PLUS 220V Fuel Pump Kit, 60 L/min, 1″ Nozzle, Filter

Name: Cube-Smart PLUS 220V Fuel Pump Kit, 60 L/min, 1" Nozzle, Filter
SKU: KMN-FUEL-0253
Price: 13041.00 ZAR
Availability: InStock

SKU KMN-FUEL-0253

A 220V fuel pump kit with a DTP80 pump, pulser meter, 1" auto nozzle and GL3 filter, delivering 60 L/min across South Africa.

R13 041,00

DTP80 220V vane pump, 60 L/min
K-600-P pulser meter, ±0.5% accuracy
1″ automatic nozzle and GL3 filter with housing
2.5 m suction and 4 m delivery hose

Delivered by our own trucks in 1 to 3 days. R550 / R950 / R1,450 by order weight. FREE on orders of R20,000 or more with code KH027. Delivery details

Specifications

Flow rate	60 L/min
Max head / pressure	10 m head, 0.3 MPa
Voltage / phase	220 V AC
Power	450 W (DTP80 pump)
Inlet / outlet	1" nozzle; hoses 2.5 m suction, 4 m delivery
Self-priming	Yes, suction lift 3 m
Duty cycle	30 min
Fluid compatibility	Diesel and paraffin, not petrol
Meter	K-600-P pulser, ±0.5%, 8-digit totaliser, 5-digit unit price
Filter	GL3 filter and housing
Protection	IP55
Net weight	28 kg
Shipping weight	30 kg
Dimensions	440 × 390 × 450 mm

Description

Overview

The Cube-Smart PLUS 220V kit is the higher-flow, filtered version of the Cube-Smart range. A DTP80 vane pump, a K-600-P pulser meter, a 1″ automatic nozzle, a GL3 filter with housing and two hoses (2.5 m suction, 4 m delivery) deliver 60 L/min.

The GL3 filter catches grit before it reaches your engines, and the 1″ nozzle lets fuel flow freely. The meter has an 8-digit totaliser and a 5-digit unit price display with ±0.5% accuracy. For a lower flow at a smaller outlay, see the Cube-Smart 220V fuel pump kit. The Cube-Smart 12V fuel pump kit runs on 12V. Our fuel transfer pumps range lists more options.

Key features

DTP80 220V vane pump, self-priming
60 L/min, 0.3 MPa maximum pressure
K-600-P pulser meter, ±0.5% accuracy
GL3 filter with housing
1″ automatic nozzle
IP55 rated, 30 minute duty cycle

Where it works

Where trucks queue for diesel, 60 L/min means shorter waits. Haulage yards in Gauteng and on the N1 corridor, mine workshops in Mpumalanga and large farms in the Free State use this kit to fuel quickly. The built-in filter suits tanks that have sat for a season, and the meter keeps a record of every litre. A cube smart plus 220v kit pays for itself where trucks queue for fuel, because the extra flow and the filter reduce both waiting time and downstream wear. Replace the GL3 filter element on a schedule that matches how dirty your diesel is.

What’s in the box

Cube housing with DTP80 220V vane pump
K-600-P pulser meter
1″ automatic nozzle
GL3 filter with housing
2.5 m suction hose
4 m delivery hose

Delivery and warranty

Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. Orders of R20,000 or more (VAT incl.) ship free. This item ships at 30 kg. That puts it in the R550 delivery band (up to 30 kg). Tell us your town and site access when you order, and we will confirm the delivery day and offloading arrangements with you. Ask us for the warranty terms on this model.

Questions about this product

What does the GL3 filter do on the PLUS kit?

The GL3 filter and housing sit in the line to catch contamination before the fuel reaches your vehicles. Check the element regularly and replace it when flow drops or the fuel looks dirty, because a blocked filter slows the fill and loads the pump.

Is the PLUS kit faster than the standard Cube-Smart 220V kit?

Yes. The PLUS kit is rated at 60 L/min with a DTP80 pump and a 1" nozzle, against 45 L/min with a DTP60 pump and a 3/4" nozzle on the standard 220V kit. Real flow still depends on lift, hose length and fuel temperature.

Do you deliver to Lephalale and Upington?

Yes, Lephalale is covered. Kamano delivers with its own trucks from Polokwane to all nine provinces in 1 to 3 days. At 30 kg this item sits in the R550 band (up to 30 kg). Orders of R20,000 or more (VAT incl.) ship free. Send us your town and we will confirm the delivery day.
